Welcome to our AutoCAD course for Architects.

In it we explain how to use AutoCAD to design and layout a building.

Starting with the basics of setting up a file we walk you through the process step-by-step.

By the end you will be able to complete a design starting with only an aerial photograph of your site.

Along the way we share 24 tips. These will ensure that you are using all the functionality of AutoCAD to make your drawings as fast, professional and shareable as possible.

We have also spread throughout the article some references to other useful articles as we can’t cover everything here.

Contents

Chapter 1 contains the basics of setting up a new file, defining units and using the layers property manager. If you’ve used AutoCAD before you may want to skip this.

Chapter 2 shows you how to find and use aerial images and drawing site conditions.

Chapter 3 is all about now developing your drawing and adding some details.

Chapter 4 is goes a step further and focuses on the detail of the drawing. Discussing things like hatching and working with CAD blocks to speed up your work.

Chapter 5 is the final chapter. It covers plotting and printing your final design.

To help you if you’re looking for a specific tip we listed them below for you.

Good Sources of AutoCAD Information

Throughout the text we’ve listed useful relevant references. However if you are looking for more AutoCAD information generally we would recommend that following sites as good places to start.

1. AutoCAD’s website
2. Shaan Hurley’s Blog – He covers all things design and AutoCAD
3. Lynn Allen’s Blog which also has some great AutoCAD guides
4. Cadalyst covers all things CAD
5. CADTutor lots of great AutoCAD tutorials
6. JTB World

Who Are Acuity Training?

We provide classroom based IT and professional development training. Looking for Adobe InDesign courses or help with Photoshop, we’re here to help.

Oh and we offer AutoCAD training courses in London and Guildford as well. Or if you’d prefer we can come to your offices.

We would also like to acknowledge the work done by Graham Evans of SpecifiedBy.

Specific AutoCAD Tips Included

Chapter 1

Tip 1 – Using AutoCAD Templates
Tip 2 – Increasing Command Line Size
Tip 3 – Restoring A Missing Command Line
Tip 4 – Using The Quick Access Toolbar
Tip 5 – Zoom Command
Tip 6 – Drawing Schemtics
Tip 7 – Layer Filters

Chapter 2

Tip 8 – Finding Aerial Imagery
Tip 9 – Adding Images to a New Layer
Tip 10 – Determining A Known Length

Chapter 3

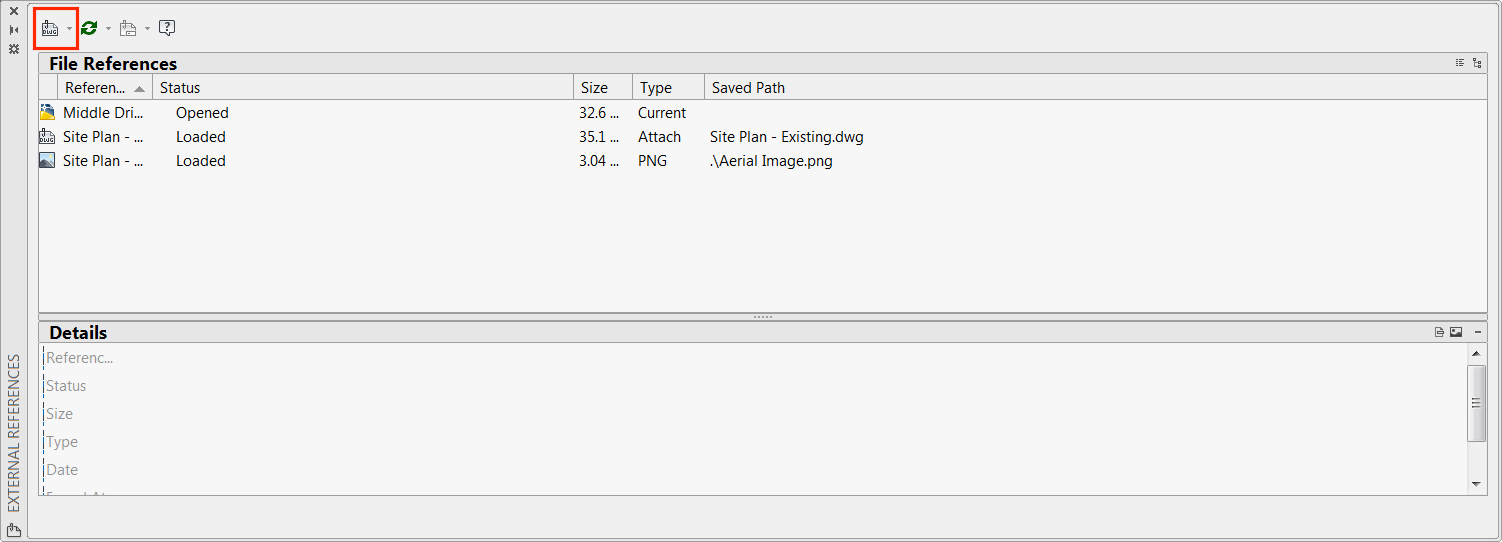

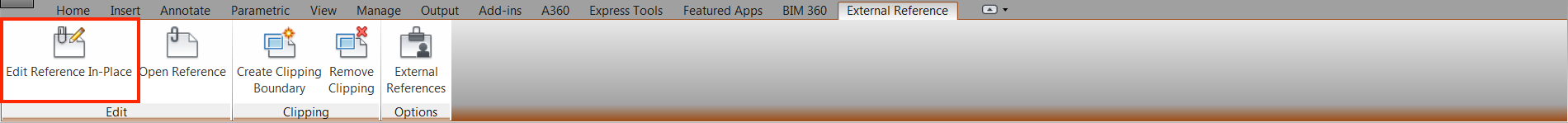

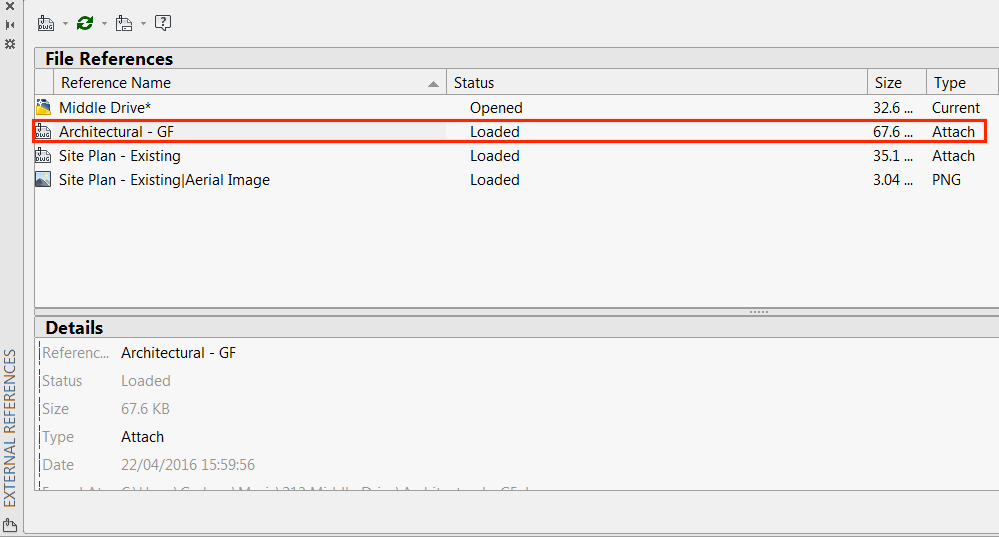

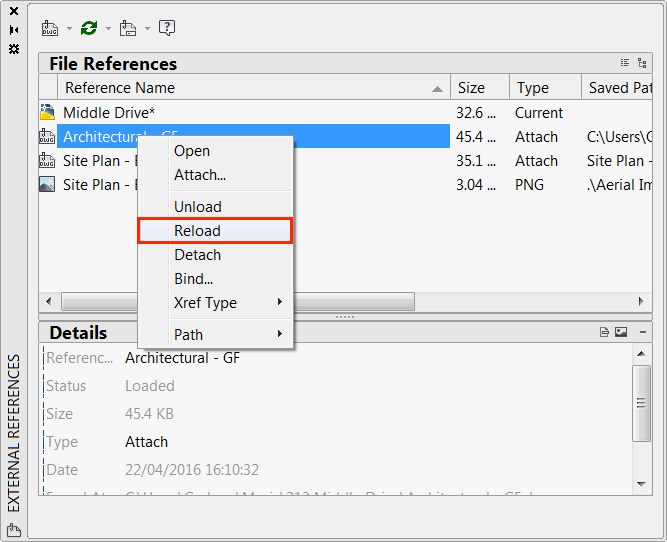

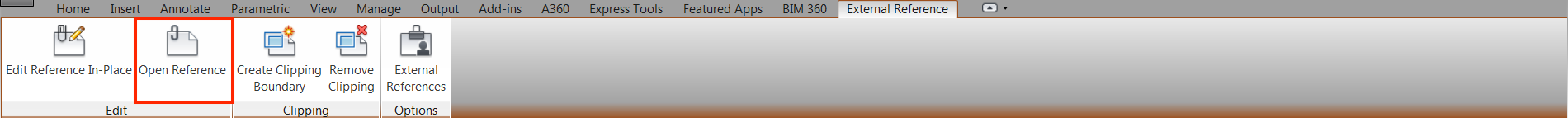

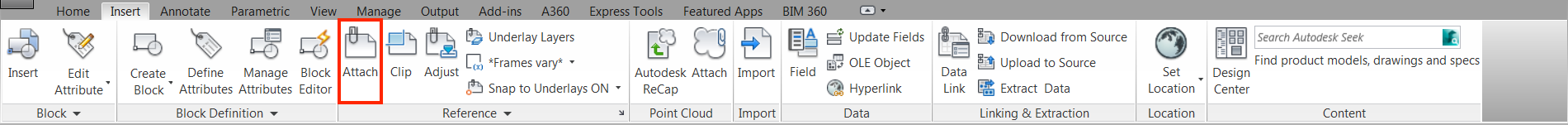

Tip 11 – Updating External References

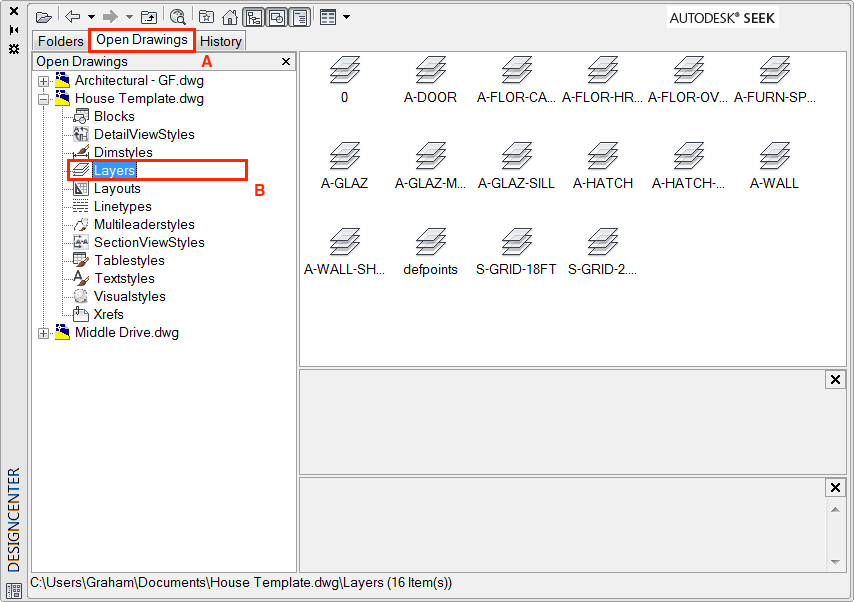

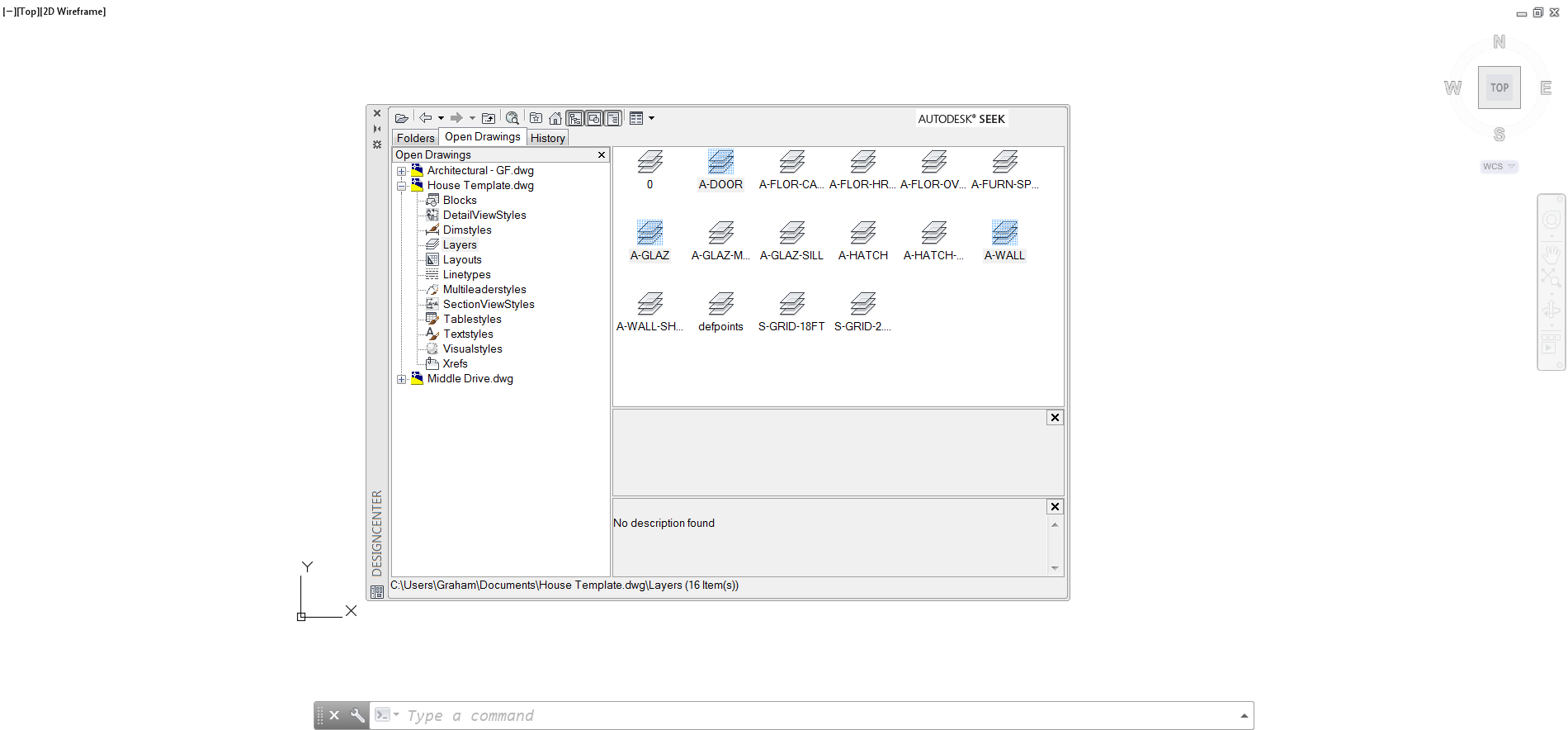

Tip 12 – Sharing Layers Between Drawings

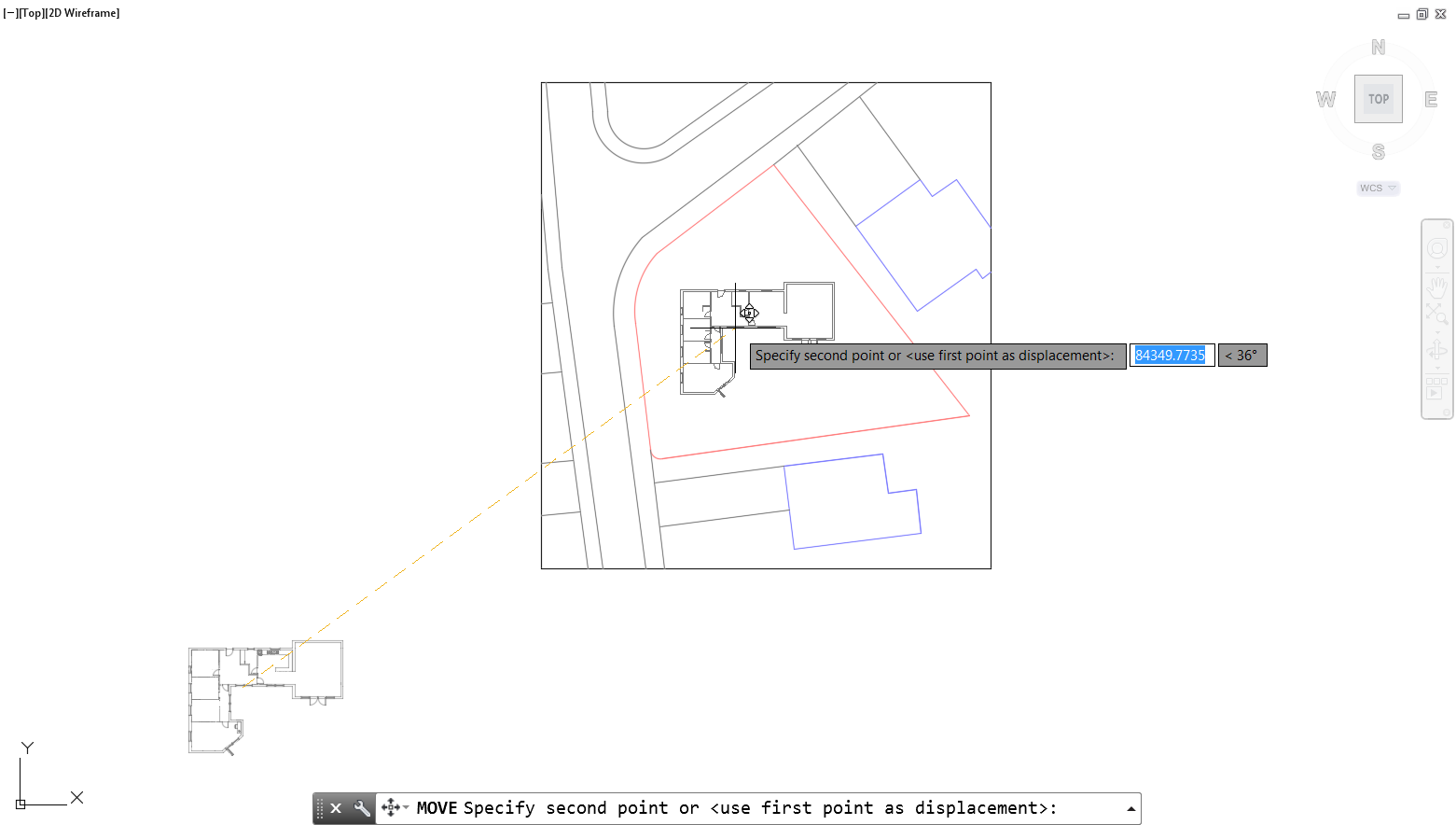

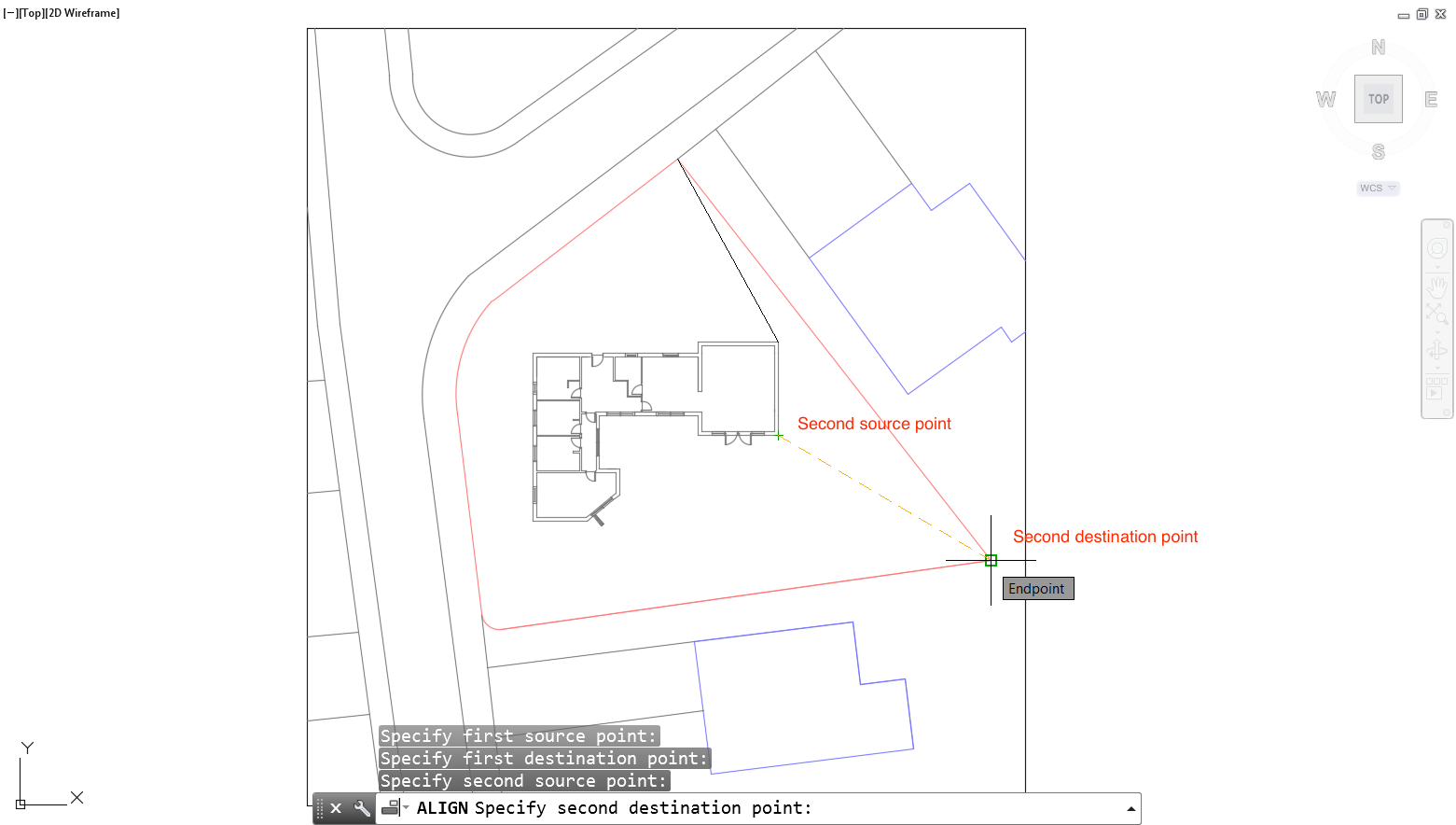

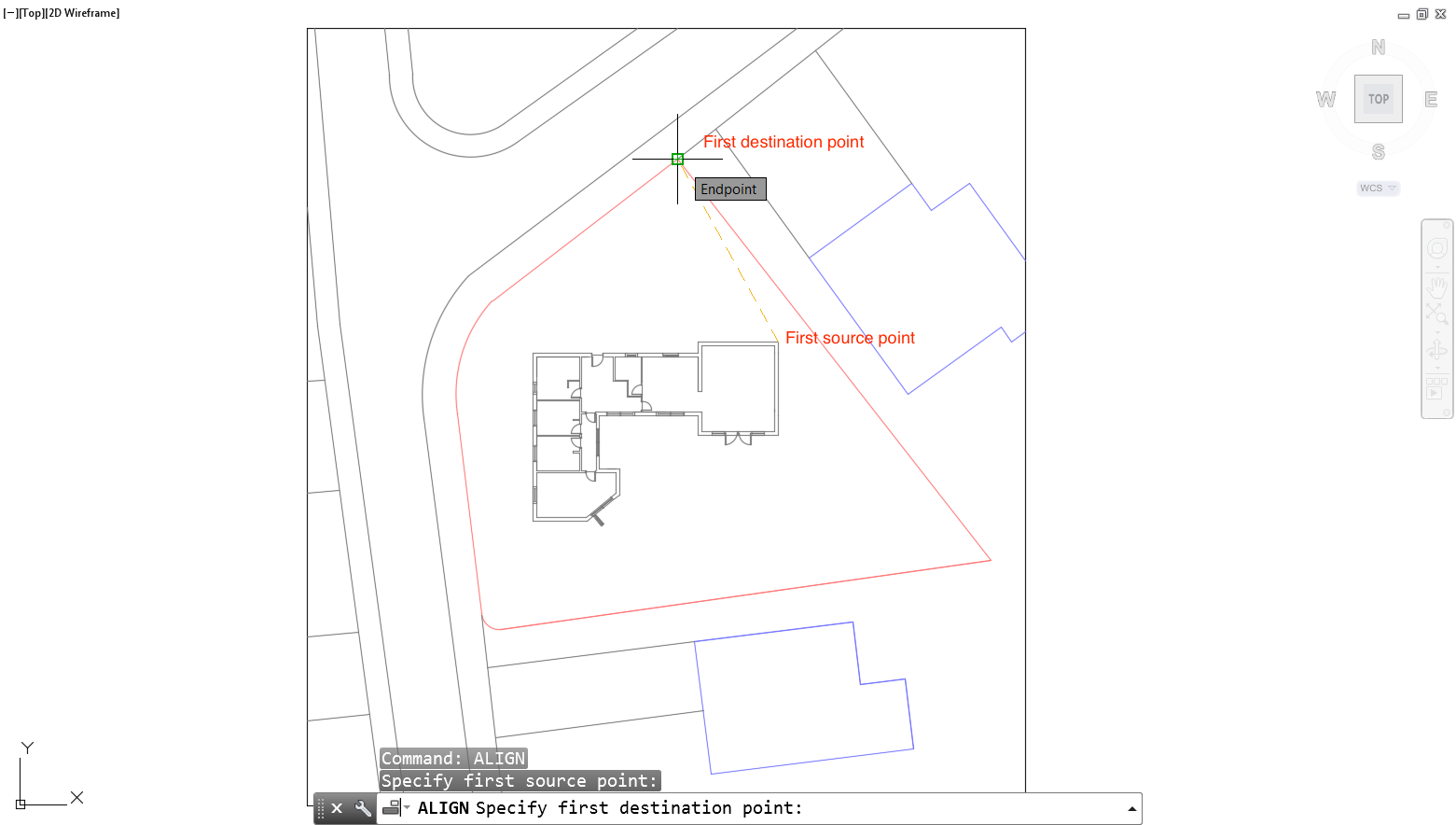

Tip 13 – Make Full Use of the Align Tool

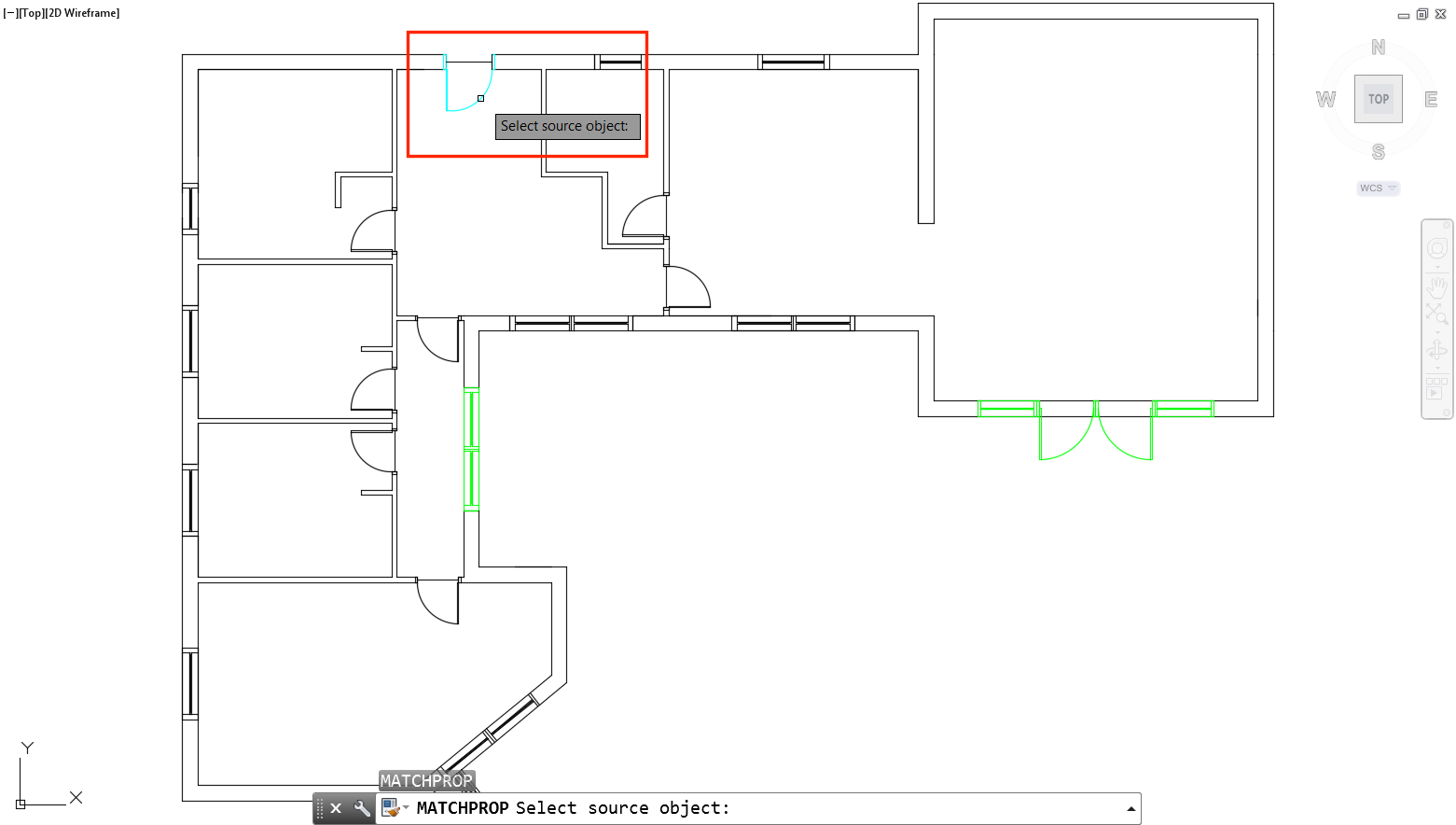

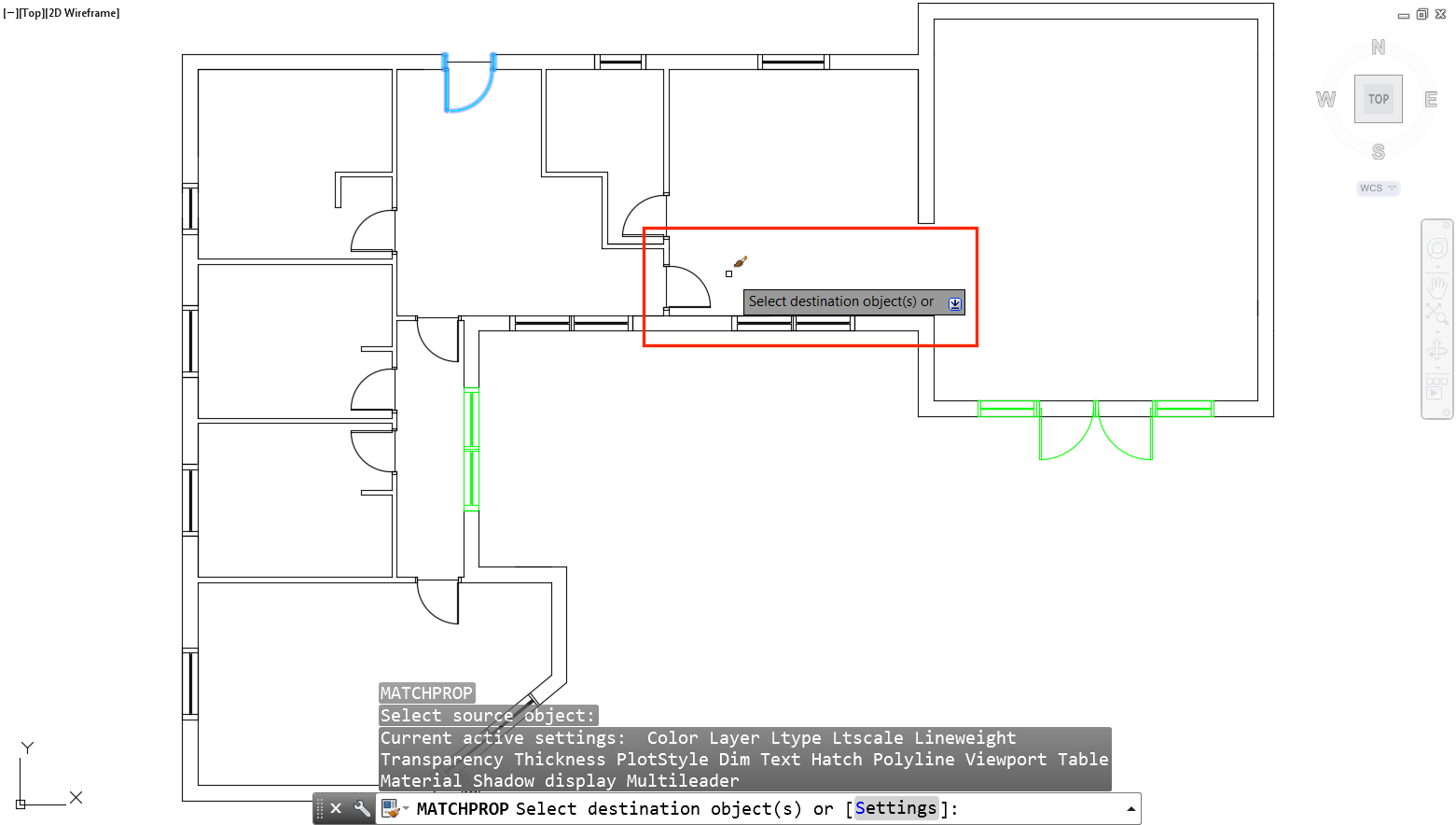

Tip 14 – Don’t Overlook The Match Properties Tool

Chapter 4

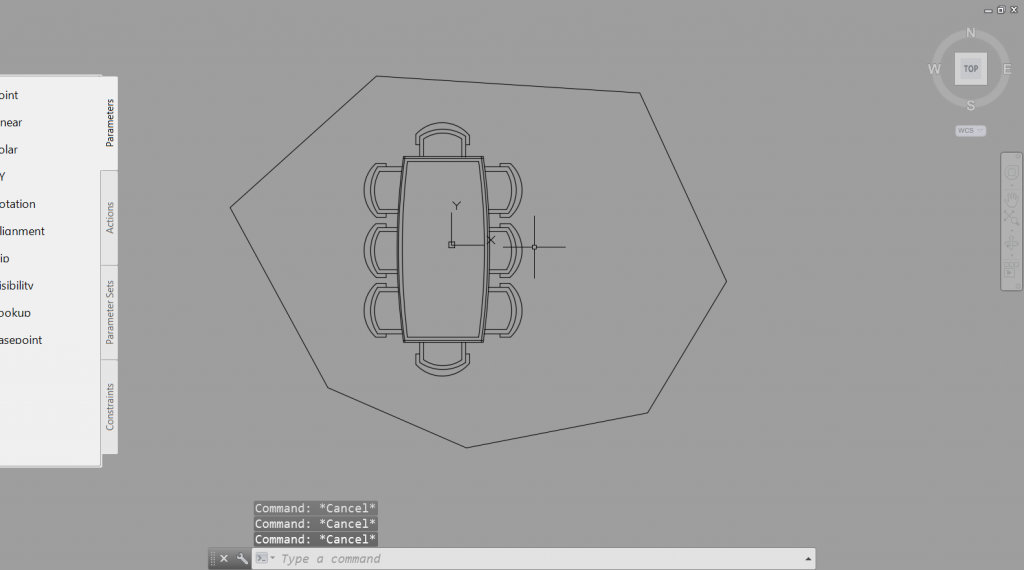

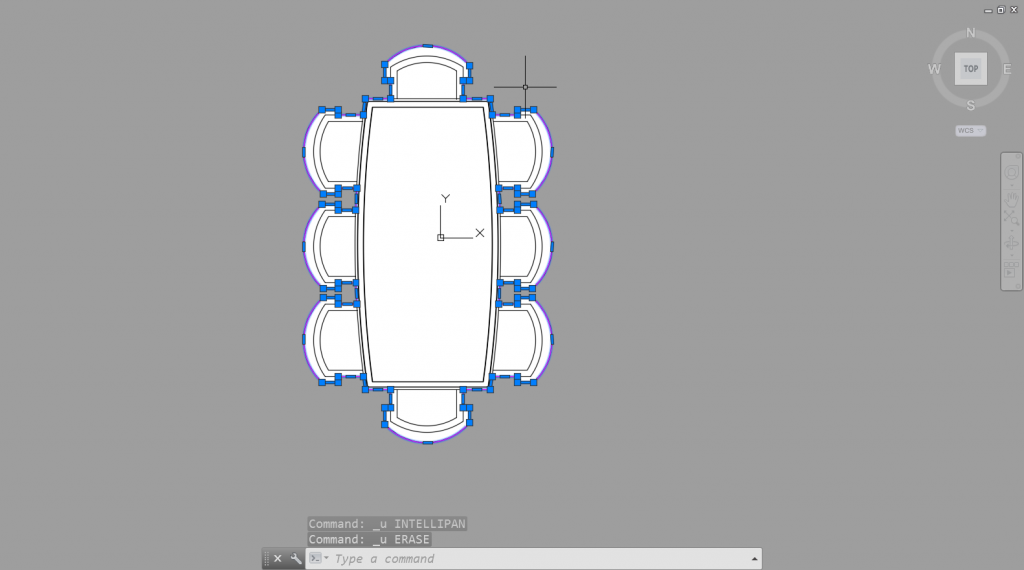

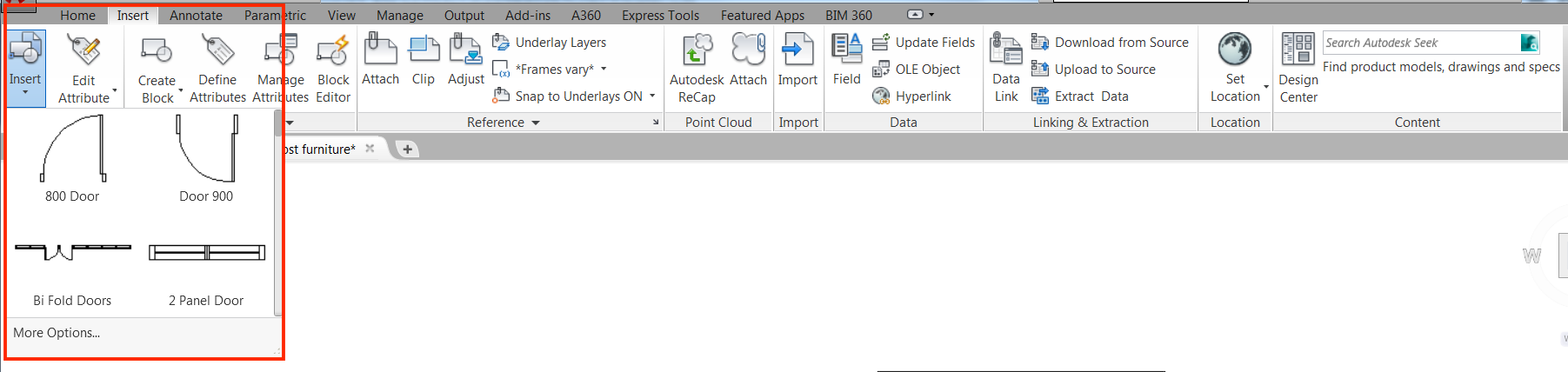

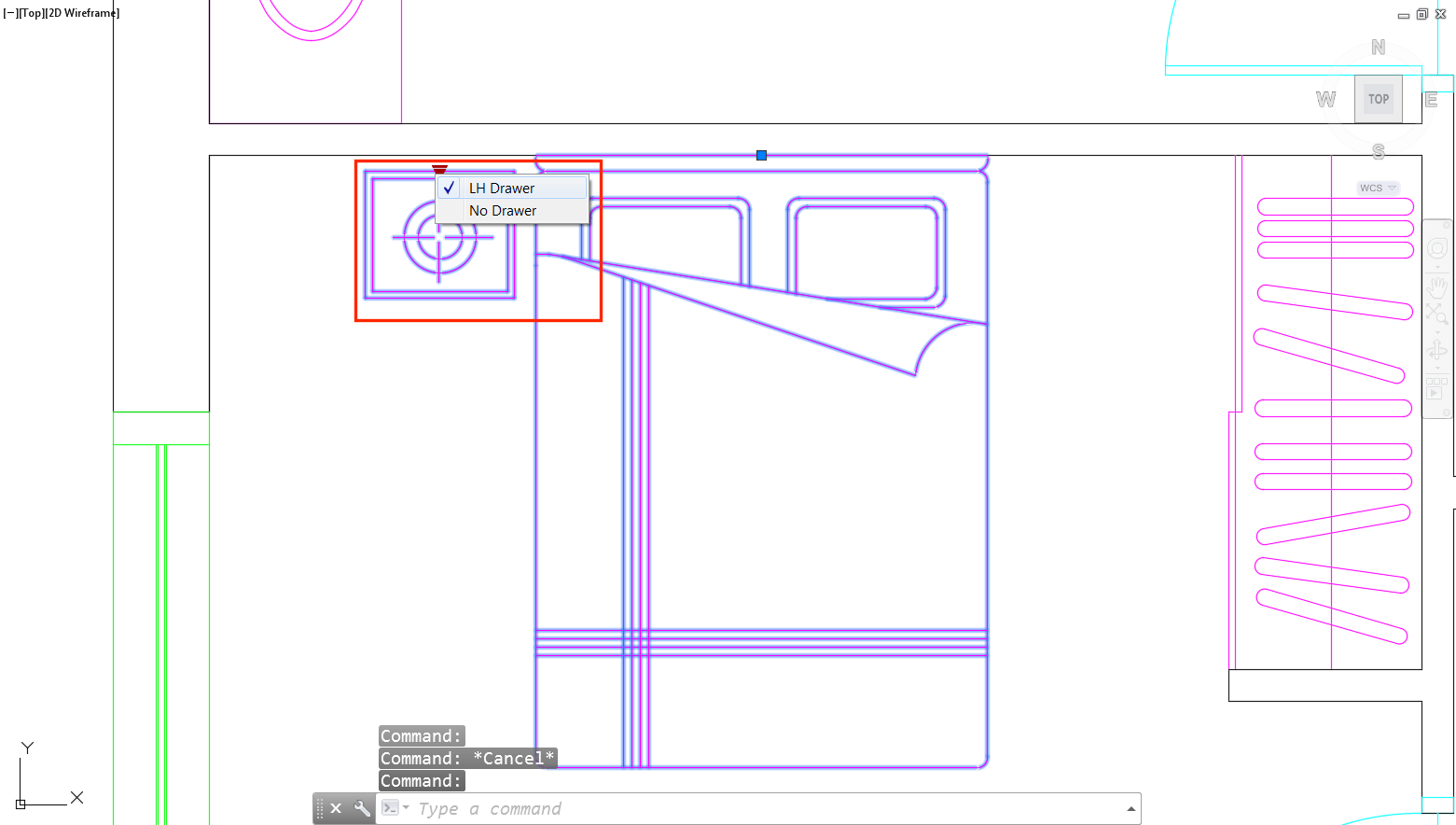

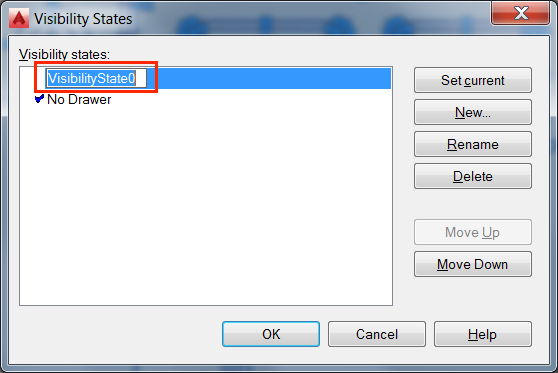

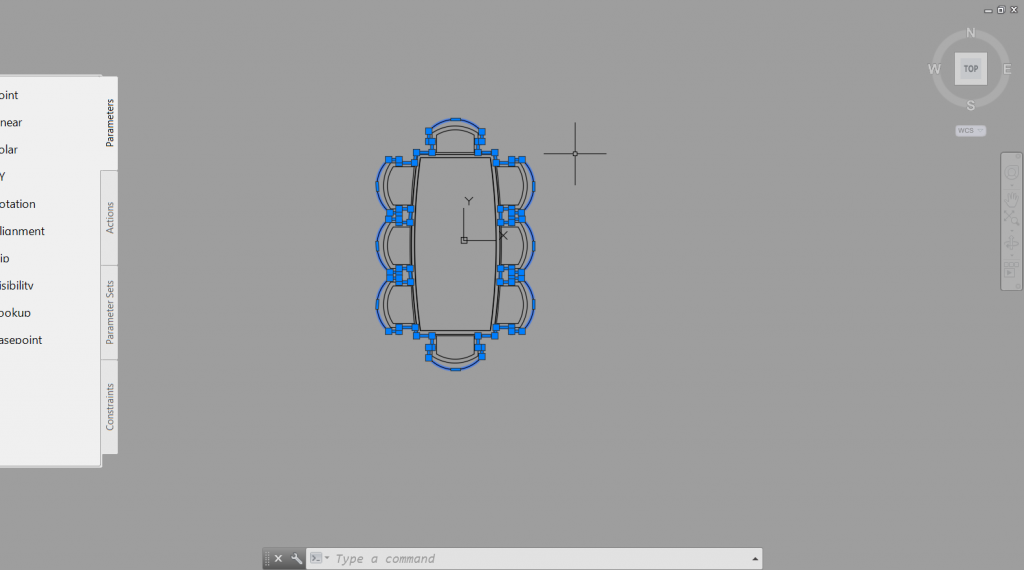

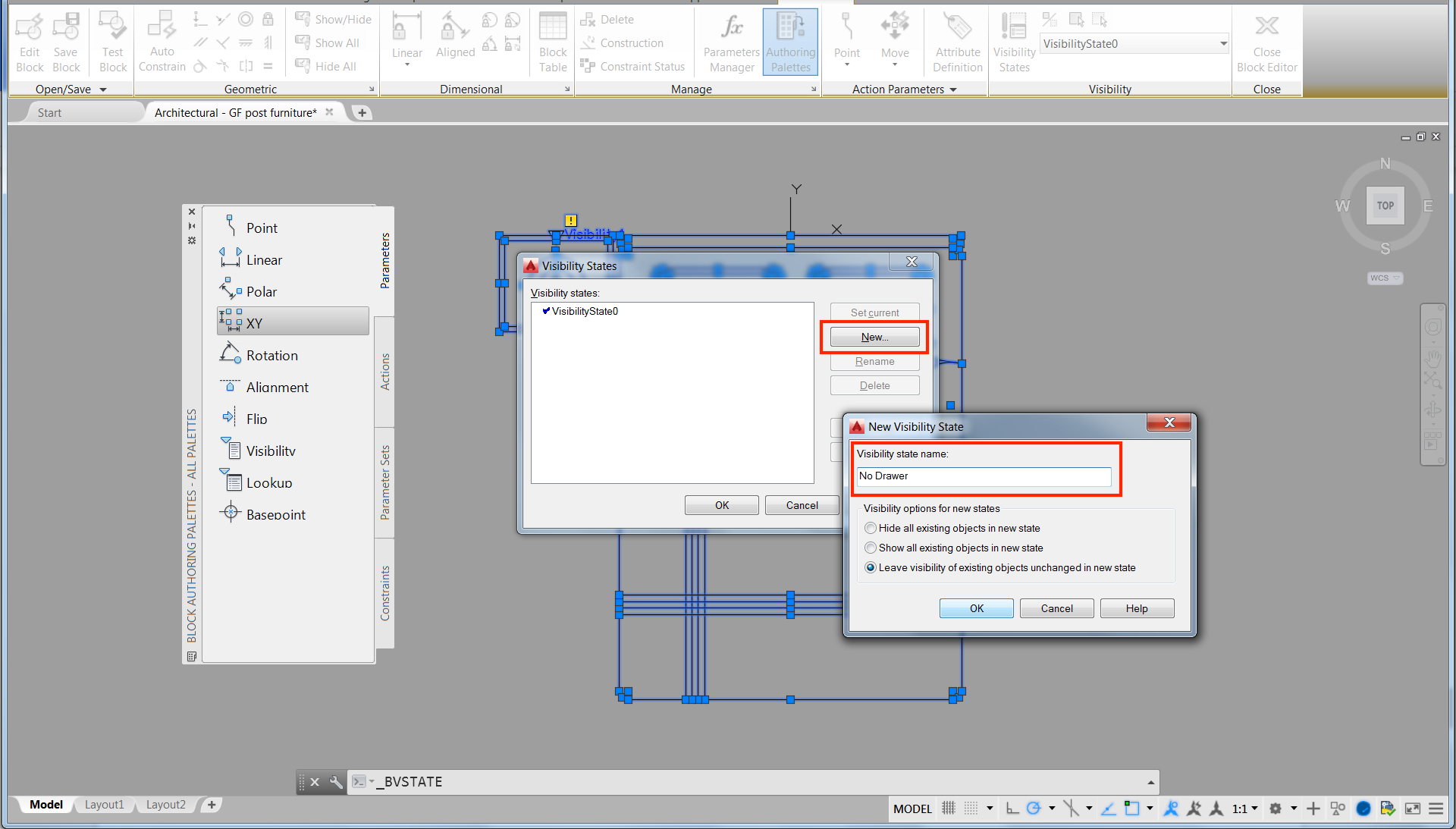

Tip 15 – Dynamic Blocks
Tip 16 – Reduce The Size Of A Drawing Using Blocks

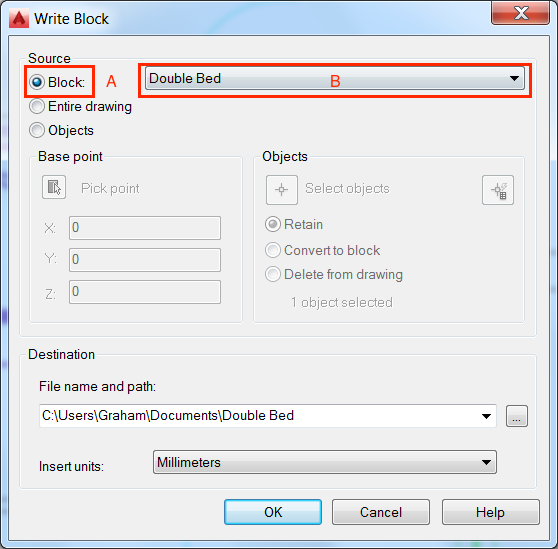

Tip 17 – Create Your Own Block Library

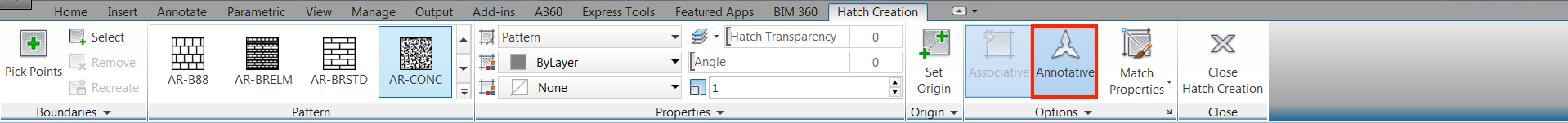

Tip 18 – Make your own Hatch Pattern
Tip 19 – Setup Default Hatch Settings
Tip 20 – Filling The Background Of CAD BLocks

Chapter 5

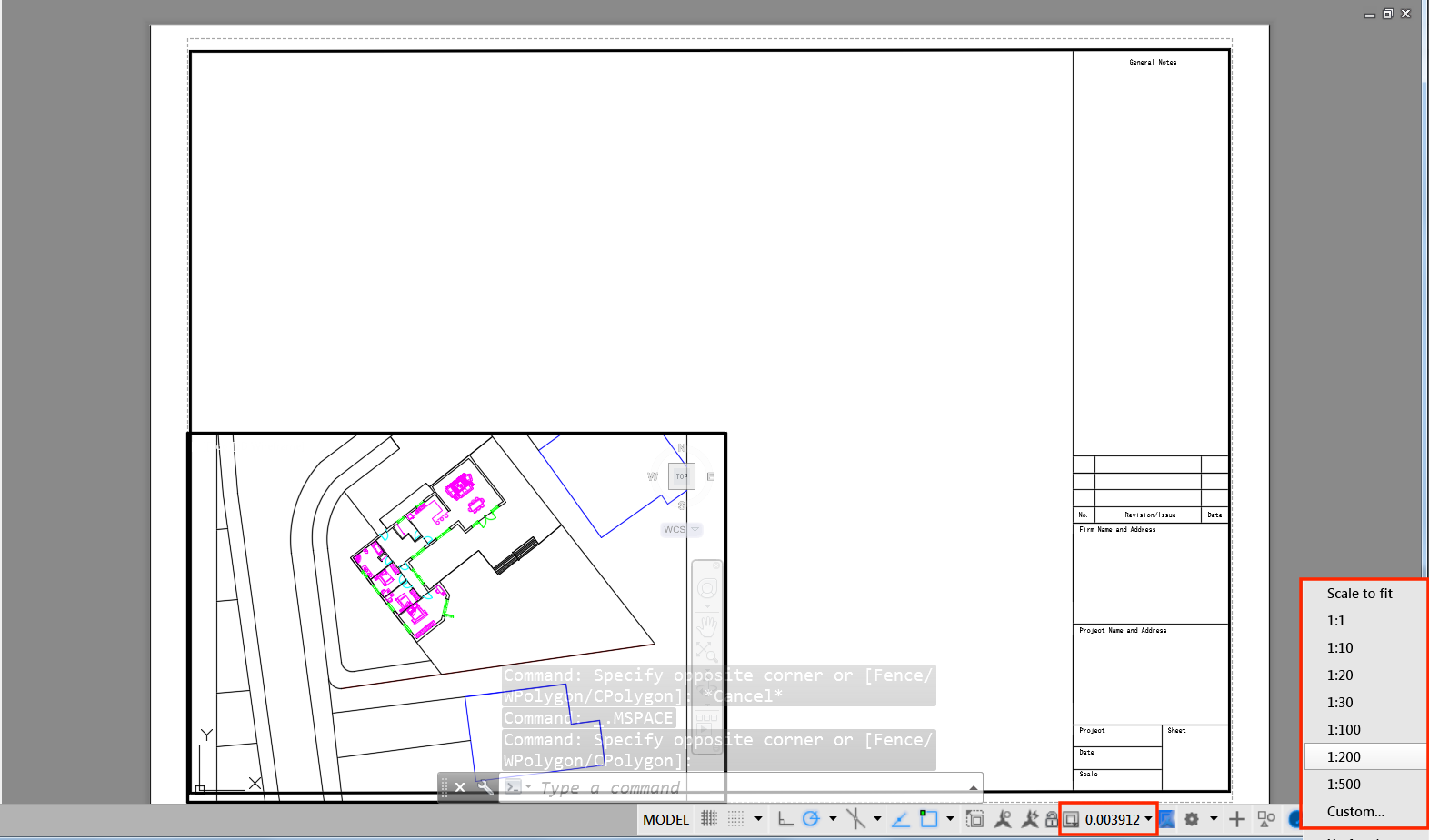

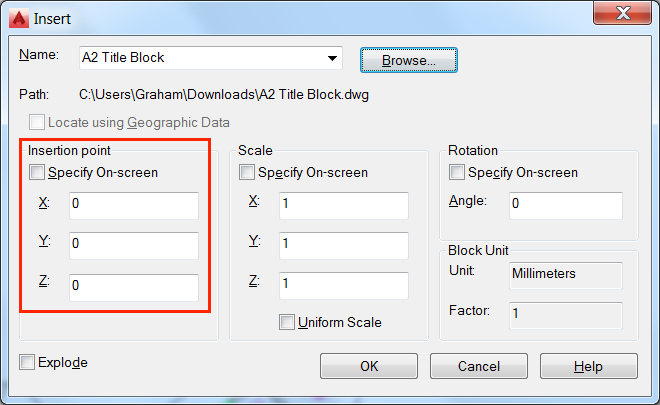

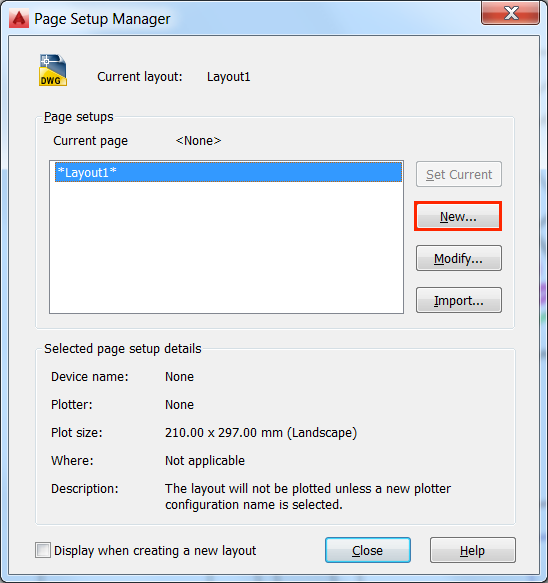

Tip 21 – Set Up Page Templates
Tip 22 – Use Fields to Auto Enter Title Block Information

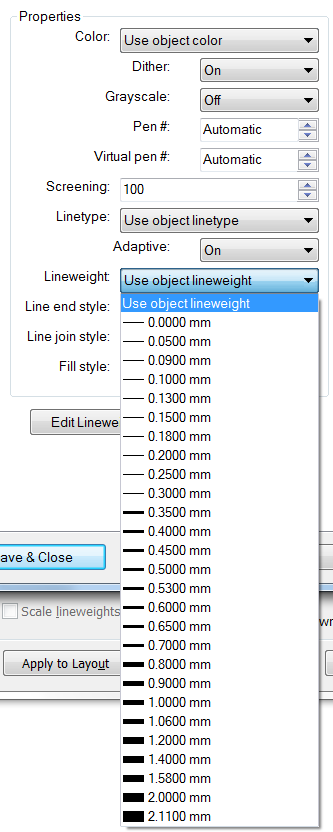

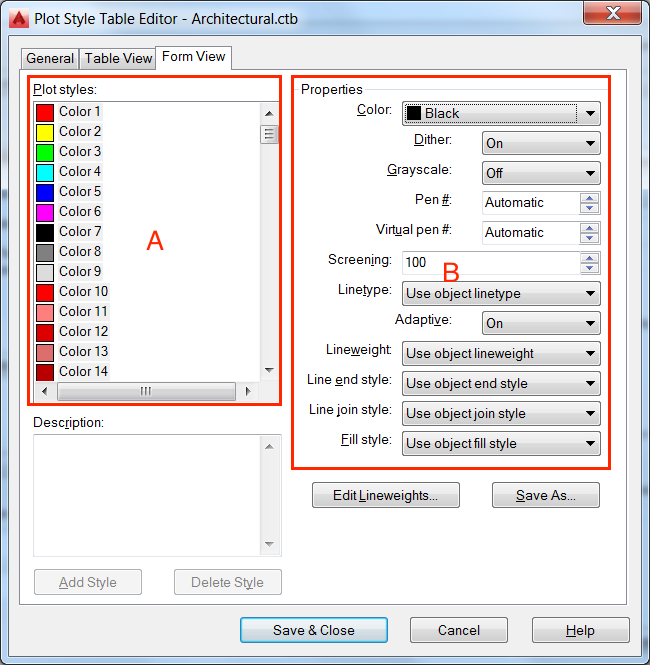

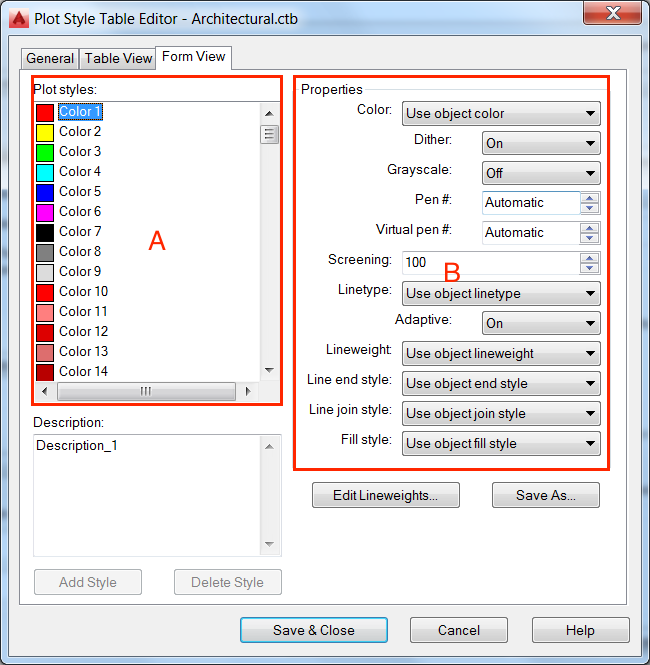

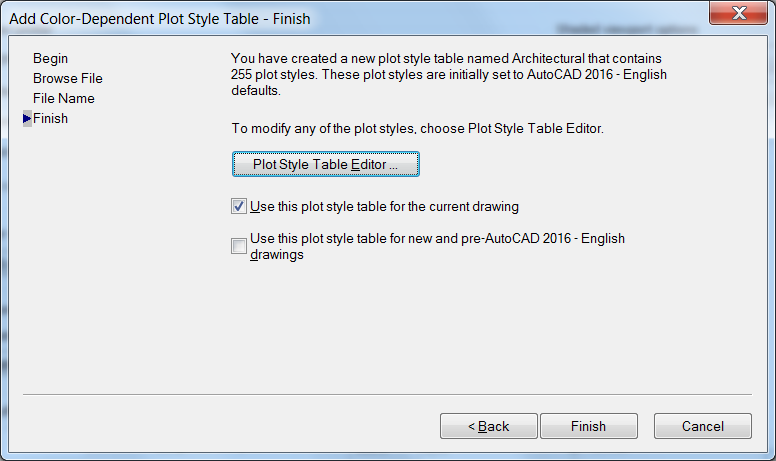

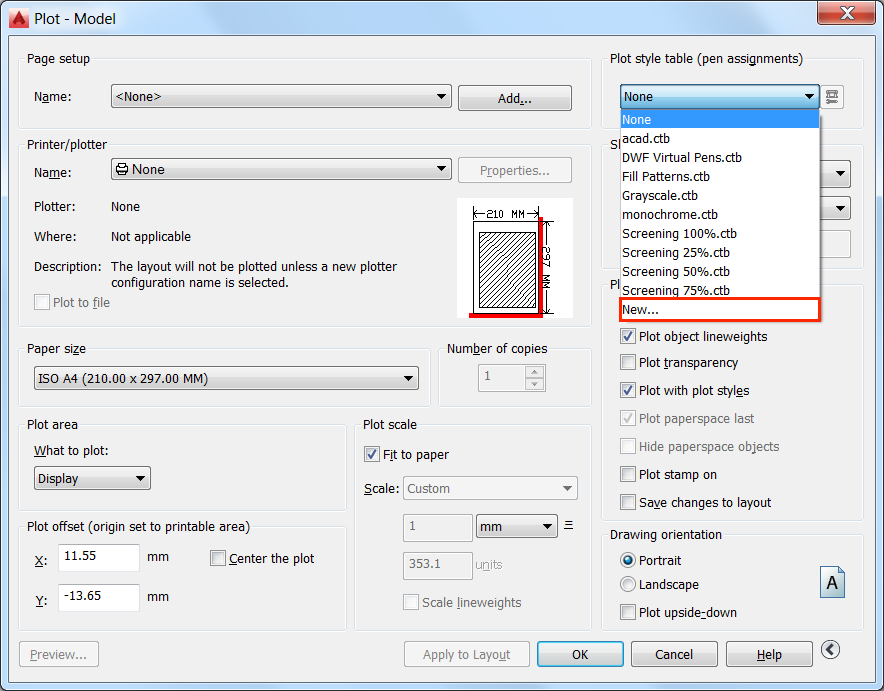

Tip 23 – Set Line Colours using Plot Style Tables

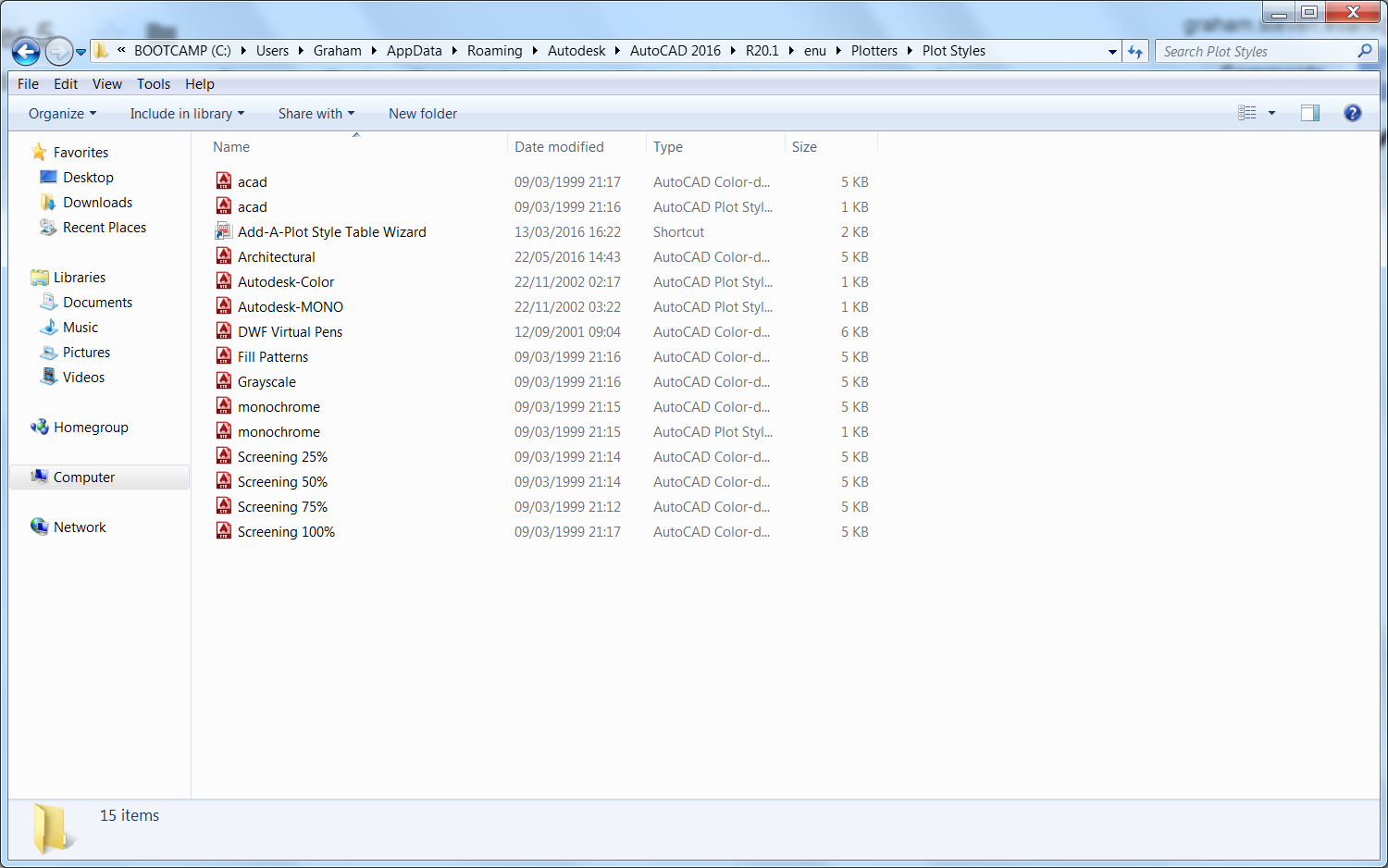

Tip 24 – Load Plot Style Tables into Other Drawings

NEXT - Chapter 1 - Mastering The Basics

Introduction & Contents

Before we get started we’re going to cover a few AutoCAD basics. If you get your drawing set up correctly it can save huge amounts of time later.

If you are an intermediate AutoCAD user you might want to skip straight to Chapter 2, which is where we start working on a drawing.

SECTIONTIPS INCLUDED IN SECTION
Drawing UnitsTip 1 – Using AutoCAD Templates
Command Window & Keyboard ShortcutsTip 2 – Increasing Command Line Size
Tip 3 – Restoring A Missing Command Line
Ribbon Tabs, Panels & ToolbarsTip 4 – Using The Quick Access Toolbar
Drawing Limits & ZoomTip 5 – Zoom Command
Tip 6 – Drawing Schemtics
Layer Properties ManagerTip 7 – Layer Filters

Drawing Units

With a new drawing you always need to be sure to set the correct units. If you are working outside the US, you are working with metric units. If you work in the USA, you will be using imperial units.

To observe or change the units of your drawing open the Drawing Units dialogue, by selecting File (Big A) > Drawing Utilities > Units

AutoCAD Training Article - Ch 1 - Screenshot 1

Alternatively, enter the command UNITS.

If you want to draw in metric units select “Decimal” from the Type drop-down list (A), and “Millimetres” or “Metres” within the Insertion Scale section of the Drawing Units dialogue (B).

Take care with the Architectural and Engineering length type. This is based on feet and inches not the metric system.

s

Note: changing Drawing Units within the Drawing Units dialogue, does not allow you to convert objects drawn in imperial to metric or vice versa. To convert units you should consider using the -DWGUNITS command or Scale tool.



Tip 1 – Using AutoCAD Templates

Save time customising drawing units when starting a drawing by using AutoCAD templates. Use the “acad” template when you want to use imperial units, and the “acadiso” template when working in metric units.

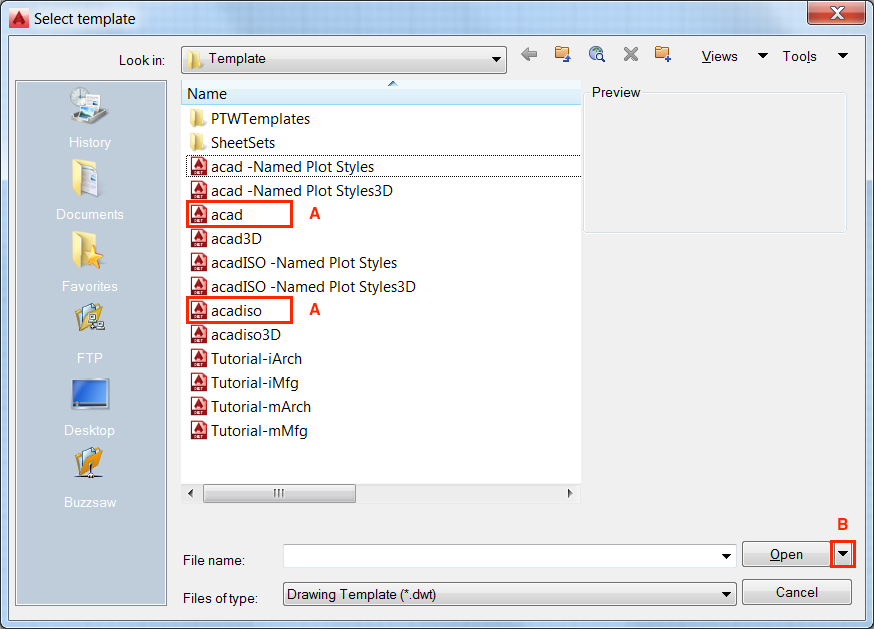

To open an AutoCAD template select it from the Start tab when first opening the software or find it by opening a new drawing (the Big A > New > Drawing):

AutoCAD Training Article - Ch 1 - Screenshot 3

The “acadiso” and “acad” templates should appear in the resulting list of files as shown in the figure above (A). If you want to start a new drawing without using a template, click the arrow contained to the right of the Open button (B). It will give you the options of “Open with no Template – Imperial” and “Open with no Template – Metric”.

Note: selecting either of the open without template options is not recommended unless you are an experienced user and have a good reason for doing so.

FURTHER READING:

AUTOCAD UNITS: CAD TUTOR ARTICLE
USING AUTOCAD TEMPLATES: CAD NOTES ARTICLE

Command Window & Keyboard Shortcuts

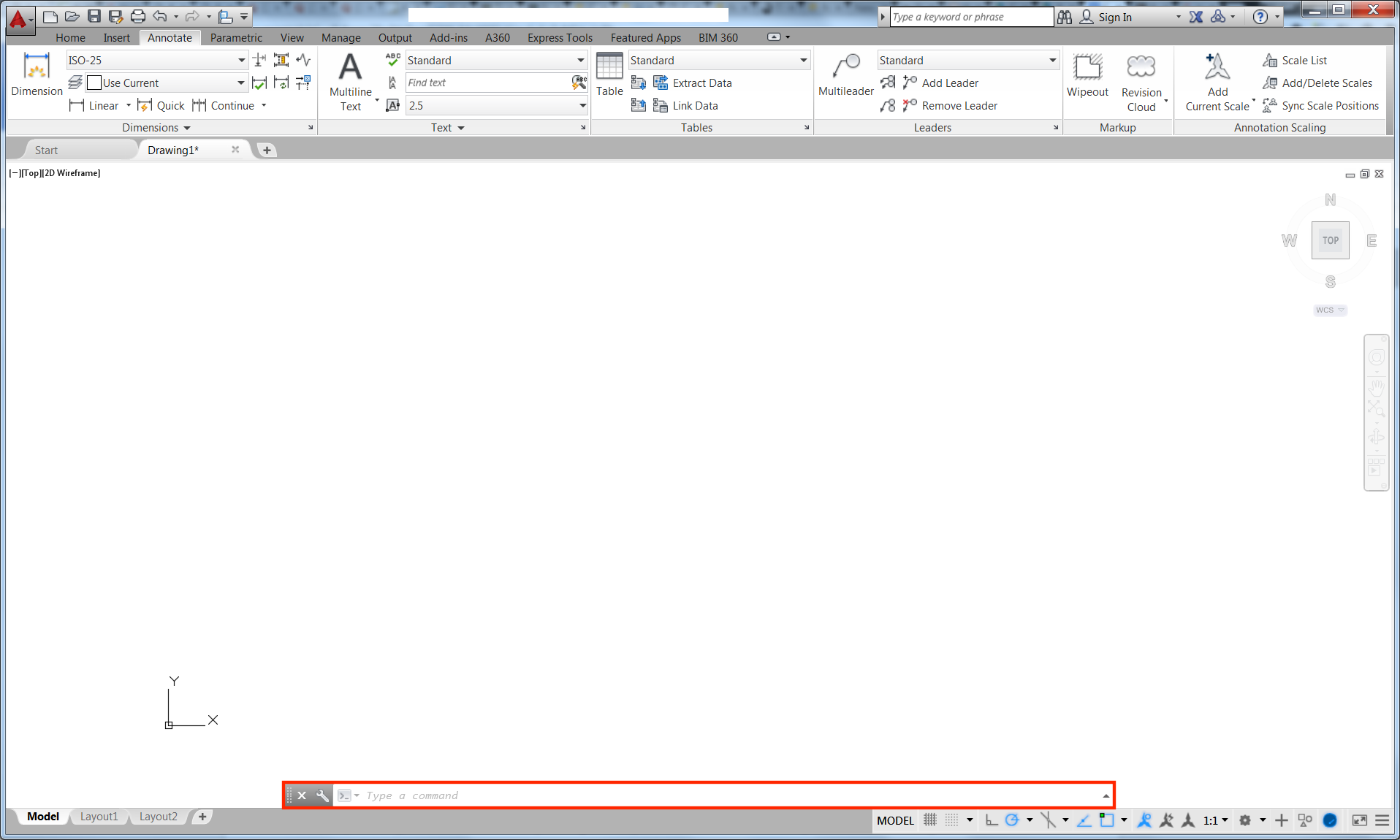

In the early days of AutoCAD the only way to interact with the software was using the keyboard and command line. Thankfully that is no longer the case, there is a wide selection of ribbon tabs and toolbars that you can use to find and execute commands. However this does not mean that you should ignore the command line. The command line is located at the bottom of model space by default, and it can be very useful when creating a drawing:

AutoCAD Training Article - Ch 1 - Screenshot 4

The command line is where you give AutoCAD information and where you are prompted with the next step when executing particular features of AutoCAD.

Given this working in it is highly recommended. In many cases it can be more efficient to work in the command line alone rather than in combination with ribbon tabs and toolbars.

Keyboard entered commands can save a lot of time when executing features repeatedly in AutoCAD despite being a big awkward initially when compared with using the ribbon and toolbars.

The solution to this is keyboard shortcuts; they are a shorter version of the sometimes long-winded command names. This makes them easy to master and quick to use when used repeatedly.

The table below shows some of the most useful shortcuts included within AutoCAD by default:

ShortcutCommandShortcutCommandShortcutCommand
AARCHHATCHQQSAVE
BBLOCKIINSERTRREDRAW
CCIRCLEJJOINSSTRETCH
DDIMSTYLELLINEVVIEW
EERASEMMOVEWWBLOCK
XEXPLODETMTEXTZZOOM
FFILLETOOFFSET
GGROUPPPAN

Table 1 – Default AutoCAD Shortcuts

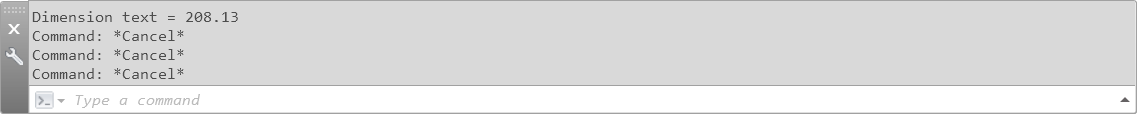

Tip 2 – Increasing the Command Line Size

Increasing the size of the command line to more than the default one line makes it far more useful, especially for more complex tools. For example, urban designers use the Align tool frequently, however it requires multiple inputs which often baffles new users. A larger command line makes this far easier to work with.

This can be done by moving your cursor to the horizontal boundary where the Command window meets the drawing area, clicking and dragging to the required number of lines:

AutoCAD Training Article - Ch 1 - Screenshot 5

Everyone will have their own preferred depth for a command line. Personally I prefer to work with four lines.



Tip 3 – Restoring a Missing Command Line

If the Command Window has disappeared from the bottom of your model space enter Ctrl + 9 or type the command _COMMANDLINE↵.

FURTHER READING:

A LONGER LIST OF SHORTCUTS: ELLEN FINKELSTEIN’S ARTICLE
RECOVERING YOUR COMMAND LINE: IMAGINEiT Article

Ribbon Tabs, Panels & Toolbars

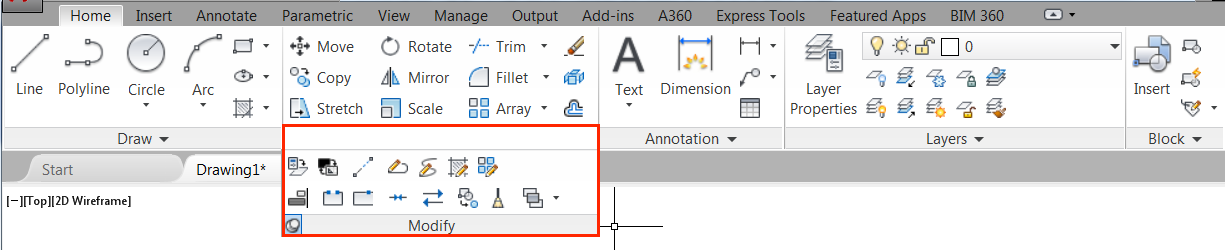

First introduced as a consolidated ribbon in AutoCAD 2009, the ribbon positioned at the top of your AutoCAD window organises the many tools of AutoCAD into logical groupings. The AutoCAD Ribbon categorises tools by tabs, and further sub-categorises tools using panels. To prevent some panels from being overloaded with tools additional tools can be accessed by opening a drop-down dialogue box:

AutoCAD Training Article - Ch 1 - Screenshot 6

Most AutoCAD users are familiar with the AutoCAD Ribbon, and its intuitive user interface does not require an explanation. However what many users may not know is that the ribbon is highly customisable. For example, you can choose what tabs and panels to display by right-clicking on the ribbon and ticking or unticking as appropriate.

While this may not be the most ground-breaking or useful feature, one useful feature added to the Ribbon in 2010 is the ability to detach panels. By detaching a panel it means you no longer have to navigate to it in the Ribbon, it simply sticks to your drawing space. For example, when dimensioning buildings you no longer need to repeatedly navigate to the Annotate tab of the Ribbon. Simply detach the required panel(s) and work with it in your drawing space until you have finished dimensioning.

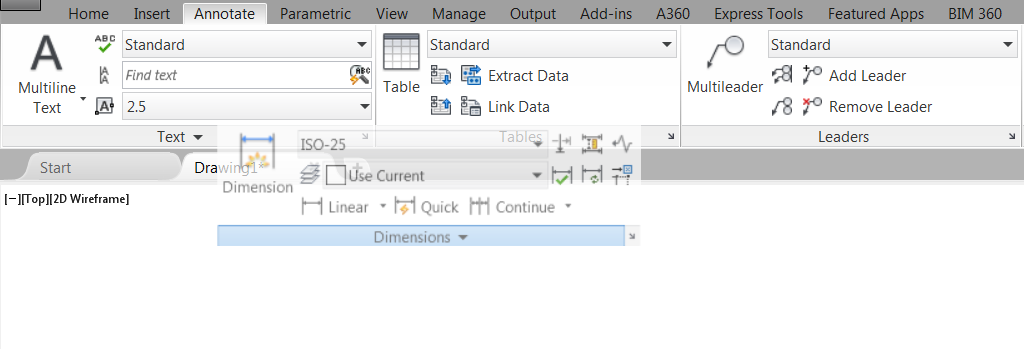

To detach a panel drag it from the Ribbon. Be sure to click on a space not occupied by a button as it won’t recognise you are trying to drag a panel otherwise:

AutoCAD Training Article - Ch 1 - Screenshot 7

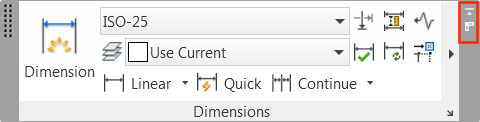

It is recommended you restore the panel once you no longer require it. This will prevent your drawing space from becoming cluttered. To do this click the “Return Panels to Ribbon” button located in the top-right corner of the panel:

AutoCAD Training Article - Ch 1 - Screenshot 8

You should also consider creating your very own panel which can save a lot of time by organising it to display all of the tools you use on a day-to-day basis. This can be done from within the AutoCAD CUI Editor.



Tip 4 – Making Use of the Quick Access Toolbar

If you do not have the time to make a custom panel or do not believe the result justifies the time it would take to create, consider making use of the Quick Access Toolbar. This is located above the AutoCAD ribbon and includes “New”, “Open”, “Save” and “Save As” by default.

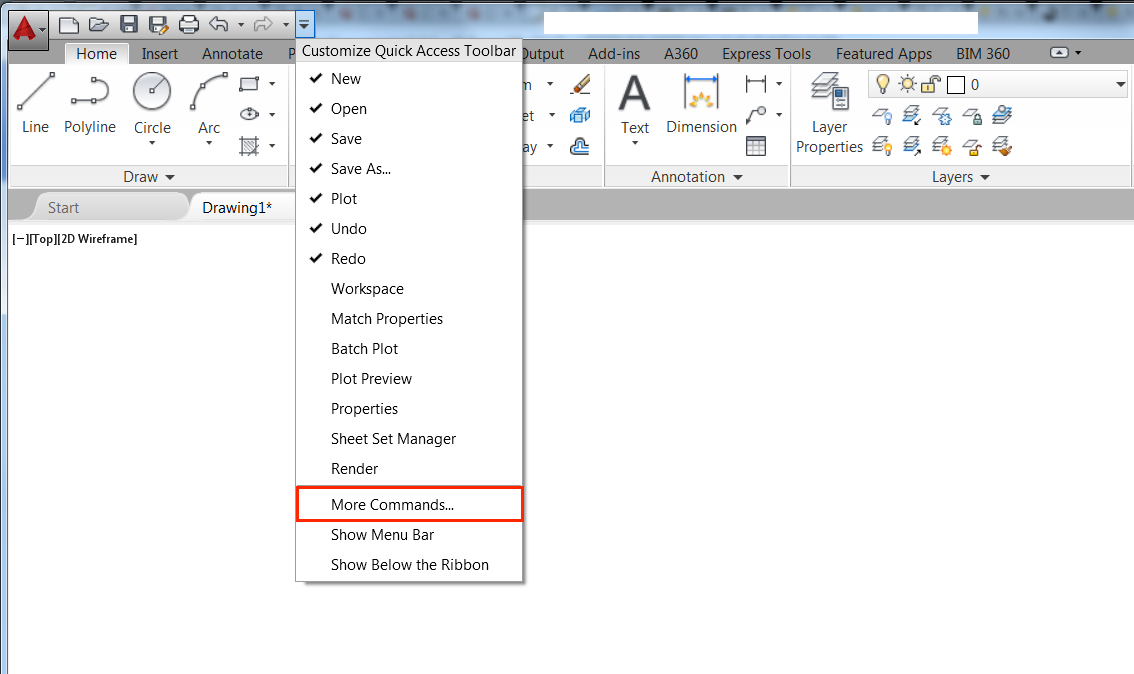

Customise the Quick Access Toolbar by clicking on the arrow to the right of the toolbar and then selecting the “More Commands” option:

AutoCAD Training Article - Ch 1 - Screenshot 9

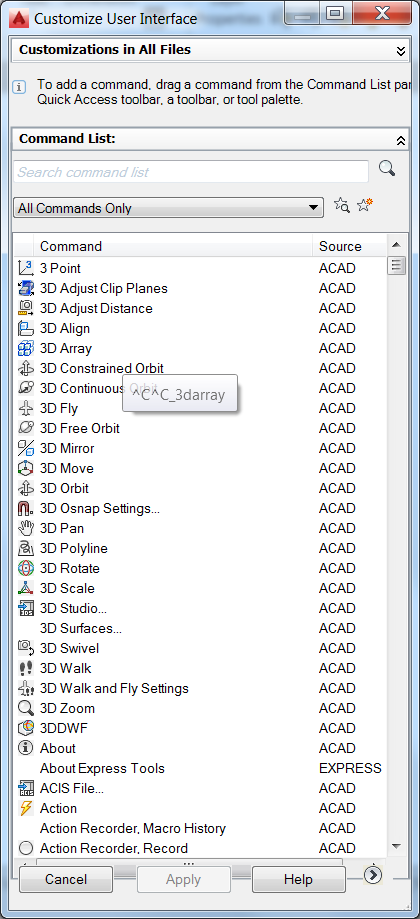

Add tools by dragging them from the Custom User Interface (CUI) dialogue to the Quick Access Toolbar:

AutoCAD Training Article - Ch 1 - Screenshot 10

Note: if you feel the location of the Quick Access Toolbar is not convenient or not prominent enough consider moving it below the Ribbon, directly above the drawing space. Do so by selecting the Show Below the Ribbon option contained within the Quick Access Toolbar drop-down menu.



FURTHER READING:

SHOWING AND HIDING TOOLBARS: CAD PANACEA ARTICLE
CUSTOMISING THE QAT: SYNERGIS ARTICLE

Drawing Limits & Zoom

Many people think that setting drawing limits before starting your drawing is unnecessary and an old feature of AutoCAD. Many professionals working in the AEC can go about their day-to-day activities without doing so but setting drawing limits ensures that the zoom function works correctly. Given that anyone working on your drawing will inevitably use this I recommend taking the time to set drawing limits.

To set up drawing limits you will need to use the command line. Type LIMITS↵.

You will be prompted to specify the limits of the lower left corner. Set this to 0, the default limit, by hitting ↵ on your keyboard once again:

AutoCAD Training Article - Ch 1 - Screenshot 11

Next, enter the limits of the upper right corner as prompted within the command line. This is the important number that will determine the size of your drawing limits:

AutoCAD Training Article - Ch 1 - Screenshot 12

By default when working in millimetres drawing limits are set at 420 vertical (Y) by 297 horizontal (X). This is of course too small to be a building. You will most likely need to enter a number more relevant to your project requirements.

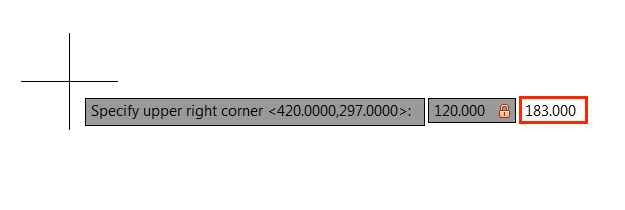

First, enter the Y coordinate separated by a comma, and then enter the X coordinate. You should notice the Y coordinate is locked by a symbol next to your cursor. It should also prompt you to enter the X coordinate of the upper right corner:

AutoCAD Training Article - Ch 1 - Screenshot 13

Note: in this example we have set the upper right corner limit to be 120.000 vertical (Y) by 183.000 horizontal (X), which happens to be the footprint size of the Sydney Opera House.

After you have entered a suitable X coordinate, complete the setting up of your drawing limits by hitting enter once again.



Tip 5 – Zoom Command

Quickly zoom to a required level by entering Z↵ or Zoom↵. When prompted enter A↵ to Zoom to the drawing limits or E↵ to zoom to the extent of all objects within a drawing. Zoom to the size of particular objects in your drawing by entering the Zoom command and entering O.



Tip 6 – Drawing Schematics

When drawing MEP schematics and the like, set your drawing limits to the size of the paper you intend to use. Draw within these limits and will not need to resize your drawing when it comes to printing later.



FURTHER READING:

SETTING A DRAWING LIMITS: CAD VIDEO TUTORIALS VIDEO
PANNING AND ZOOMING: 2 LEARN CAD ARTICLE

Layer Properties Manager

Mastering layers is key to becoming an efficient AutoCAD user. They are what stands between creating a well-crafted drawing and unorganised chaos.

Many people have learned the hard way to heed the advice to always carefully assign lines to appropriate layers. To master layers it is first important to familiarise yourself with the Layers Properties Management dialogue.

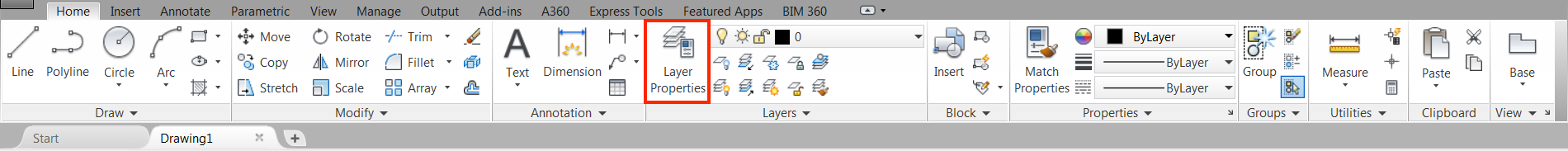

To open the Layers Properties Management dialogue select Layer Properties from the Layers panel of the Home ribbon tab:

AutoCAD Training Article - Ch 1 - Screenshot 14

Alternatively, type the command LA↵.

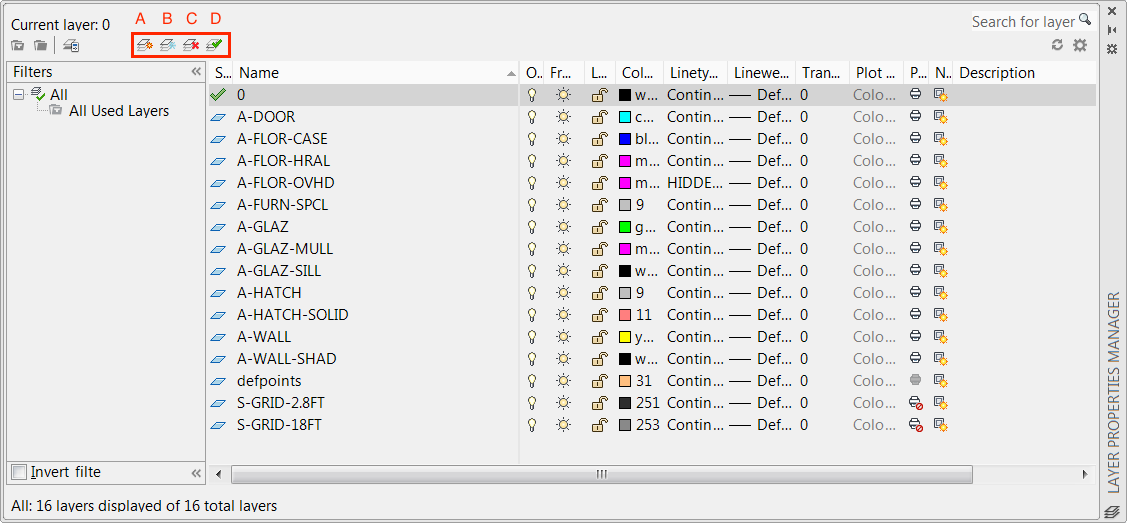

Within the Layer Properties Manager dialogue, you can find a table, which contains all of the layers and layer properties included with your drawing. Above which there is a toolbar that includes the following essential buttons (A) Add New Layer, (B) New Layer VP Frozen in All Viewports, (C) Delete Layer, (D) Set Current:

AutoCAD Training Article - Ch 1 - Screenshot 15

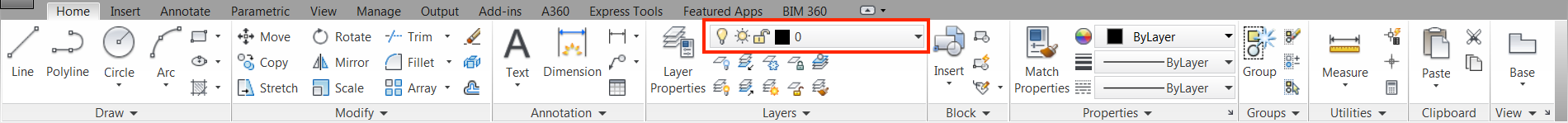

Many people have used the Layer Management dialogue to complete simple tasks like adding and naming a new layer or changing the layer a new object is draw in. The later is done by using the “Set Current” button or using the Layer toolbar within the Layers panel of the Home ribbon tab:

AutoCAD Training Article - Ch 1 - Screenshot 16

However, as well as always creating and assigning layers as appropriate, it is recommended that you make use of Layer Filters and Layer States especially for more complex drawings. Layer Filters allow particular layers to be grouped together. Layer States allow you to restore layer properties to a predefined setup.



Tip 7 – Layer Filters

These are great when working with big complicated drawings.

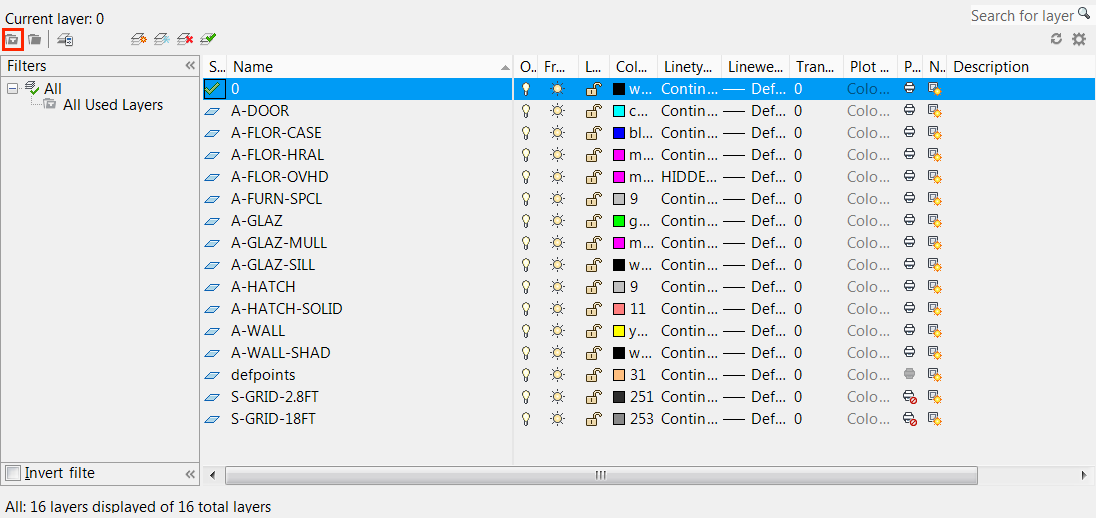

If you want to see only layers with a particular characteristic select the New “Property Filter” button from the Layer Properties Management dialogue:

AutoCAD Training Article - Ch 1 - Screenshot 17

Alternatively, use the shortcut Alt + P when in the Layer Properties Management dialogue.

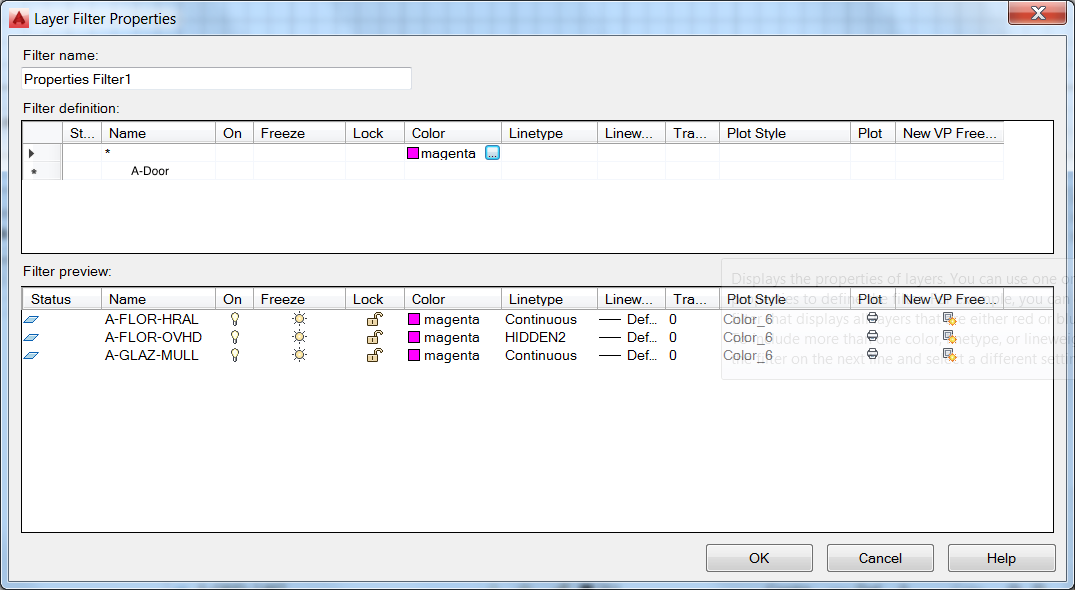

This will open the Layer Filter Properties dialogue, from which you can set up a filter to group the layers of your drawing:

AutoCAD Training Article - Ch 1 - Screenshot 18

For example if you want to observe only layers that are coloured “Magenta” – select Magenta within row 1 of the Filter Definitions section of the Layer Filter Properties dialogue.

Note: use row 2, and on, if you want to create an additional filters based on other properties. For example if you want to find layers coloured Magenta as well as those named “A-Door” enter this as appropriate in the “Name” column of Row 2.

After setting up the properties you want to filter out, giving your filter a name and selecting “Save” within the Layer Filter Properties dialogue, you should be able to see only the layers that meet your criteria by selecting your newly created filter within the Filter Tree section of the Layer Properties Management dialogue:

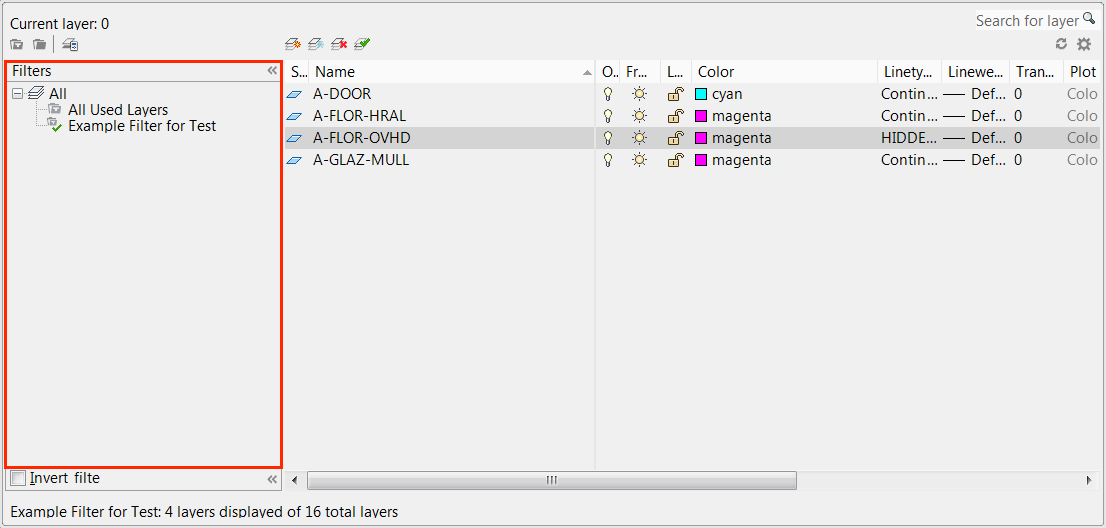

AutoCAD Training Article - Ch 1 - Screenshot 19

Note: an alternative way to filter layers is to select the Group Layer button within the Layer Properties Management dialogue. Rather than automated filtering based on particular properties, the Group Layer feature allows you to drag and drop layers to newly created filter groups.



FURTHER READING:

DETAILED LAYERS TUTORIAL: CAD TO BIM ARTICLE
DETAILED LAYERS FILTERS ARTICLE: DESIGN AND MOTION ARTICLE

NEXT - Chapter 2 - Site Planning

Introduction & Contents

Now that we have been through the basics of AutoCAD we are going to move through the typical workflow of a small-scale residential project highlighting a host of tips and tricks along the way.

This chapter focuses on drawing existing site conditions, and shows how you can create a reasonably accurate site plan with limited information.

SECTIONTIPS INCLUDED IN SECTION
Importing Images As A Base LayerTip 8 – Finding Aerial Imagery
Tip 9 – Adding Images to a New Layer
Scaling Base Layer Images To SizeTip 10 – Determining A Known Length

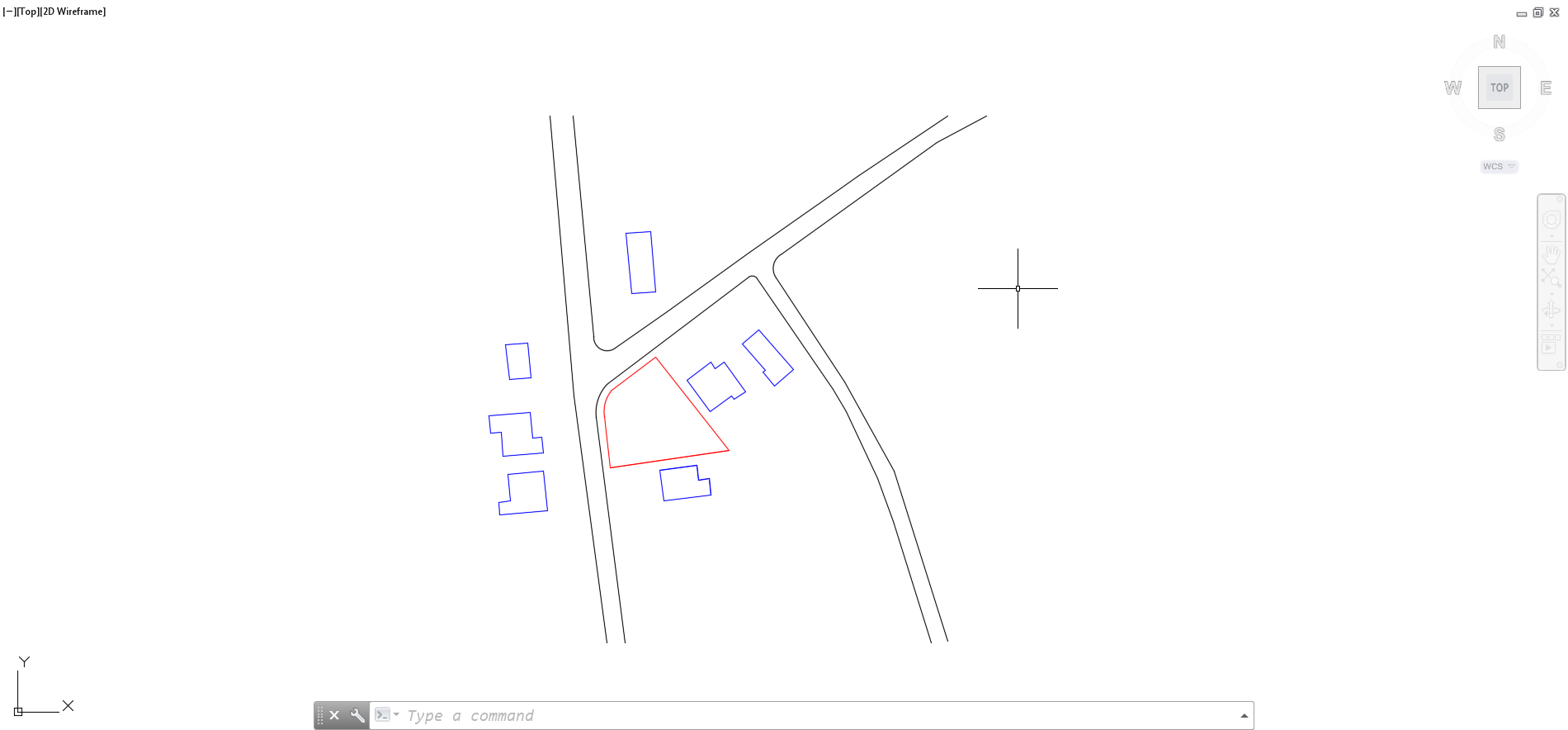

Drawing Site Conditions

Importing Images As A Base Layer

Often you will be given a site plan in AutoCAD format which has either been extracted from an Ordnance Survey map or a measured survey. However, this is not always available or required.

In that event, the Image Attach feature of AutoCAD can very useful. It can import a range of reconnaissance information such as aerial imagery, sketches and drawings.

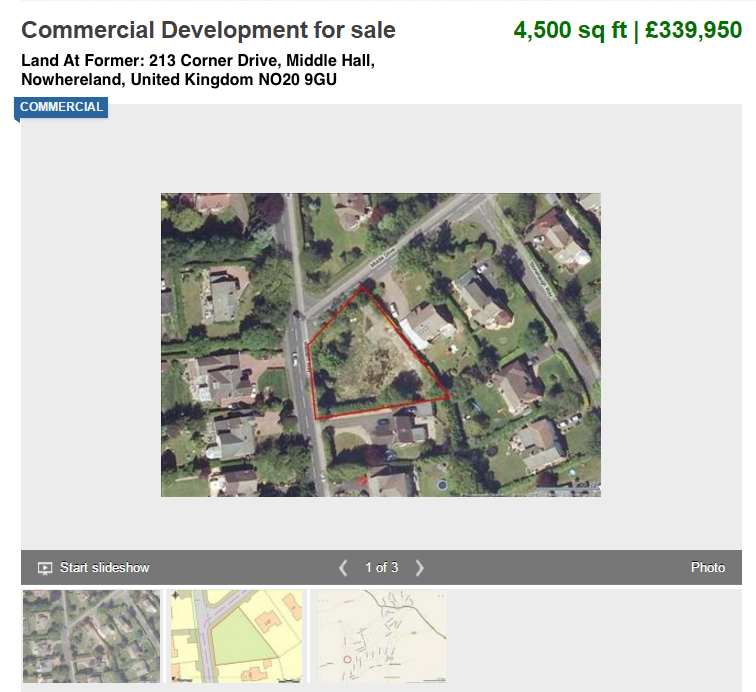

In this example we will be drawing existing site conditions using the information obtained from a land-for-sale listing as a start point:
AutoCAD Training Article - Ch 2 - Screenshot 1

Note: some information can be determined from the land-for-sale listing such as the address, the size of the site and site boundaries.

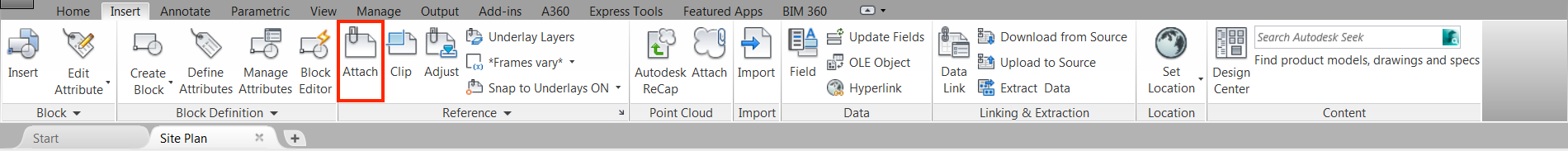

By saving the image, showing site boundaries, to your local drive you can then import it into AutoCAD using the Image Attach feature of the software. Do this by selecting Attach from the Reference panel of the Insert ribbon tab:

AutoCAD Training Article - Ch 2 - Screenshot 2

Alternatively, enter the command IMAGEATTACH↵.

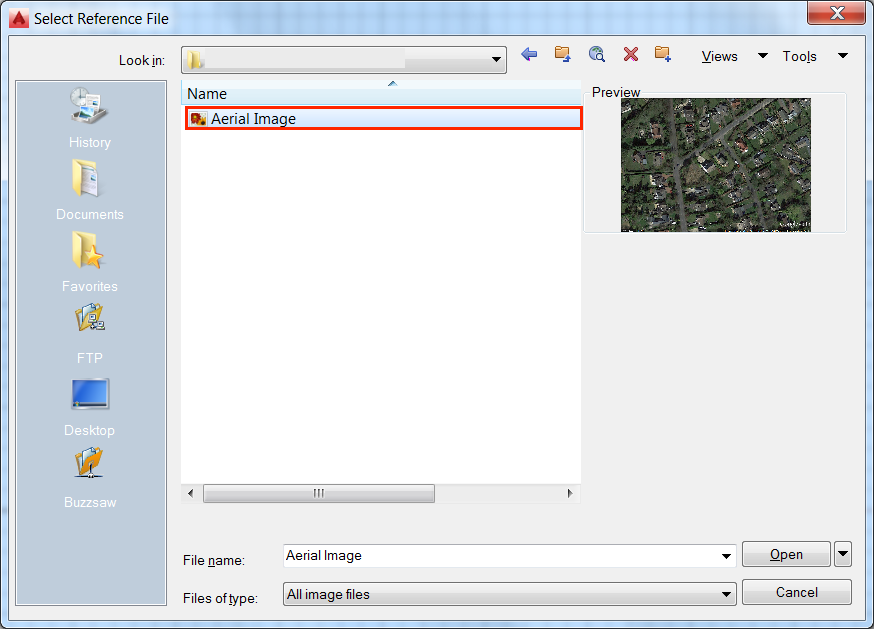

This will open the Select Reference File dialogue, from which you can navigate to the location of the locally saved image:

AutoCAD Training Article - Ch 2 - Screenshot 3

Note: it is recommended that you create and save images to a specific project folder, as images imported using the Image Attach feature are never actually part of the drawing. They are imported as an external reference and AutoCAD will use the file path to find and place the image each time you open your drawing. Therefore, if you later move or delete the image within your file explorer the path will be broken, until a newly assigned path has been set.

Once you have selected the image you wish to import from the Select Reference dialogue screen and clicked “Open”, the Attach Image dialogue should appear. It is recommended that you set the Path Type option to “No Path”. This will mean that so as long as the image is saved in the same folder as your AutoCAD drawing file it will be imported each time you open the drawing.

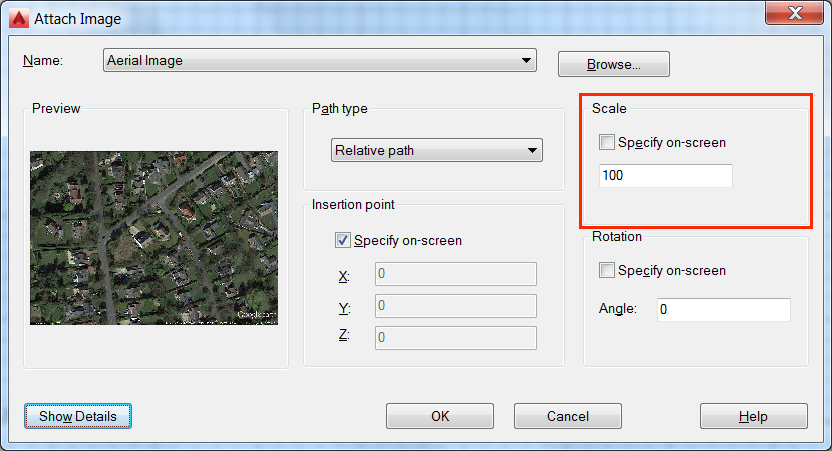

As we will be scaling the image once it is inserted, un-tick the Specify on-screen option and set the scale to 500:

AutoCAD Training Article - Ch 2 - Screenshot 4

Note: the scale size is not important as we will be correcting the scale later.

Click OK to finish inserting the image. It should now appear within your drawing space.

Tip 8 – Finding Aerial Imagery

Where possible it is recommended that you take images from the source where you can obtain the largest image size possible. In this example the size of the site with boundaries image measures 640 x 420 pixels, as such you would be better to find the site in Google Maps or similar and take your own screenshot.

Note: there are many free software programs available for taking screenshots, including Windows very own Snipping Tool, generally found within the Accessories tab of the Start menu.

Tip 9 – Adding Images to a New Layer

As discussed in Chapter One – Mastering the Basics, one of the golden rules when working in AutoCAD is to make good use of the Layers feature. It is recommended that all images imported into a drawing are given a new layer. This will prove useful when controlling the visibility of the image as the image is likely redundant after we have traced the existing site conditions from it. At that point we will want to hide it more than likely.



FURTHER READING

INSERTING IMAGES: AUTOCAD TIP OF THE DAY ARTICLE
ADDING AERIAL MAPS VIA AUTOCAD: CAD PRO TIPS ARTICLE

Scaling Base Layer Images To Size

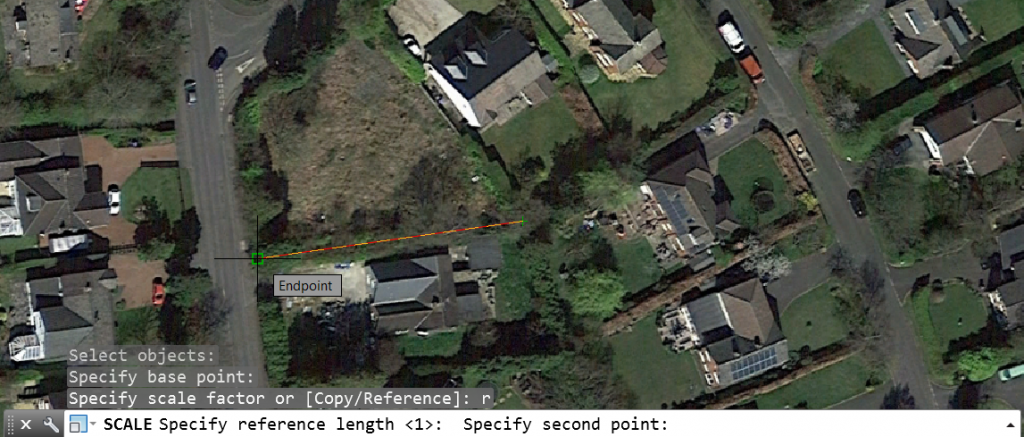

Once you have inserted an image into your AutoCAD drawing the next step is to resize the image to the correct size. This can be achieved with a degree of accuracy by knowing just one real-world measurement.

In our example let’s assume we know the length of the boundary running West to East is 44,500mm.

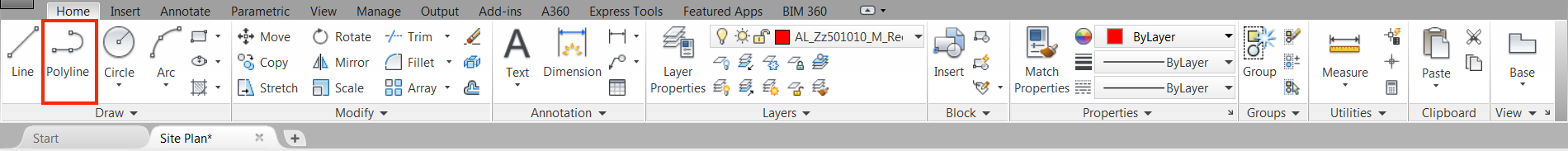

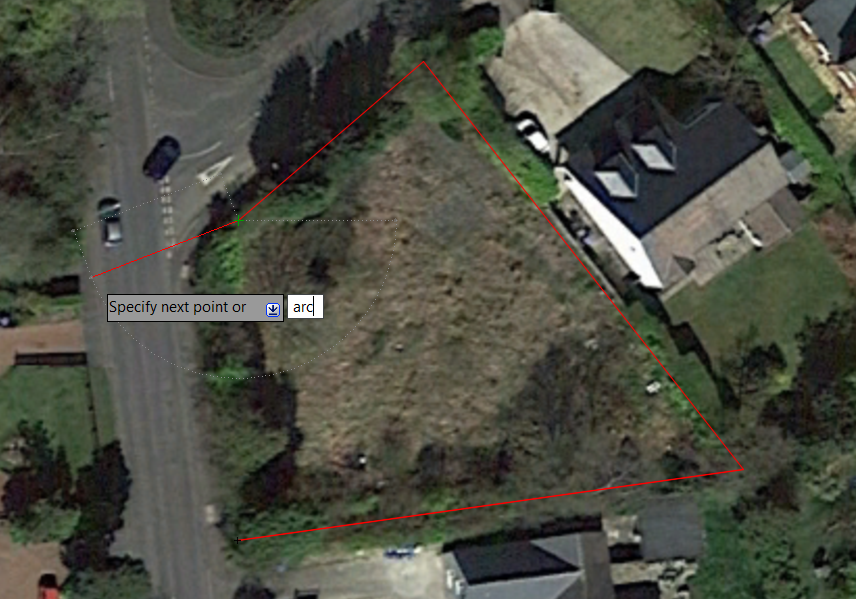

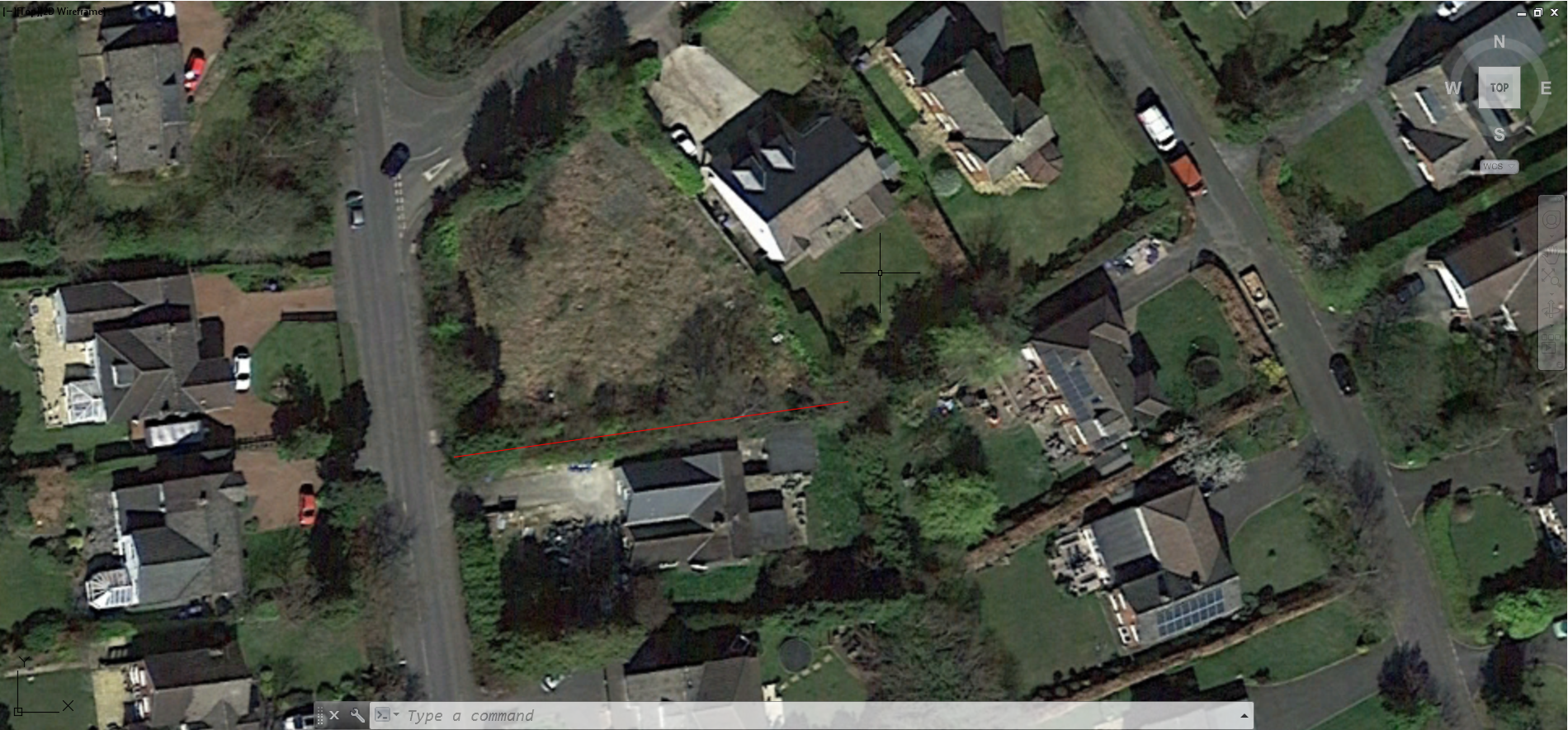

Begin by drawing the West to East boundary line on top of our base layer aerial image:

AutoCAD Training Article - Ch 2 - Screenshot 5

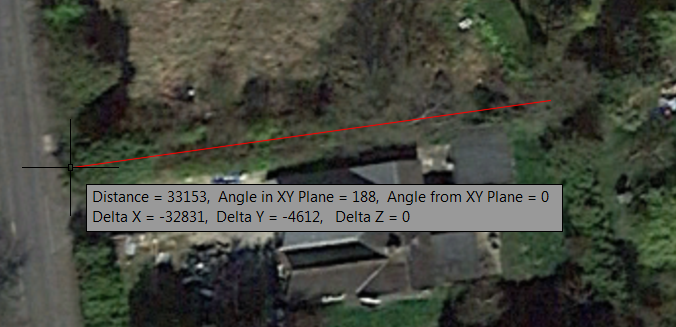

You will see that the aerial image is not to scale. In this example the boundary line we have drawn measures 33,153mm rather than 44,500mm:

AutoCAD Training Article - Ch 2 - Screenshot 6

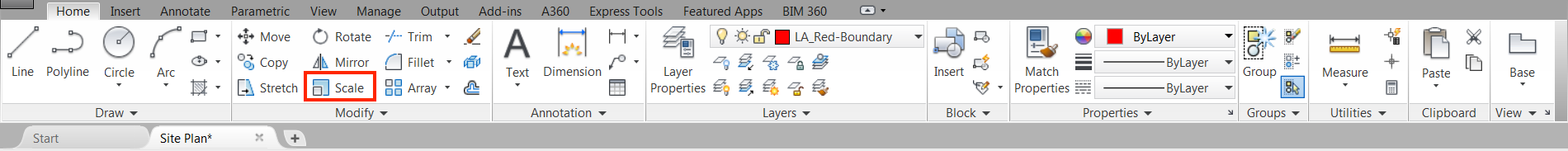

The Scale tool can be used to resize the image to the correct size. First, select Scale from the Modify panel of the Home tab ribbon:

AutoCAD Training Article - Ch 2 - Screenshot 7

When prompted to select objects, choose the image you wish to resize. Alternatively, first select the image and type SCALE↵.

At this stage you will be prompted to specify a base point. Usually people select one of the endpoints of the line that they have just drawn as the base point.

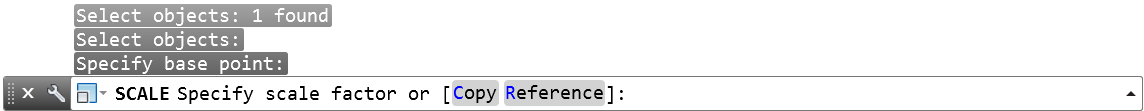

The next prompt will require you to enter a scale factor unless you choose to scale based upon a reference. As we want to scale using a reference line, type R (for reference) and hit enter:
AutoCAD Training Article - Ch 2 - Screenshot 8

When prompted to specify a reference length click on one of the endpoints of the reference line, you will then be prompted to specify the second point. Do this by selecting an endpoint at the other end of the line:

AutoCAD Training Article - Ch 2 - Screenshot 9

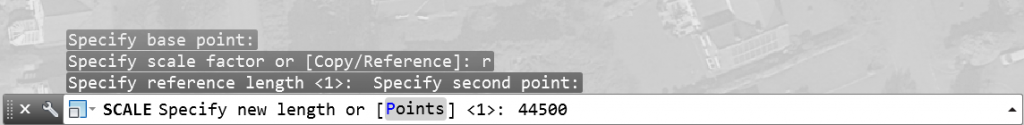

Complete the command by entering the known real-world length of the line, which in this case we know is 44,500mm. Don’t forget to hit enter.
AutoCAD Training Article - Ch 2 - Screenshot 10

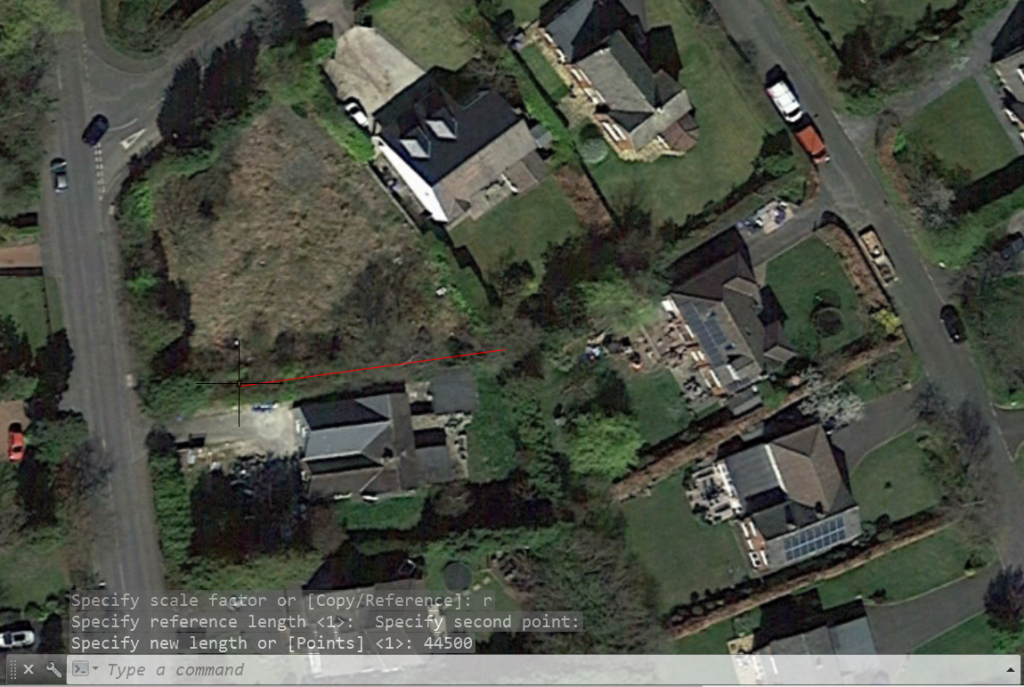

By completing this process, the image should now have been scaled appropriately. In this case, the West to East boundary now measures 44,500mm, as it does in the real-world.
AutoCAD Training Article - Ch 2 - Screenshot 11

Note: As in the example, you should be able to observe that the reference line has maintained the same length while the image has been resized. You can now stretch, scale or redraw the reference line if it is to remain a feature of your drawing, as in this example, or simply delete it if you used it purely for reference purposes.

Tip 10 – Determining a Known Length

In cases where a real-world length is not known, there are a number of things you can do to determine one. Usually the best way is to install Google Earth and navigate to your site. Using the ruler tool contained within the software you can then take a measurement of a recognisable feature.

Note: when the site boundary is not clearly defined, such as in this example due to overhanging trees or hedges, consider measuring something more definable such the length of a neighbouring building or the width of a road. Remember, this measurement will be used as a point of reference to scale your image but can be deleted after you have done so.



FURTHER READING

SCALING IMAGES TO SIZE: AUTODESK ARTICLE

Drawing Site Conditions

Once you have inserted your aerial image you can begin adding existing site conditions. This can be done by tracing over the features shown in the image.

In this example, we will begin by drawing the site boundaries. In this example, they are not clearly defined, due to overhanging hedges and trees, however for conceptual modelling this method can often prove more than accurate enough.

Use the Polyline tool where possible; it will allow you to create a connected sequence of segments as one single object. The Polyline tool is found within the Draw panel of the Home tab ribbon:

AutoCAD Training Article - Ch 2 - Screenshot 12

Alternatively, type the command POLYLINE↵ or PL↵.

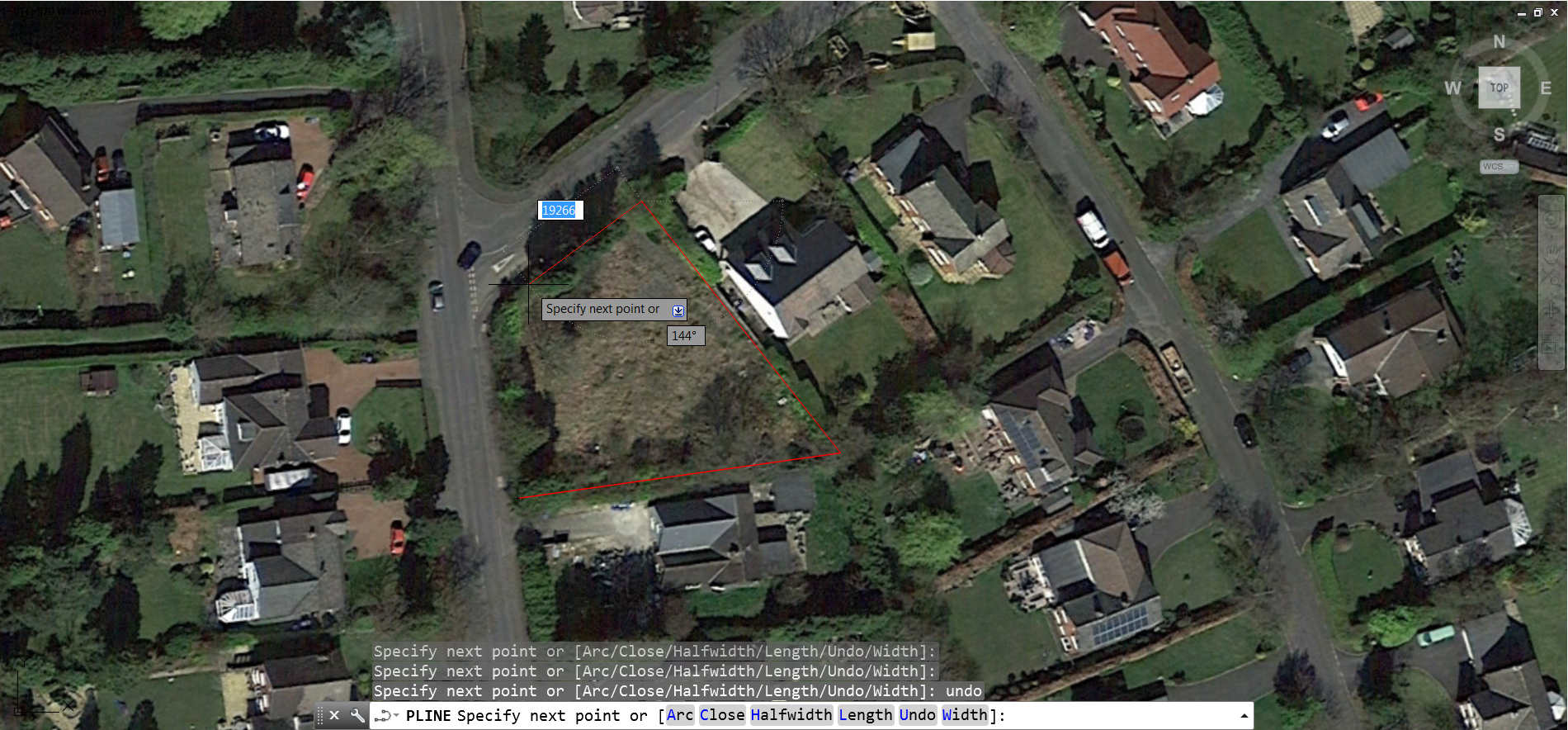

In our example, we have begun tracing the site boundary using a polyline. The process is simple, it involves specifying one point after another as you work around perimeter of the site one step at a time:

AutoCAD Training Article - Ch 2 - Screenshot 13

Often with site plans and boundaries you will come across features that cannot be captured by a straight line. The Polyline tool, for the most part, can handle this.

In this example, we have reached a corner that is rounded rather than angular. At this point you can switch to arc mode by typing ARC↵ or A↵:

AutoCAD Training Article - Ch 2 - Screenshot 14

Note: you are still in the process of executing a polyline. If you make a mistake at this stage, refrain from hitting Esc and instead enter opt for undo.

Switch back to a line by typing Line↵ or L↵, and close the polyline by typing CLOSE↵ or CL↵.

Don’t worry too much if individual points aren’t exactly right they can be adjusted after you have completed the polyline.

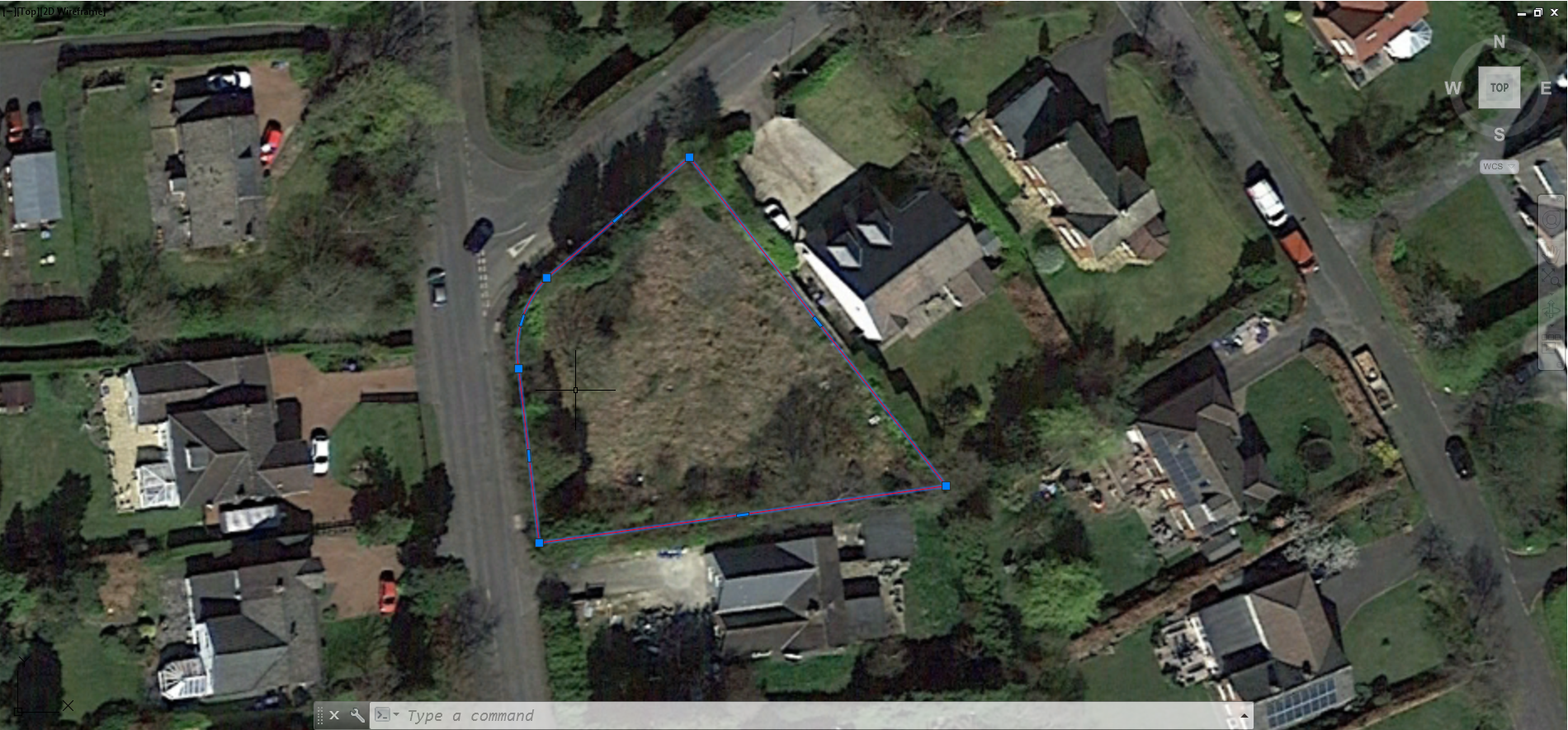

To adjust the polyline click on it once it has been created, click on the nodes and drag as appropriate or add new nodes by left-clicking on an existing node.
AutoCAD Training Article - Ch 2 - Screenshot 15

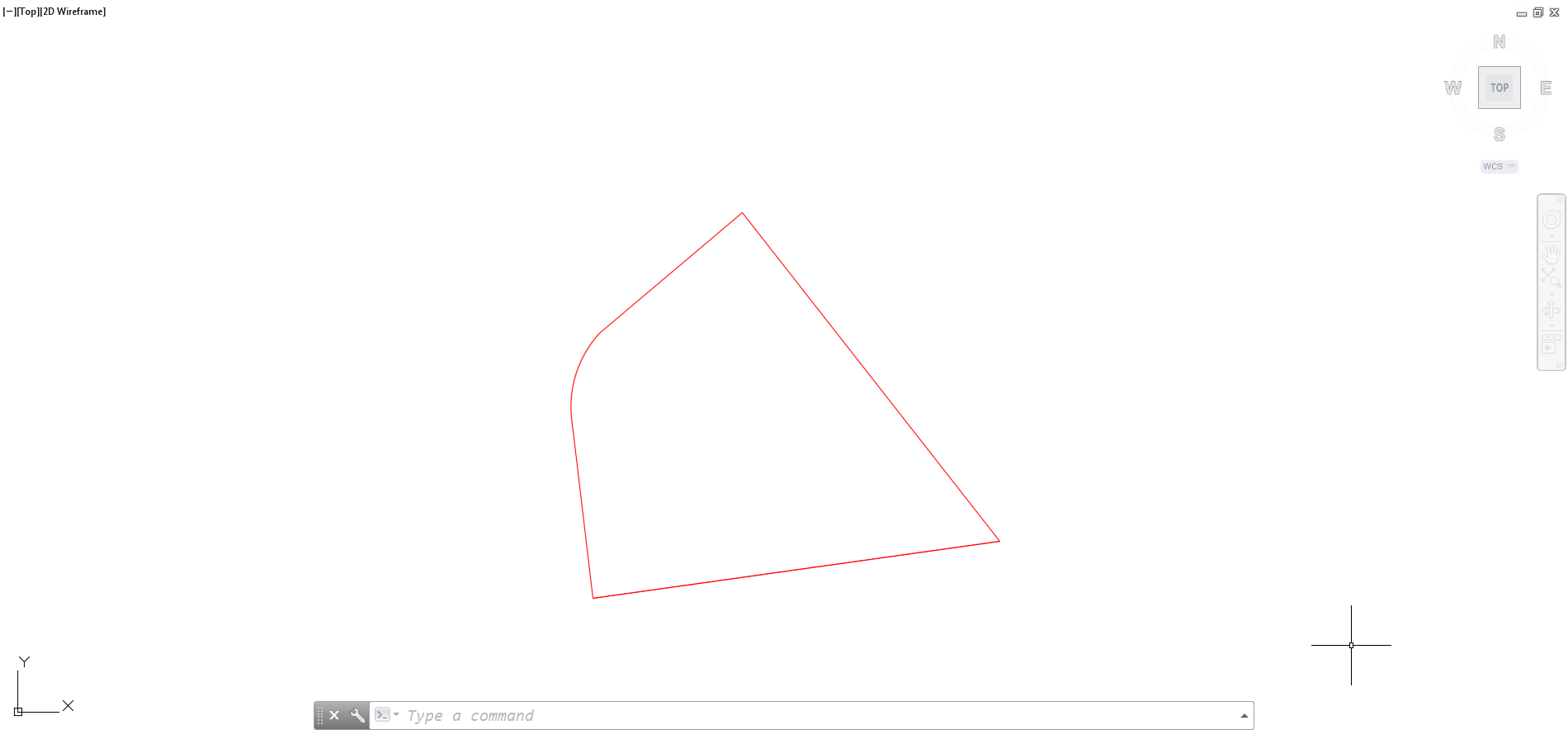

By hiding the image layer or pressing down on the mouse scroll-wheel you can see the shape you have created:

AutoCAD Training Article - Ch 2 - Screenshot 16

Using these basic principles you should be able to trace over many of the features that make up a site plan, fairly quickly producing something that looks like this:

AutoCAD Training Article - Ch 2 - Screenshot 17



FURTHER READING

TRACING AN IMAGE FILE: CCAD VIDEO
OLD BUT DETAILED POLYLINE TUTORIAL: MYCADSITE ARTICLE

NEXT - Chapter 3 - Developing The Drawing

Introduction & Contents

Now that you have prepared your site plan, this chapter will look at developing your project further. We’ll take a look at how you can take your organisation, management and design within AutoCAD to the next level.

SECTIONTIPS INCLUDED IN SECTION
File ManagementTip 11 – Updating External References
Layer StandardsTip 12 – Sharing Layers Between Drawings
Tools Of The TradeTip 13 – Make Full Use of the Align Tool
Tip 14 – Don’t Overlook The Match Properties Tool

File Management

Creating a site plan is the simple bit. Your project is about to get much more complex. A building project, as a bare minimum, will typically consist of floor plans, roof plans, elevations, and site plans not to mention structural plans, technical detailing and interior design.

Before you begin creating all these various aspects of your project in one drawing file it is recommended that you give some thought to file management. Good practice dictates that every elevation, floor plan, technical detail or otherwise should be drawn in a separate drawing file.

If you have not worked on a live project, this probably does not make sense. How do you show a floor plan within a site plan if they are in separate drawing files, or create elevations by placing them side-by-side with floor plans to ensure accuracy?

The answer is external references, generally referred to as xRefs within AutoCAD. Using xRefs different drawings can be attached to a host drawing file. This links the drawings to the host drawing without actually inserting them into the host drawing.

This system is more efficient than having all geometry in one drawing file, particularly when it comes to coordination between multiple parties. For example, it would be difficult to coordinate a single drawing file if an architect, engineer and interior designer were all working from one drawing. The same would apply if you were working on a site that included multiple buildings. It makes sense to have things in separate files and attach them to a host file.

In the example project, Corner Drive, we can place the site plan drawn in Chapter Two as an external reference within a host file. All further project developments can then be added as other external references.

To add an xRef, select “Attach” from the Reference panel of the Insert ribbon tab and choose the file you wish to insert:

AutoCAD Training Article - Ch 3 - Screenshot1

Alternatively, type the command ER↵, in the command line and select the Attach option located in the top left corner of the External References palette.

AutoCAD Training Article - Ch 3 - Screenshot2

Note: the External Reference palette is the primary location for managing all things related to xrefs within a drawing.

Next you will be prompted with the Attach External Reference dialogue. It is again recommended that you set the Path Type option to “No Path”. This will mean that so long as the image is saved within the same folder as your AutoCAD drawing file it will be imported each time you open the drawing.

By selecting an external reference file, in this case a ground floor plan (Architectural GF), it will appear within your host drawing file:

AutoCAD Training Article - Ch 3 - Screenshot3

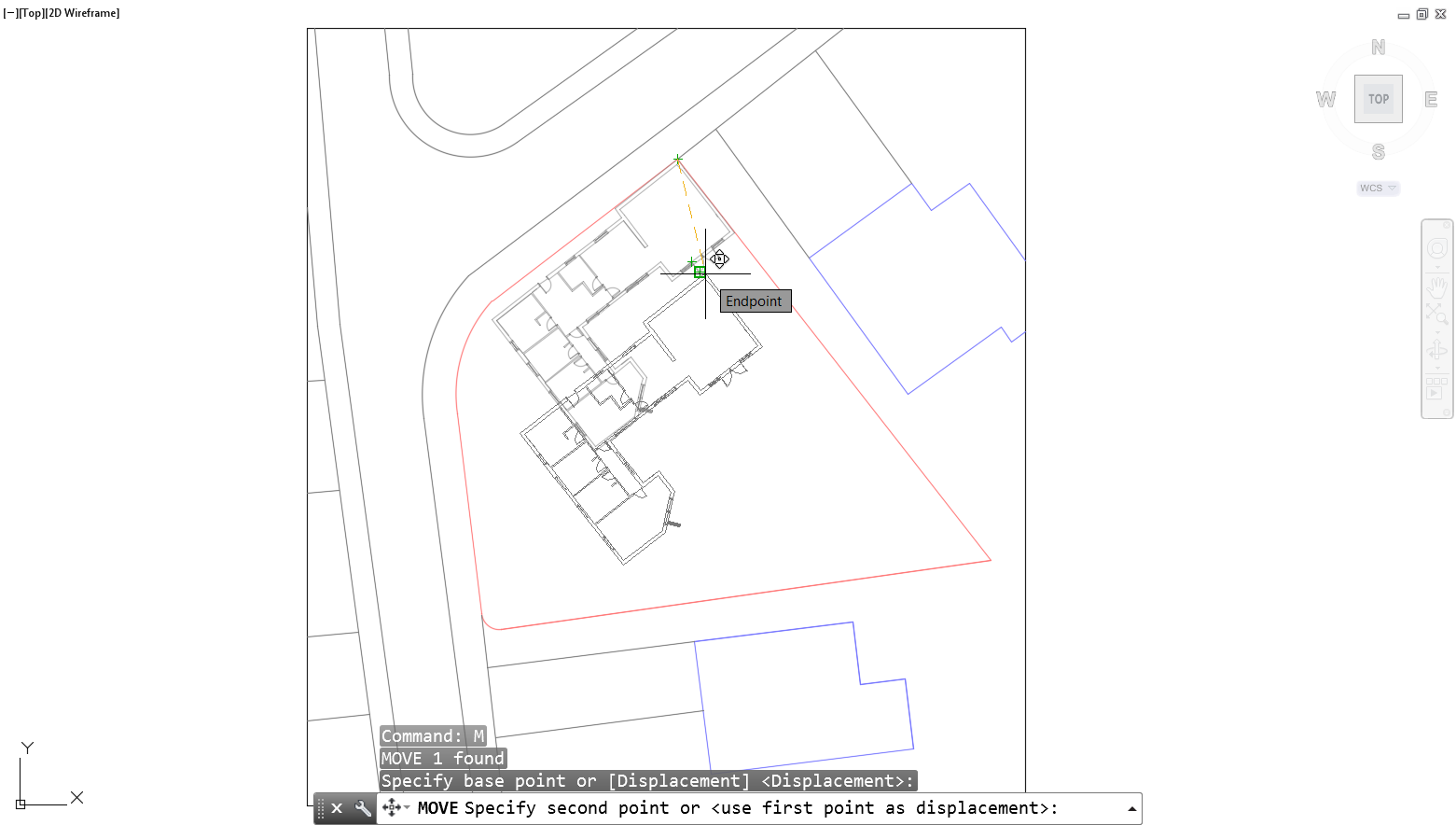

As with any other object within AutoCAD an external reference can be moved or rotated to suit the needs of the project. In this case, we have moved it to sit on the site, and we will need to use the Align tool described in more detail later in this article to adjust its position further:

AutoCAD Training Article - Ch 3 - Screenshot4

Tip 11 – Updating External References

External references are not intended to be the finished article, changes can be made to them in many ways. One way is by making changes directly to the external reference file. To do this click on the xRef and select “Open Reference” from the Edit panel of the External Reference ribbon tab:

AutoCAD Training Article - Ch 3 - Screenshot5

This will open the xRef file as a separate drawing. Any changes made here will need to be saved, and you will need to reload the external reference from the External Reference palette. Do this by right-clicking on the reference and selecting “Reload”:

AutoCAD Training Article - Ch 3 - Screenshot6

Note: you should refrain from renaming the external reference if possible, as a name that does not match the original external reference will mean AutoCAD cannot automatically find and reload the file.

The method of editing external references directly and then reloading them back into the main host drawing is perfect when multiple parties are working on the same project. For example, a landscape designer may begin draughting the external arrangement once they have received a drawing containing the footprint of the building from the architect. It can then be reloaded back into the host drawing later, without disturbing the architect’s workflow.

Other times you may just want to edit the external reference directly from the main host drawing, to do this select “Edit Reference In-Place” from the Edit panel of the External Reference ribbon tab:

AutoCAD Training Article - Chapter 3 - Screenshot 7 - New

Save the changes and have them reflected in the main host drawing by selecting “Save Changes” from Edit Reference Panel of the External Reference ribbon tab.



FURTHER READING

MANAGING AND SHARING AUTOCAD FILES: CAD NOTES ARTICLE
WORKING WITH XREFS: GRADCAD ARTICLE (NOT THE EASIEST TO READ)



Layer Standards

Before you begin creating geometry, as well as paying attention to file management, good practice also dictates that we should give some time to setting-up and considering layers. Many users find organising layers tiresome and time-consuming but rush it at their peril.

Not sticking to a well-defined layer convention, however, goes against many industry codes of practice. Including BS1192, a UK standard that suggests CAD layers should conform to a naming convention, so as to allow information to be grouped and easily found by anybody that may wish to access it.

In the United States the National CAD Standard, suggests that layer names should be created based on a maximum of 5 data fields. Including 2 compulsory fields: Discipline (2 characters max) and Major Group (4 characters); as well as optional fields referred to as Minor Group 1 (4 characters max), Minor Group 2 (4 characters max) and Phase (1 character max). For example:

A – Door – Full-Dims – E

<Discipline> – <Major Group> – <Minor1-Minor2> – <Phase>

Note: In this example A dictates that the layer belongs to the Architectural discipline and that its Major Group is of that of a door. The optional Minor Group 1, Minor Group 2 and Phase fields have also been completed to give an additional level of description to the layer.



Tip 12 – Sharing Layers Between Drawings

You should use the same layer standard on all of your drawings. To save time setting this up each and every time you could transfer them to your new drawing using the DesignCenter. The DesignCenter acts as a central location for accessing the content of all open drawings, amongst other things.

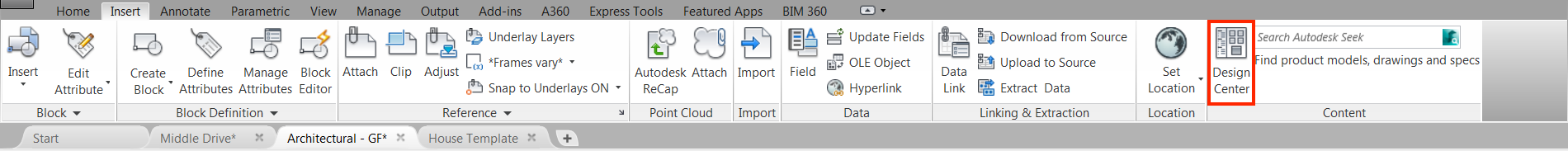

For example, if you have a drawing that you use as a template or a drawing with the layers you wish to recreate, open it alongside your current drawing. Then select DesignCenter from the Content panel of the Insert ribbon tab.

AutoCAD Training Article - Ch 3 - Screenshot8

Select the Open Drawings tab from the DesignCenter dialogue (A). By selecting the maximise toggle of the required drawing, in this case, House Template, you can find the Layers option and access all of the layers the drawing contains (B):



AutoCAD Training Article - Ch 3 - Screenshot9

Select the layers you require and bring them into your current drawing by dragging them to the drawing space of the drawing you wish to insert them into:



AutoCAD Training Article - Ch 3 - Screenshot10

The layers you dragged from the DesignCenter will now appear within the Layer Properties Manager palette of your current drawing, ready for use.
&nbsp:

FURTHER READING

UK BIM STANDARDS: ARTICLE

US CAD STANDARDS: FULL DOCUMENT

CAD STANDARD LAYERS NAMES: SHORT ARTICLE FROM DOUGLAS SEEDIER



Tools Of The Trade

The Modify panel contained within the Home ribbon of AutoCAD is the location of many of the tools you will find useful when draughting a building in AutoCAD.

Table 2 below gives a summary of the most used tools in the Modify panel, together with relevant shortcut keys:

ToolShortcutDescription
OffsetOUsed to offset an object at a specified distance or through a point. The offset tool is perfect for offsetting walls to the desired thickness.
TrimTRUsed to cut lines to meet the edges of other lines.
MirrorMIUsed to create a mirrored copy of selected objects. The mirror tool is perfect for changing the direction of door openings.
AlignALAligns objects with other objects. The align tool is perfect for aligning building plans with site boundaries.
FilletFRounds or fillets the edges of two intersecting lines.

Table 2 – Modify Panel Tools and Shortcuts

Tip 13 – Make full use of the Align Tool

Perhaps the most often overlooked tool within the Modify panel is the Align tool. As an example, we can use it to align the Corner Drive ground floor plan xref, with the boundary line of the site plan. To do this, first select Align from the Modify panel of the Home ribbon tab:

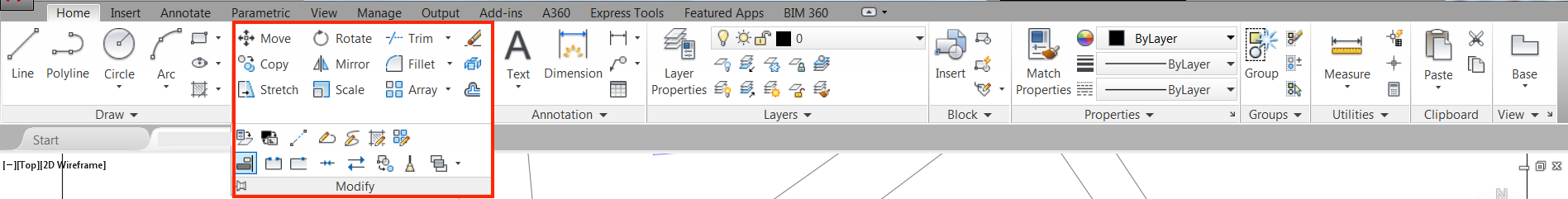

AutoCAD Training Article - Ch 3 - Screenshot11

Note: An alternative approach is to type AL↵.

Within the command line, you will then be prompted to specify a first source point. Do so by clicking on a particular point along the object you want to move. In this case, a particular corner of the building, and follow this up by specifying a destination point when prompted within the command line:

AutoCAD Training Article - Ch 3 - Screenshot12

After you have specified a source point for the object you want to move and a destination point, specify the second source point and a second destination point. In this example the second source point is the opposite corner of the building block:

AutoCAD Training Article - Ch 3 - Screenshot13

Complete the align command by twice hitting enter. In this example the building block has now aligned itself perfectly with the boundary line of the site and we can begin to move it into position as required:

AutoCAD Training Article - Ch 3 - Screenshot14

What many users do not realise about the Align tool, is that as well as aligning objects with other objects it can also be used to rotate and scale objects. Making it possible to move, rotate and scale objects with one single command rather than individually. This can be very useful when placing doors and windows. Rather than rotating, moving and scaling or adjusting the geometry of the door or window you can simply use the align tool as you become more familiar with how it works.

Tip 14 – Don’t Overlook the Match Properties Tool



While the DesignCenter is useful for copying layers from one drawing to another, the Match Properties tool is perfect for copying layers from one object to another within the same drawing.

Let’s assume you have been giving the task of placing objects on the correct layers. Don’t waste time on tediously clicking and changing each layer.

Type MA↵ and click a source object as prompted in the command line. In this case a door that is already known to be the correct layer:

AutoCAD Training Article - Ch 3 - Screenshot15



Next, click the destination objects i.e. the objects you want to change. Notice how it matches the properties of the source object with the destination objects like for like. Now simply move around your drawing changing objects by matching them with source object:

AutoCAD Training Article - Ch 3 - Screenshot16

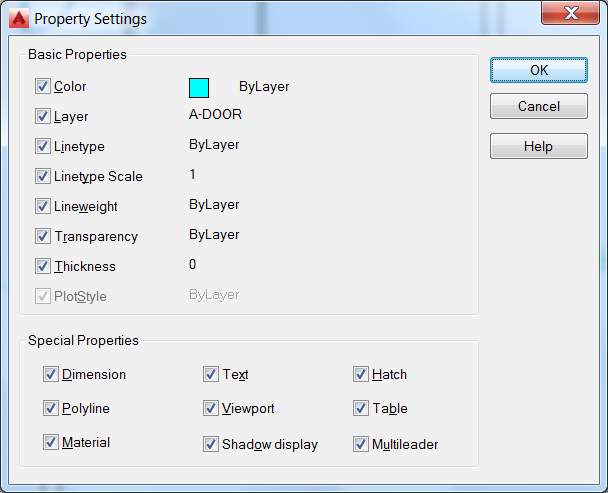

Note: If you don’t want to match all of the properties of the source object type S↵ in the command line, when MA is active, to open the Settings dialogue. From the Properties Settings dialogue you can pick the properties to be copied from the source object to the destination object:

AutoCAD Training Article - Ch 3 - Screenshot17

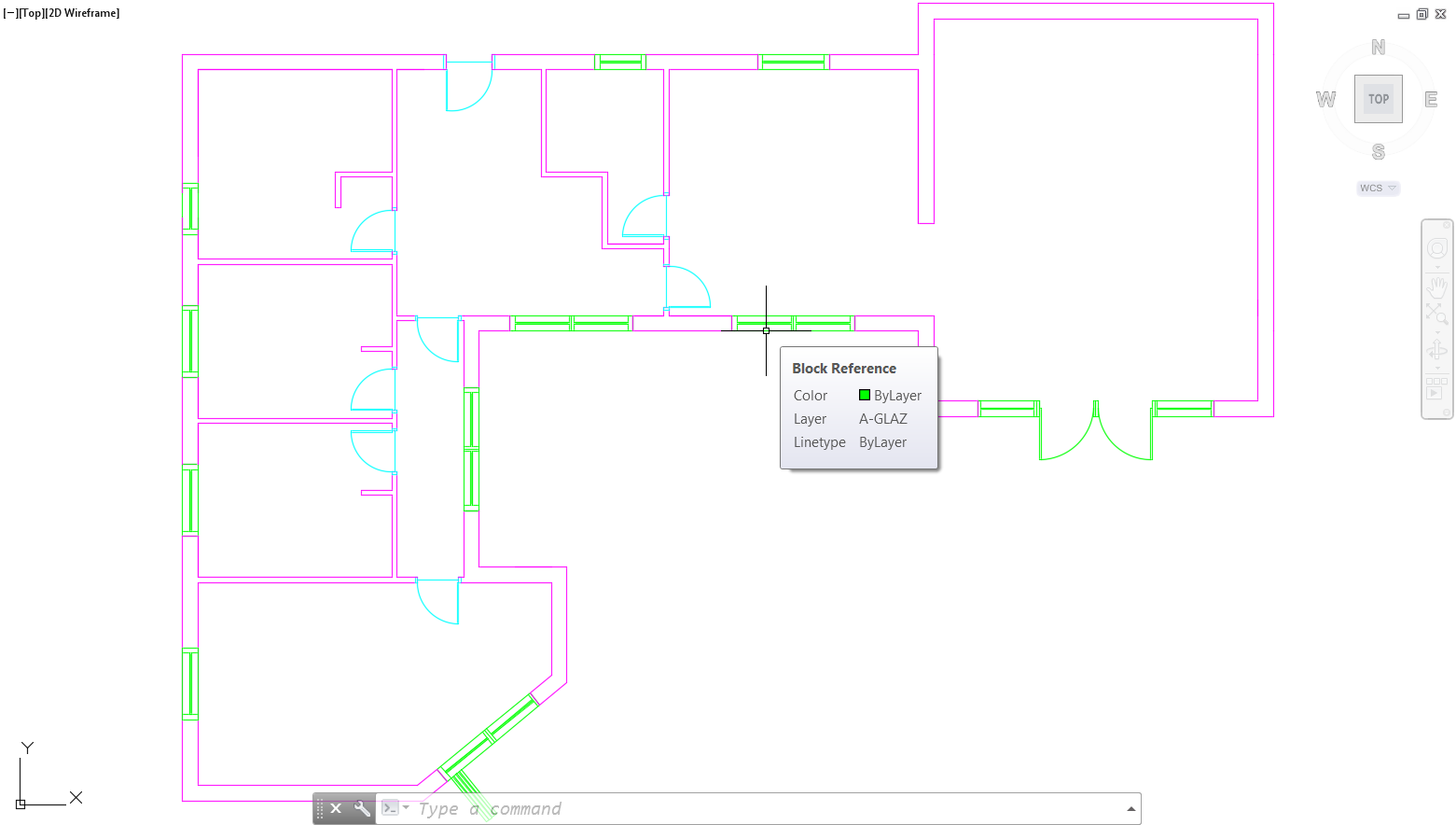

In the example of the proposed Corner Drive ground floor plan we were very quickly able to bring the layers up to scratch by using the Match Properties tool to change objects on Layer 0 to the required layer:

AutoCAD Training Article - Ch 3 - Screenshot18



FURTHER READING

A GIF ILLUSTRATING USING THE ALIGN TOOL: ALIGN ARTICLE
USING THE MATCH PROPERTIES TOOL: SOURCE CAD ARTICLE

NEXT - Chapter 4 - Detailing The Drawing

Introduction & Contents

The previous chapters looked at site planning and the process of developing drawings in AutoCAD. This chapter will now look at some of the processes associated with populating floor plans and adding detail using hatching. As in the other chapters, the Corner Drive project will be used to do so.

SECTIONTIPS INCLUDED IN SECTION
CAD BlocksTip 15 – Dynamic Blocks
Tip 16 – Reduce The Size Of A Drawing Using Blocks
Tip 17 – Create Your Own Block Library
HatchingTip 18 – Make your own Hatch Pattern
Tip 19 – Setup Default Hatch Settings
Tip 20 – Filling The Background Of CAD BLocks

CAD Blocks

When detailing drawings in AutoCAD, many of us are all too fast at jumping to adding geometry without any thought for how it can be modified later. Yes, we all want to finish a drawing faster, but this should not be at the cost of good-practice and the time later spent making modifications to your drawing later.

It is highly recommended that all repeatedly occurring components in a drawing be inserted as blocks. In the example project, Corner Drive, blocks have been used to populate the ground floor plan. The doors, windows, furniture and fittings are all inserted as CAD blocks:

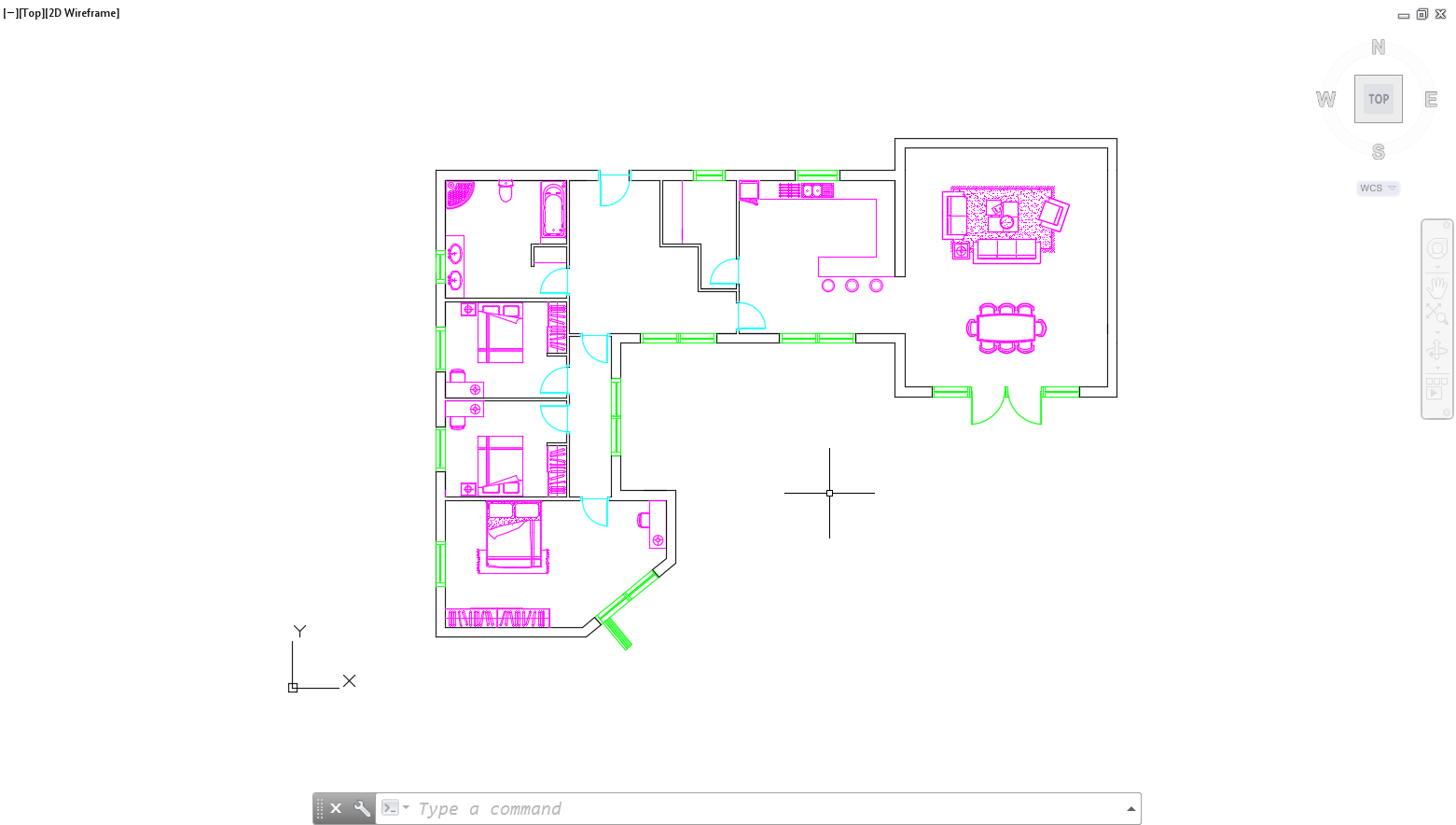

AutoCAD Training Article - Ch 4 - Screenshot 1

Note: The furniture was taken from an existing block library, while doors and windows blocks were modelled in place.

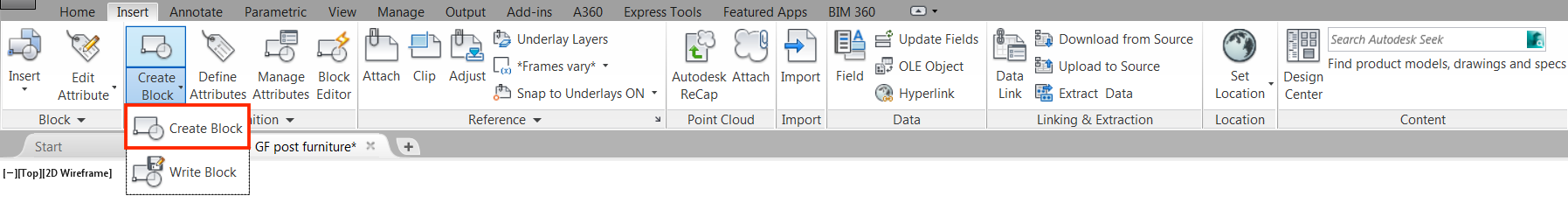

To model a block from scratch, first, model the geometry you would like to turn into a block. Next, select Create Block from the Block Definition Panel of the Insert ribbon tab:

AutoCAD Training Article - Ch 4 - Screenshot 2

Alternatively, type the command BLOCK↵. This will open the Block Definition dialogue box:

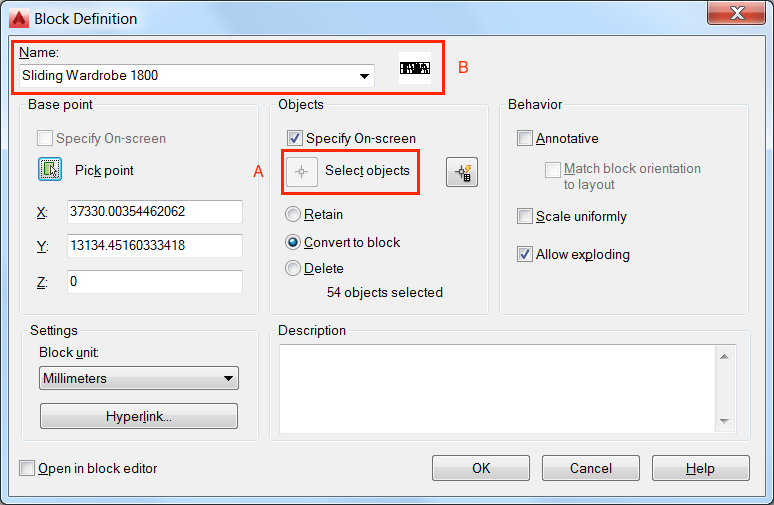

AutoCAD Training Article - Ch 4 - Screenshot 3
If you had not already selected the geometry you wish to turn into a block, do so by clicking on the “Select objects” button of the Block Definition dialogue box (A).
Next, give your block a name (B). In this example we have named the block “Sliding Wardrobe 1800”. However as with layers, it would be a good idea to set up a naming convention for referencing and accessibility purposes.
Note: You can now go ahead and click the OK button to create your block. Though it is recommended that you first specify a Base Point. This will make things easier when it comes to inserting blocks. The simplest way to add a Base Point is the Pick-point button (C).

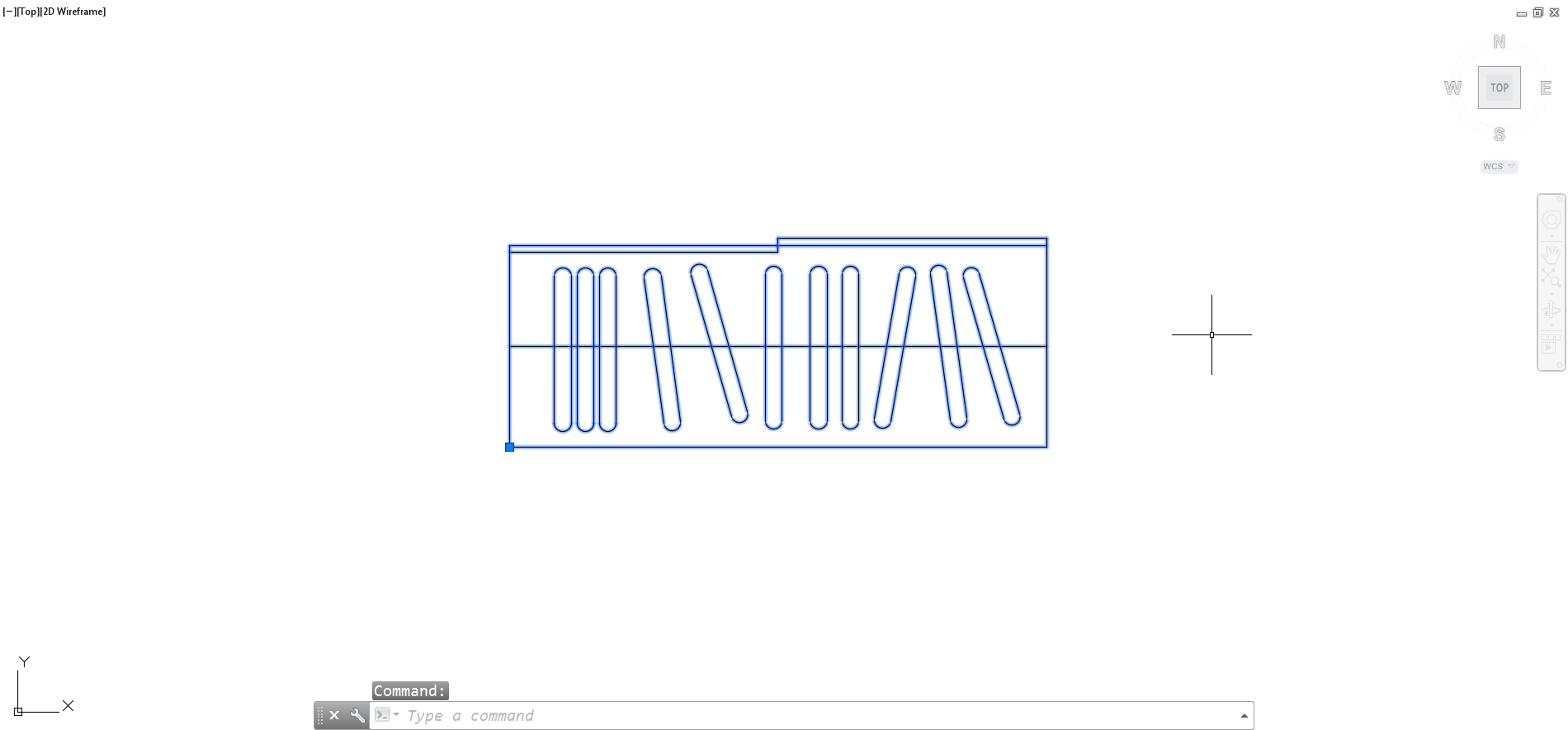

After clicking OK the block has been created. Feel free to delete the leftover geometry, which now appears as a single object when selected, or move it to the required position:
AutoCAD Training Article - Ch 4 - Screenshot 4
Notice how the block now features in the Insert dialogue of the Insert ribbon tab. Add it to your drawing by selecting the “More Options” button contained within the Block panel of the Insert ribbon tab:
AutoCAD Training Article - Ch 4 - Screenshot 5
It will feature along with all of the other blocks in your drawing. Simply select it from the list and click OK within the Insert dialogue:



    Tip 15 – Take Things to the Next Level with Dynamic Blocks

One of the most often overlooked features of blocks is the ability to take things to the next level and create dynamic blocks. Dynamic Blocks, unlike the standard block, can take on a predefined level of intelligence that allows the user to quickly change the blocks visible appearance.

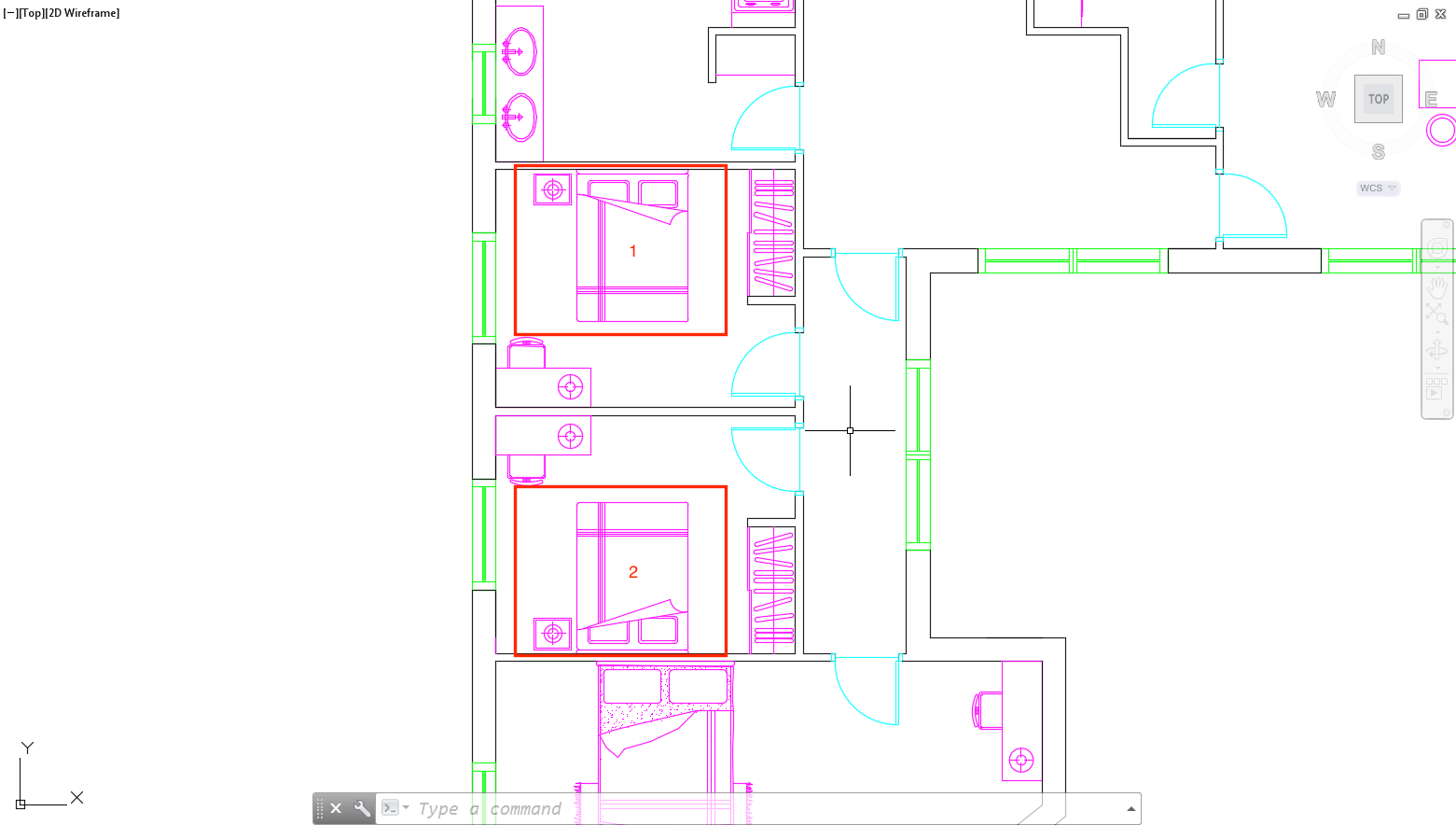

As an example, in the case of the Corner Drive project, the “Double Bed” block, which includes a bedside drawer has been used twice:
AutoCAD Training Article - Ch 4 - Screenshot 7
Let’s assume however that we do not want one of the beds to have a bedside drawer. You can add a parameter that allows the user to turn on or off the visibility of the bedside drawer, thus creating a dynamic block.
Though altering the visibility of objects is among one of the most basic things you can do with a dynamic block. The table below shows what else can be achieved by creating dynamic blocks and the parameter + action(s) combinations required to do so:

ParameterAvailable Action(s)Uses
PointMove, StretchMove, or Stretch by selecting a predefined point of an object
LinearMove, Scale, Stretch, ArrayMove, Scale, Stretch, or Array based on a linear distance.
PolarMove, Scale, Stretch, Polar Stretch, ArrayMove, Scale, Stretch, Polar Stretch, or Array based on polar distance.
XYMove, Scale, Stretch, ArrayMove, Scale, Stretch, Polar Stretch, or Array at specified XY location.
RotationRotateRotate to a predefined angle
FlipFlipMirror along an axis
AlignmentNoneAlign perpendicular or tangentially to aother objects
VisibilityNoneTurn on or off the visibility of certain objects within a block.
Base PointNoneDefine a base point of the dynamic block. To make its use in drawing mode easier.

Table 3 Possible Parameter + Action combinations

Note: At the most complex level dynamic blocks are a combination of parameters + actions. In the case of changing a blocks visibility, however, no action is needed and only a parameter is required.
To create a dynamic block with a visibility parameter, first, open the Block Editor from the Block Definition panel of the Insert ribbon tab.
Alternatively, type the command BEDIT↵.
This will open the Block Editor mode you should notice that the background of what was the drawing space changes colour. By default the Block Authoring Palette should appear to the left of the screen:

Note: If the Block Authoring Palette does not appear, select Authoring Palettes from the Manage panel of the Block Editor ribbon tab.

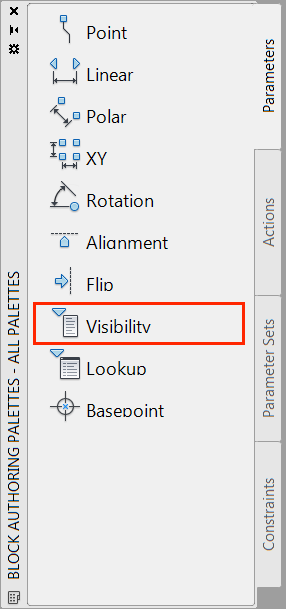

To add the option of changing the visibility of the double bed block, to hide/unhide the drawer, select the Visibility parameter from the Parameters tab of the Block Authoring Palette:
AutoCAD Training Article - Ch 4 - Screenshot 9

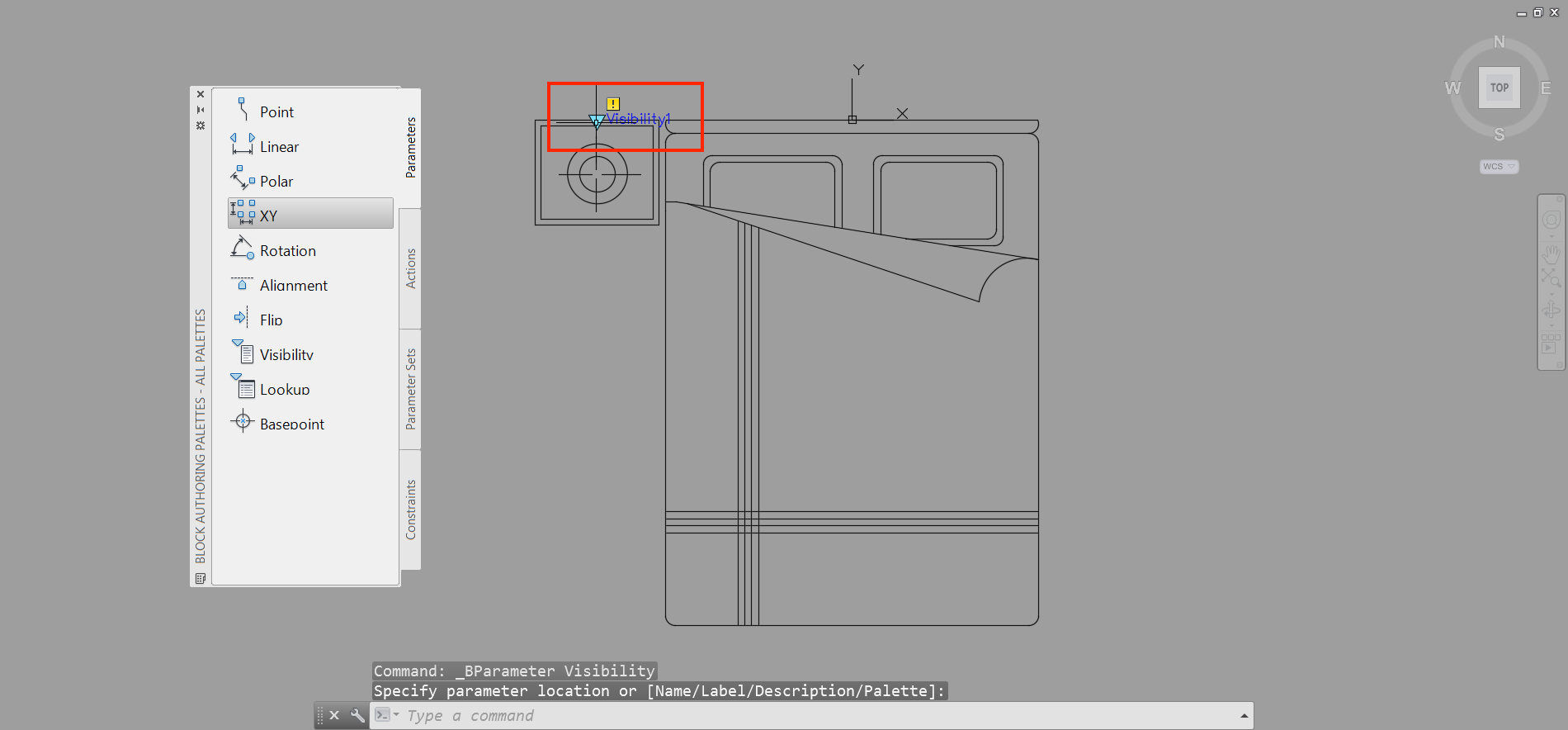

As prompted select the location where you would like the option for triggering visibility parameter within your drawing to appear:
AutoCAD Training Article - Ch 4 - Screenshot 10
With the visibility parameter added, select “Visibility States” from the Visibility panel of the Block Editor ribbon tab:
AutoCAD Training Article - Ch 4 - Screenshot 11
This will open the Visibility States dialogue. Add a new visibility state by selecting “New”. Name it as appropriate in this case “No Drawer”, to indicate the drawer should not be visible.
AutoCAD Training Article - Ch 4 - Screenshot 12
After clicking “OK” this will add the visibility state to the Visibility States dialogue. Feel free to change default VisabilityState0 to a more appropriate name and add additional visibility states as required:
AutoCAD Training Article - Ch 4 - Screenshot 13

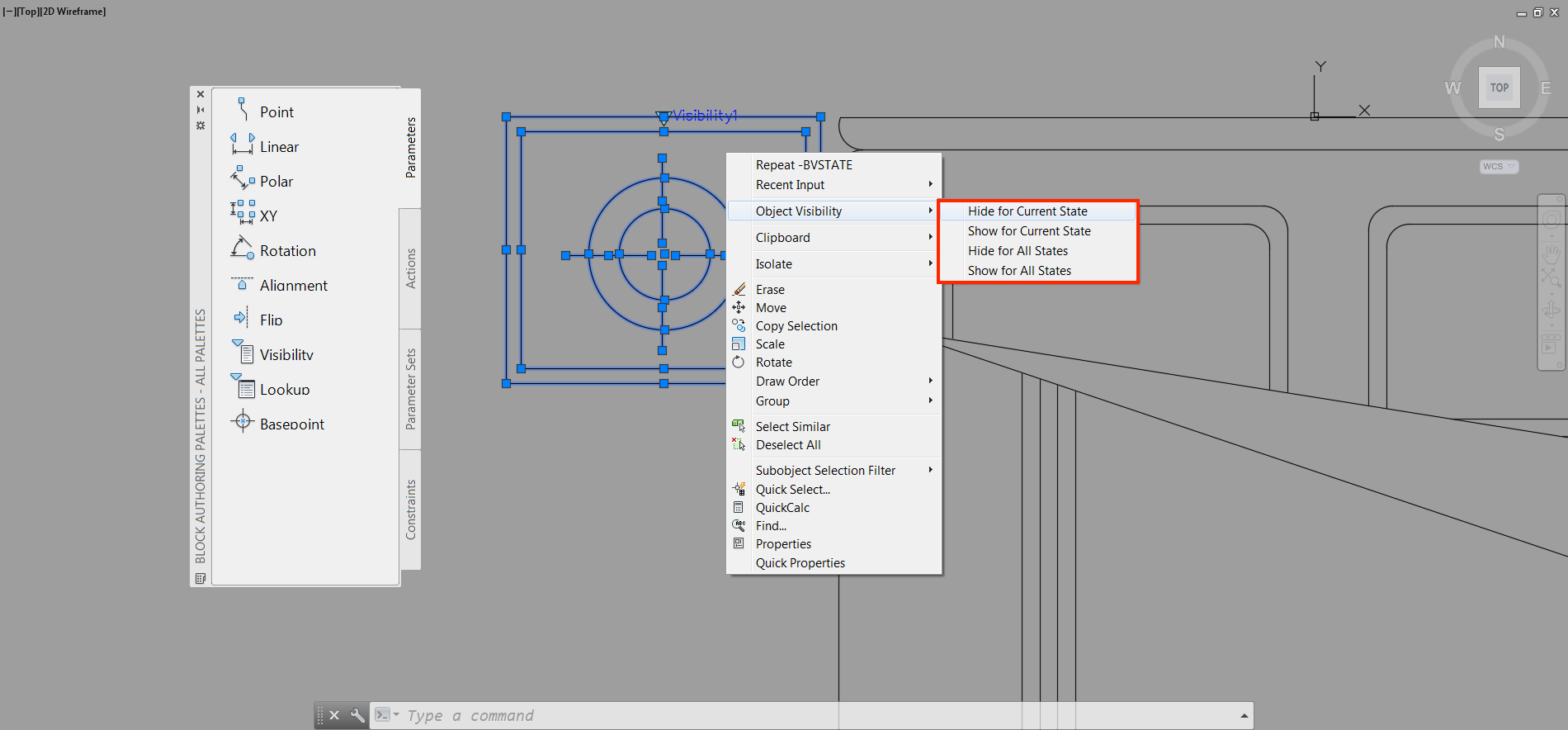

The newly created state should now be set to current. By selecting the objects you wish to hide/unhide and selecting Object Visibility, by right clicking, you can now access a number of options including “Hide for Current State”:
AutoCAD Training Article - Ch 4 - Screenshot 14

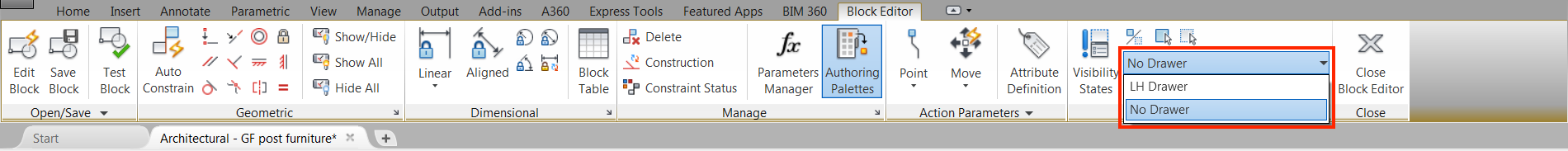

Note: The current state will have a small tick beside its name. To change what state is current use the “Set Current” button in the Visibility States dialogue or select as appropriate from the drop-down menu within the Visibility panel of the Block Editor tab:
AutoCAD Training Article - Ch 4 - Screenshot 15
After exiting Block Editor Mode and saving the changes made, you should now be able to hide or unhide the bedside drawer by clicking on the parameter point you previously added and selecting the visibility state you created:
AutoCAD Training Article - Ch 4 - Screenshot 16

Tip 16 – Reduce the File Size of a Drawing using Blocks

The file size of your drawing is important, for ease of sharing the drawing you should look to ensure it does not become too large. This is an especially important aspect when it comes to detailing the drawings of large-scale projects.

Thankfully CAD blocks help us achieve this. By creating and inserting CAD blocks, the geometry data of a component is only stored in memory once. When you use the block in a drawing more than once, it will require less geometry data to display the block, as the software will be able to recognise that it has already been inserted and thus knows how to handle it.

Dynamic blocks are an excellent way to reduce file size further, in particularly when using different blocks for what is only a variation of the same block.

Tip 17 – Create your Own Block Library

If you have not already begun building a block library, it is recommended that you do so. It can be an invaluable resource, for you or your colleagues on future projects, and you can tap into throughout your career.

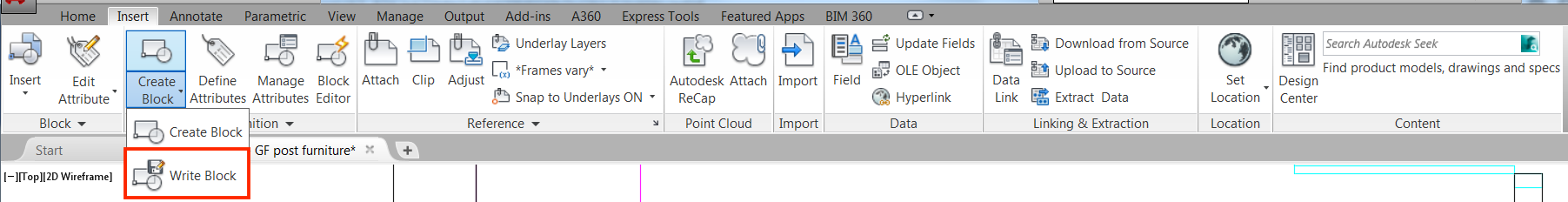

To save blocks externally select “Write Block” from the Block Definition panel of the Insert ribbon tab:

AutoCAD Training Article - Ch 4 - Screenshot 17

Alternatively, type the command WBLOCK↵.

Select “Block” (A) from the Write Block dialogue and choose the block you want to save from the dropdown list (B). By clicking OK the block will save to the specified location in .dwg format:

AutoCAD Training Article - Ch 4 - Screenshot 18

Note: Blocks saved in this way should be reinserted into other drawings using the Insert dialogue, for parameters and other block attributes to be maintained. Open the Insert dialogue by selecting Insert from the Block panel of the Insert ribbon tab or type the command INSERT↵.



    FURTHER READING

BLOCK TROUBLESHOOTING: DESIGN AND MOTION ARTICLE
DYNAMIC BLOCKS TUTORIAL: CADMASTERS ARTICLE



    AUTOCAD BLOCK LIBRARIES

CAD BLOCKS FREE (SOME FREE, SOME PAID)
CAD BLOCKS.NET
BLOCKS FOR ARCHITECTS (PAID)
CADCORNER
DRAFTSPERSON.NET
ARCAT BLOCKS AND DRAWINGS
CADAPLUS

Hatching

Hatching has long been used in architectural drawings to add detail, sadly for many though it is also one of the most frustrating features of AutoCAD. Thankfully more recent versions of AutoCAD have aimed to simplify the process of adding hatch patterns.

Introduced as part of AutoCAD 2008, the Annotative Scale feature is one of the biggest steps towards a simplified process of adding hatches. When enabled Annotative Scale automatically adjusts the scale of the hatch to the viewport scale. This reduces the needed to fiddle with the scale settings of the hatch but also means when you change the viewport size your hatch scale is automatically adjusted.

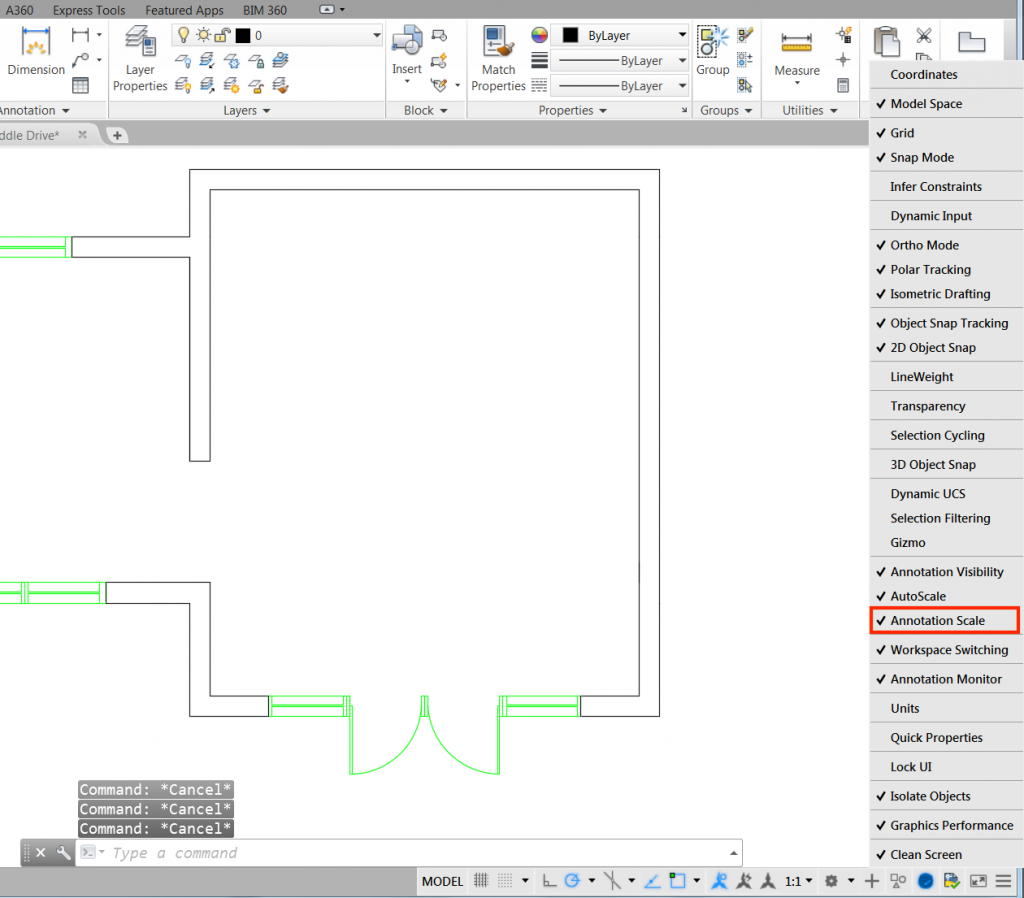

To add a hatch using the Annotative Scale feature there is, however, a few things you need to do in advance. The first of which is to check that that your drawing has “Annotative Scale” enabled within the Customisation menu, contained at the bottom right of your screen:

AutoCAD Training Article - Ch 4 - Screenshot 19

Next, make sure all of the scales you require are within the scale list of your drawing. Add any missing scales or delete unneeded scales by selecting “Custom”:

AutoCAD Training Article - Ch 4 - Screenshot 20

Note: Standard scales for metric architectural drawings are 1:10, 1:20, 1:50, 1:100, 1:200, 1:500, 1:1250. Others are most likely unneeded, and can be deleted.

You are now ready to add hatch patterns to your drawing. Make sure your current scale is set to 1:1, as the scale you first draw your hatch in will be used to determine the scale factor of the hatch thereafter. 1:1 will reduce the possibility of future complications.

Next, select “Hatch” from the Draw panel of the Home ribbon tab. Alternatively, type the command HATCH↵.

Enable the Annotative Scale feature by clicking on the Annotative button, and choose the pattern you would like to add to your drawing. In this case, the pattern is AR-CONC:

AutoCAD Training Article - Ch 4 - Screenshot 22

Note: Because the Annotative Scale feature is enabled the scale of the hatch should look about right. If this is not the case, simply adjust the scale factor within the Properties panel of the Hatch Creation ribbon tab.

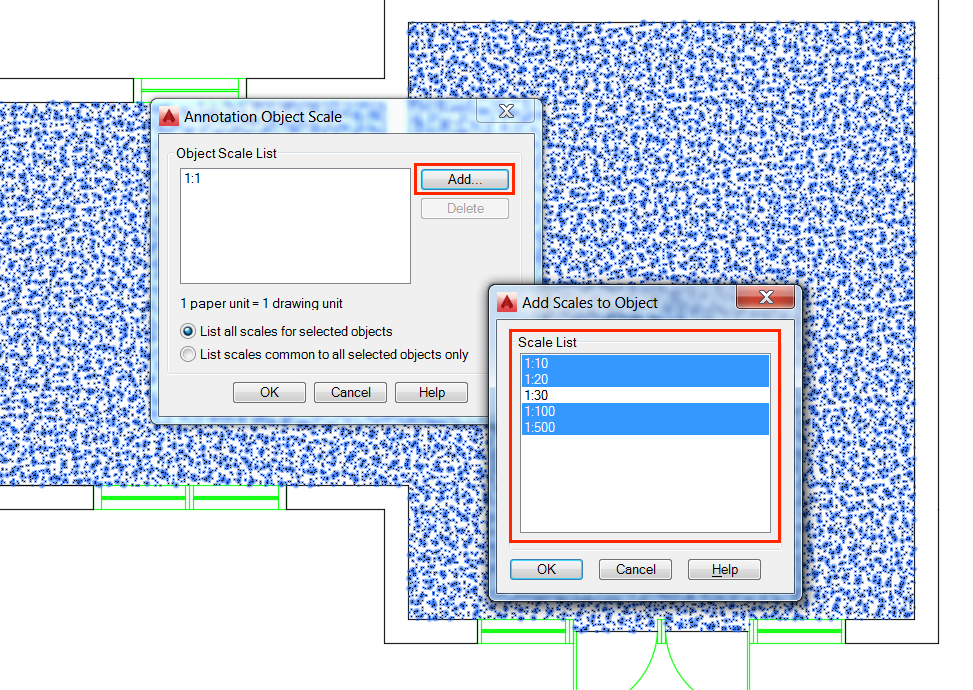

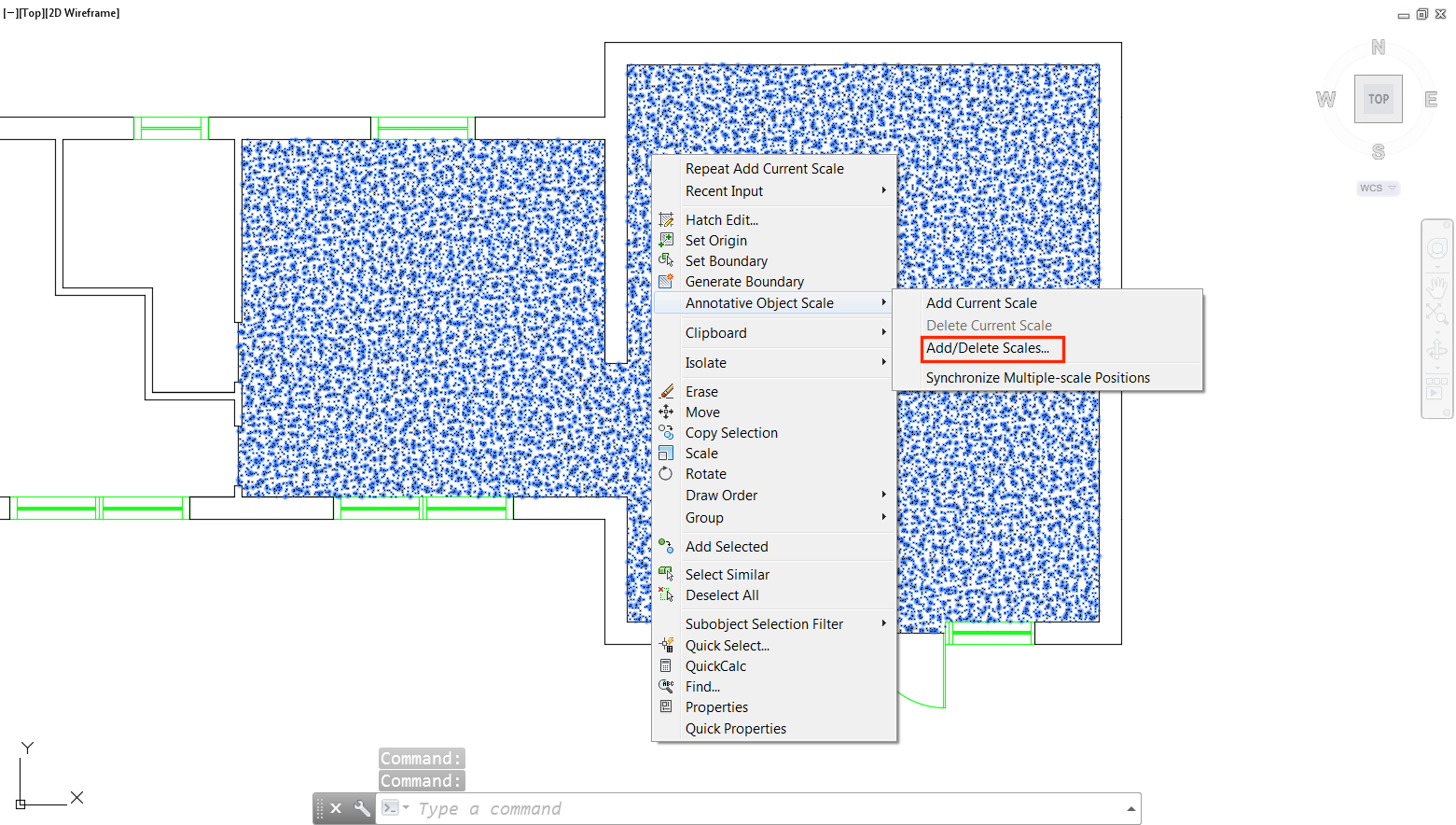

Now that the hatch pattern has been added to your drawing we need to define what viewport scales that you want it to automatically adjust to. To do this right click on the hatch and select “Annotative Object Scale”. The option of “Add/Delete Scales” should be available:

AutoCAD Training Article - Ch 4 - Screenshot 23From the Annotation Object Scale dialogue, a list of the viewports currently available will appear. Select the viewports you wish the hatch pattern to adapt to and click OK:

AutoCAD Training Article - Ch 4 - Screenshot 24

Now when you adjust the viewport scale this will adjust the hatch scale. If the hatch scale is not suitable adjust it accordingly within the Properties panel of the Hatch Editor ribbon tab. Alternatively, type the command HATCHEDIT↵.

Note: thanks to Annotative Scale when you change the hatch scale, it will now only change in the current viewport scale. Meaning there is no need to set up layer views or continually tinker with the scale of drawings.

Tip 18 – Make your own Hatch Pattern

Making a hatch pattern from scratch used to be complicated in AutoCAD, and required you to write code to create it. While this option is still available, you can now also make a custom AutoCAD Training Article - Ch 4 - Screenshot 25hatch pattern using the Super Hatch feature of the software.

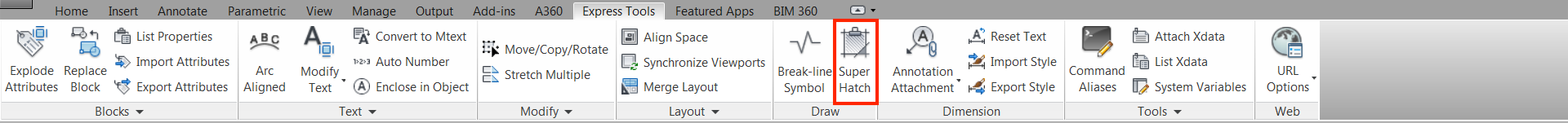

To use the Super Hatch feature, select it from the Draw panel of the Express tools ribbon tab:



Alternatively, type the command SUPERHATCH↵.

As well as being an excellent way to create a new hatch pattern, which you will need to insert as a block, Super Hatch also allows you to hatch using an image.

Hatching using an image is perfect for those of us that like to go the extra mile when creating floor plans and other drawings. By using it, you can quickly add images to give a more realistic idea of floor finishes. For example, let’s assume you wanted to add a photo realistic concrete texture to your floor plan.

First, select “Image” from the Super Hatch dialogue. Next, specify the image you would like to insert. After clicking through the Attach Image dialogue you will be prompted to specify the lower left insertion point of the image (A), followed by the scale factor (B):

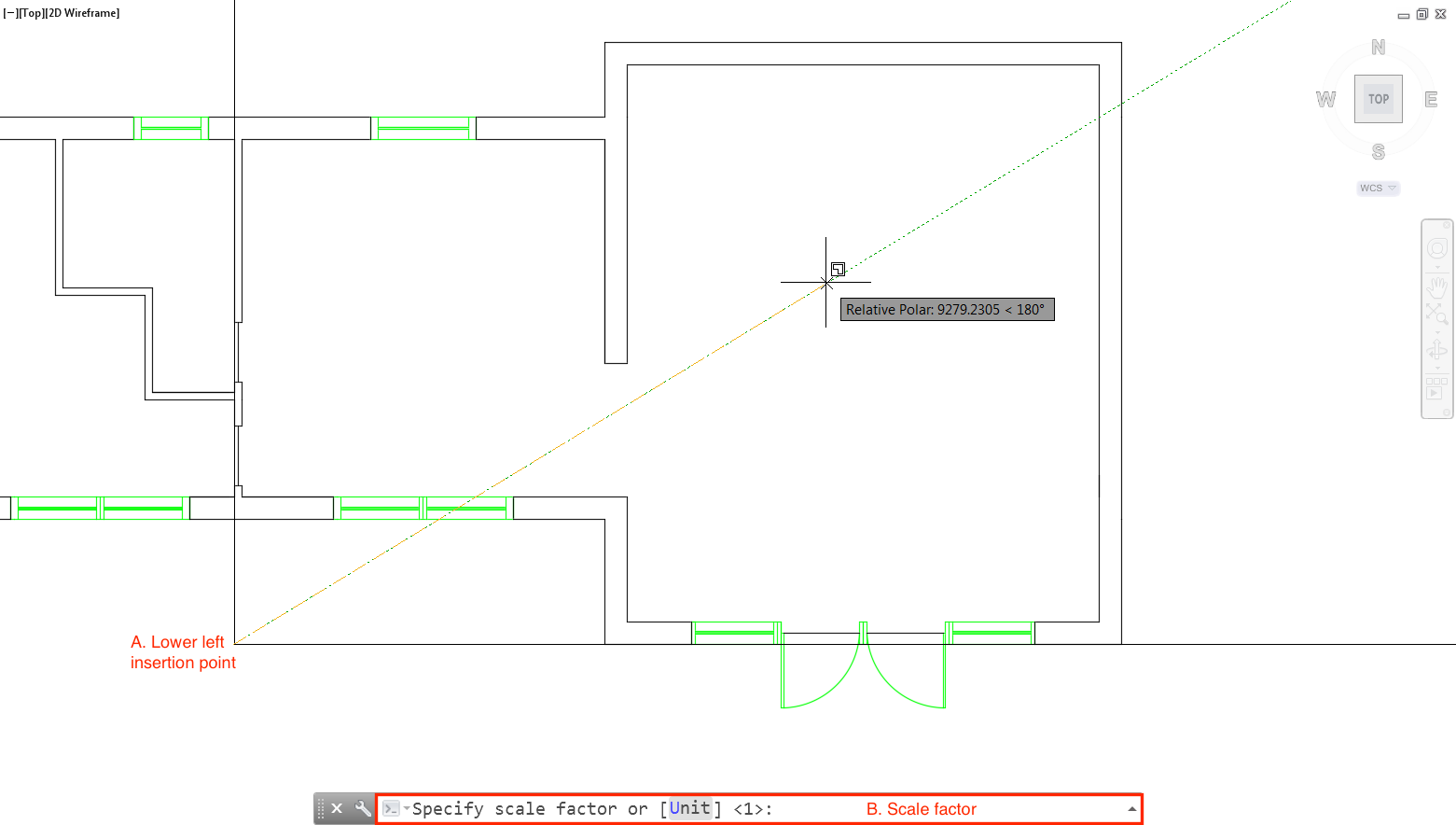

AutoCAD Training Article - Ch 4 - Screenshot 26

In this case, the image scale is 30. As this is enough to fill the living room floor space comfortably, without stretching the image too much. If you are satisfied with the placement type Y:



When prompted select the area you would like to hatch. Don’t be put off by an error message that may read “Error analysing internal islands” at this stage. This is often irrelevant, and you can proceed to confirm the internal point you have selected:

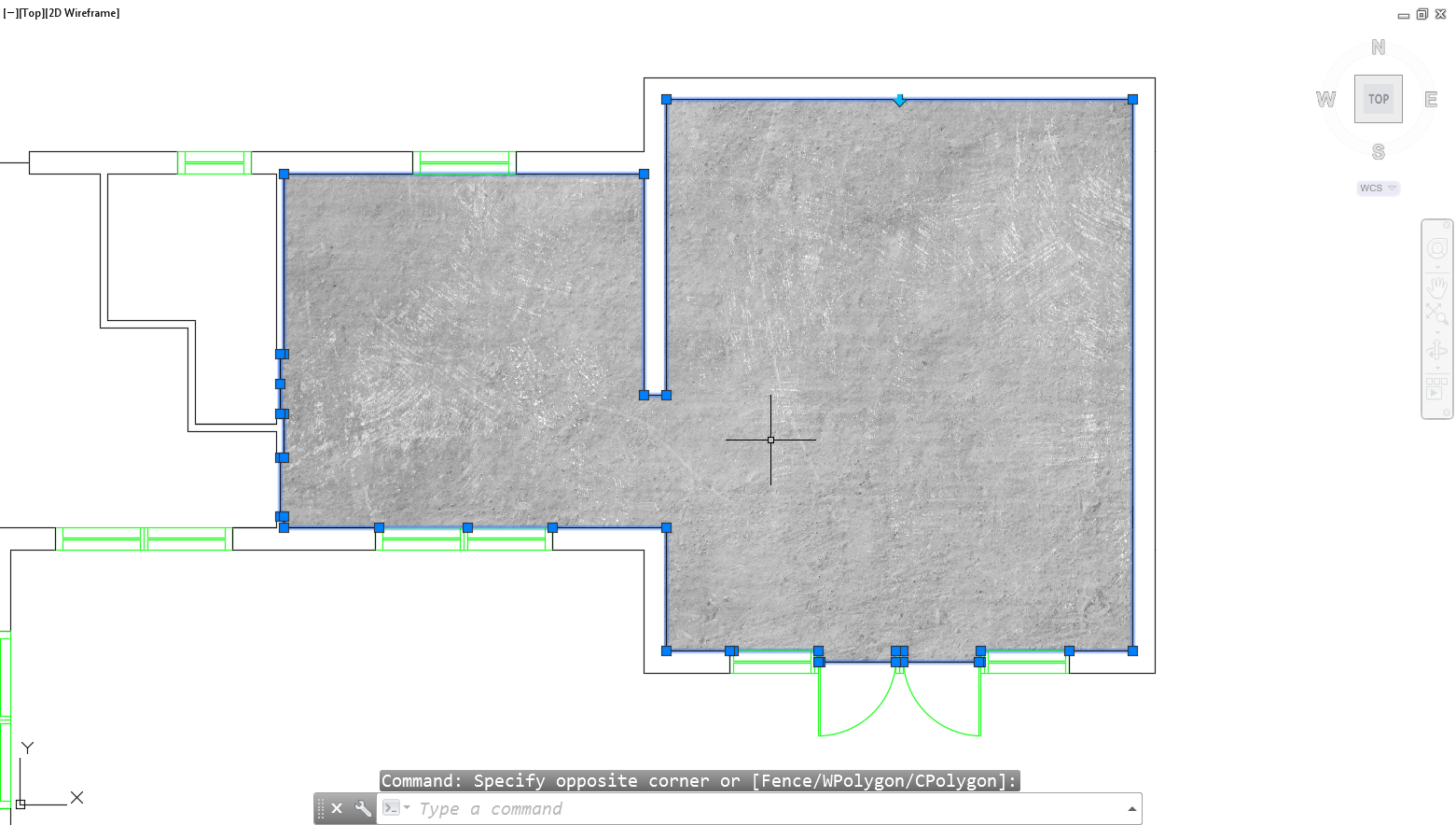

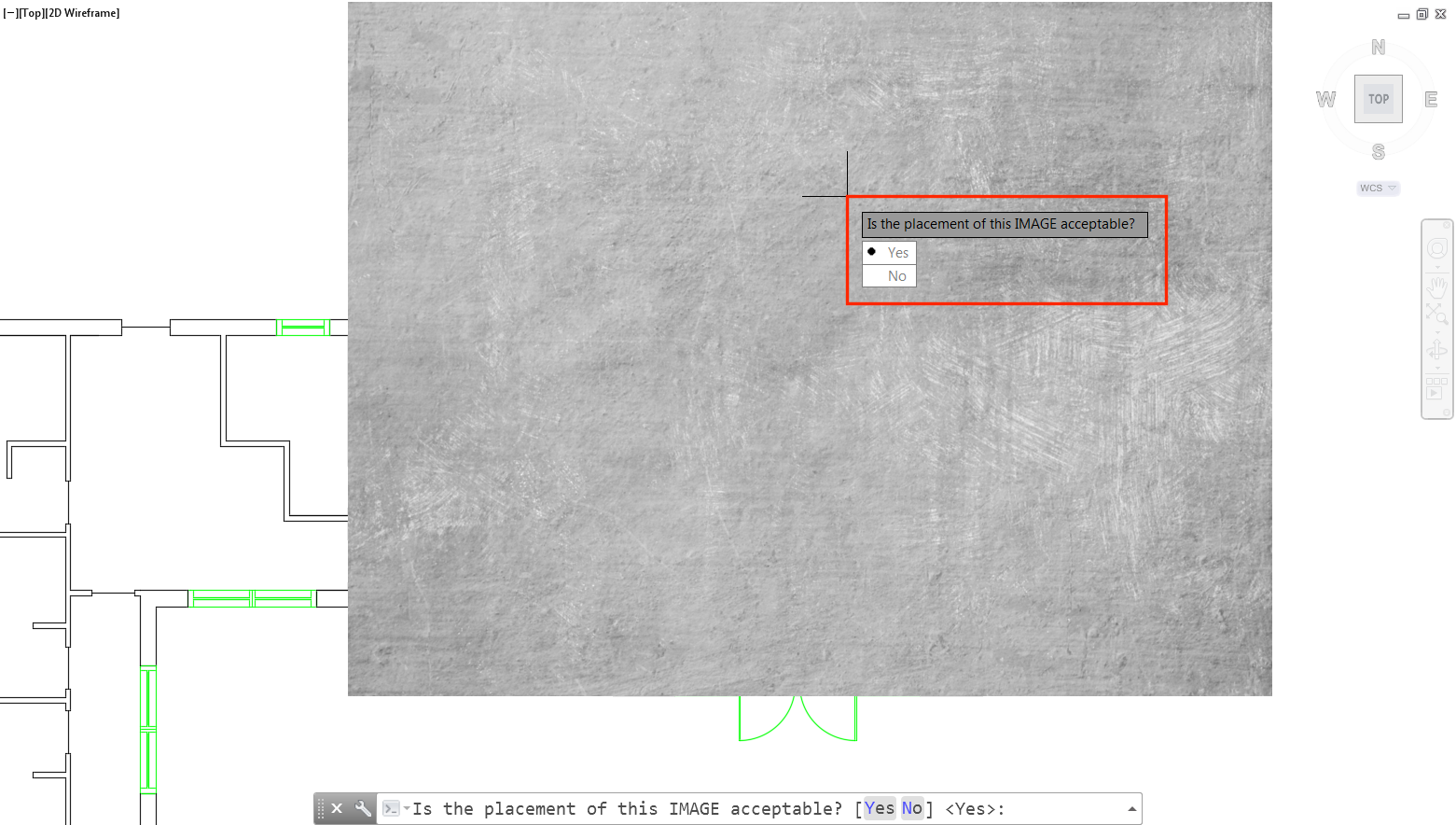

AutoCAD Training Article - Ch 4 - Screenshot 27AutoCAD Training Article - Ch 4 - Screenshot 29

 Tip 19 – Set Up Default Hatch Settings

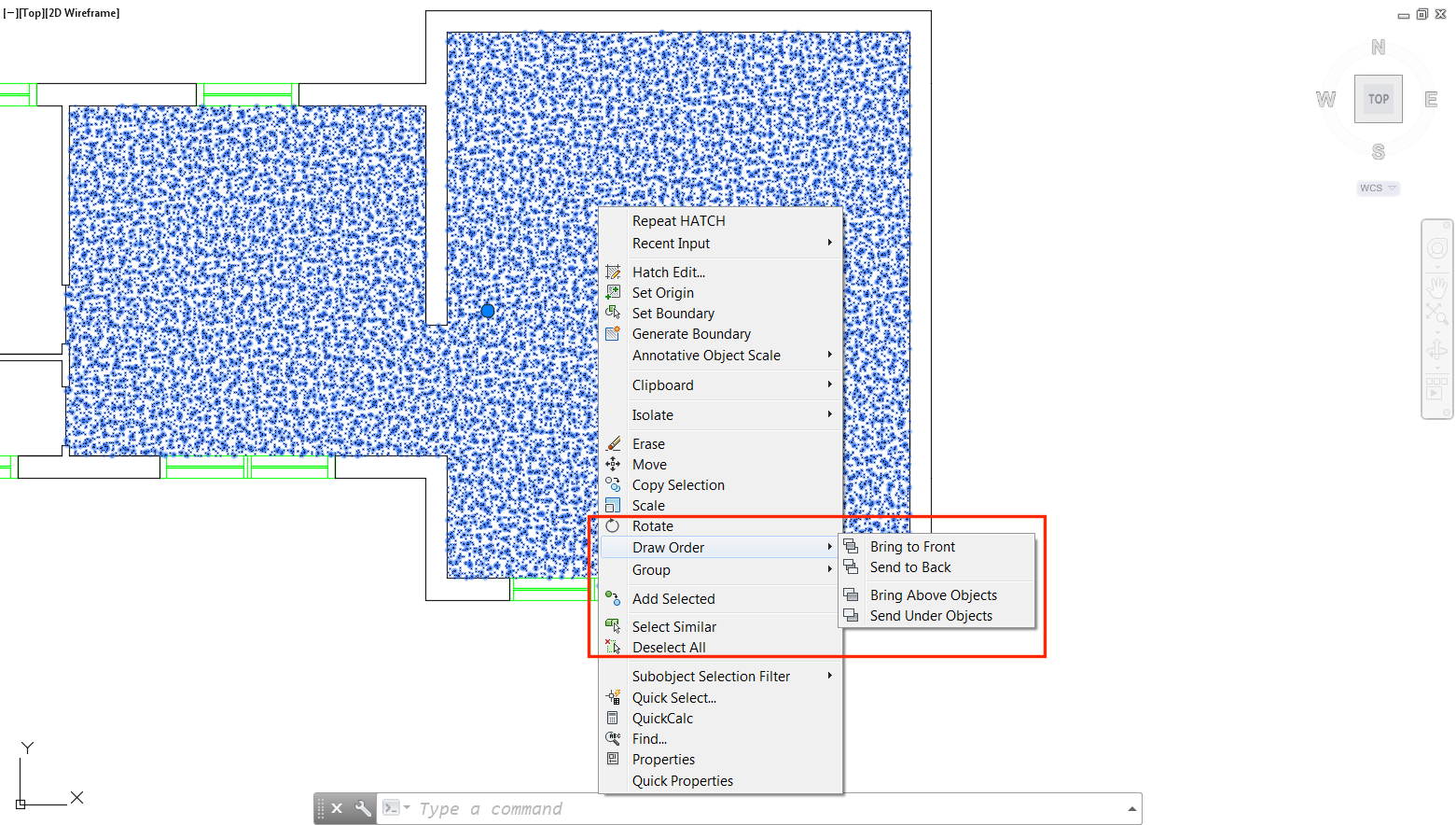

There are numerous steps we repeatedly take when adding hatch patterns to our drawings one of which is setting the draw order of hatches. Some users will relate to continually changing the draw order of hatches so that they appear at the back of the drawing:

AutoCAD Training Article - Ch 4 - Screenshot 30Rather than right-clicking and selecting “Send to Back”, did you know you could change the settings of hatches to have them always set to the back when added?

To do this type HPDRAWORDER↵. Enter a value of 1 to indicate that you always want the hatch to be sent to the back.

Tip 20 – Filling the Background of CAD Blocks

You may often create floor plans and other drawings that you would like to hatch but also add, for example, furniture blocks to. This creates the dilemma of hatches appearing behind furniture blocks in a way that reduces legibility and ruins the visible appearance of your drawing:

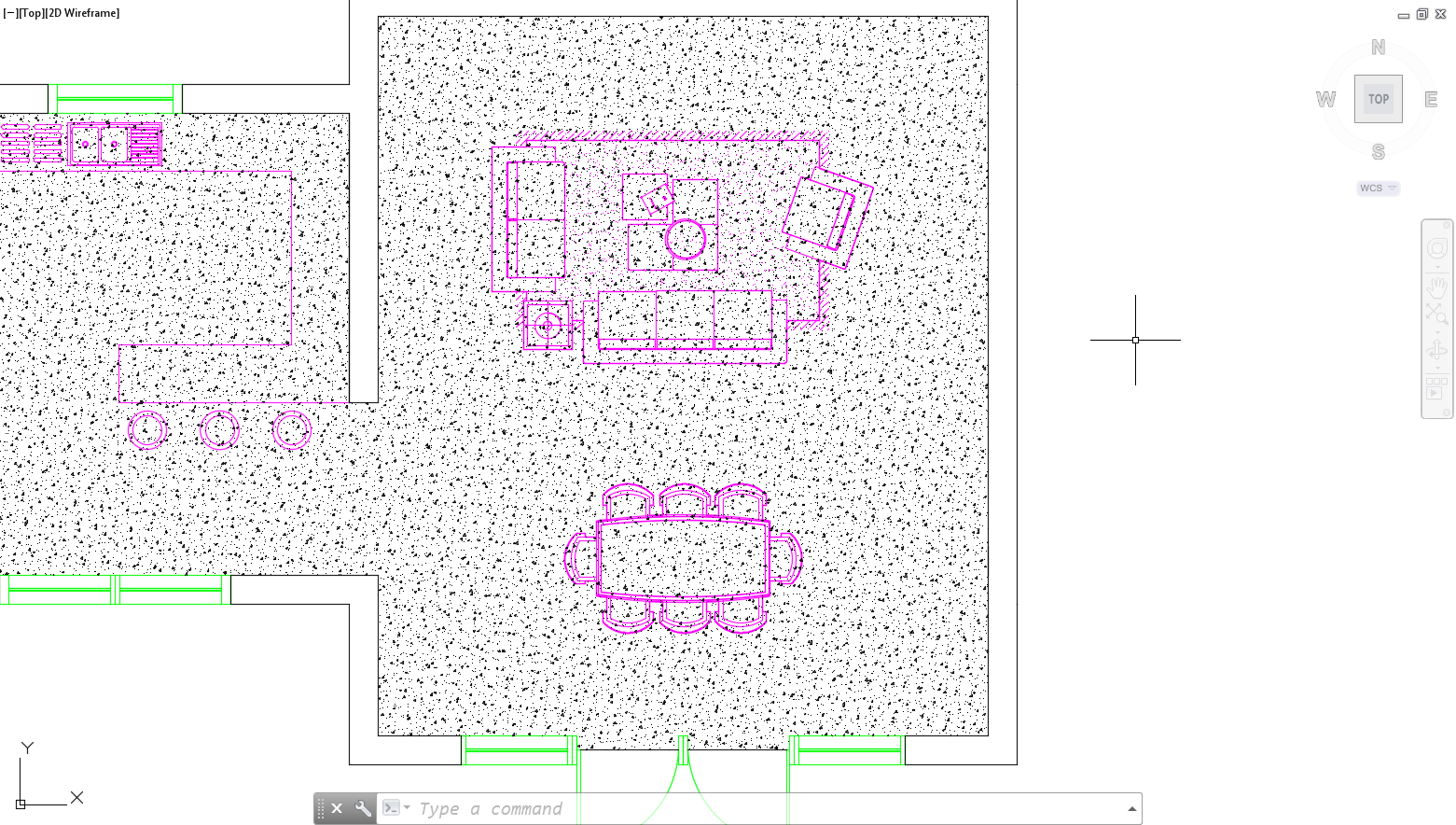

AutoCAD Training Article - Ch 4 - Screenshot 31

The solution here is to fill the background of the CAD block. This alone however can be tricky when CAD blocks are complex. One of the simplest ways is to do this is to use the boundary tool to your advantage.

First, open the block within the Block Editor, and next draw a closed line around the extent of your block:

AutoCAD Training Article - Ch 4 - Screenshot 32

With the closed line drawn. Type BOUNDARY↵, and make sure the type is set to “polyline”. Click an area between the block and the closed line. This will create a polyline around the CAD block. Feel free to delete the outer boundary edge this is no longer needed:

AutoCAD Training Article - Ch 4 - Screenshot 33

The block is most likely drawn on Layer 0. Place the newly created polyline on a different layer and turn off layer 0. You should now be left with only the outline of the block:

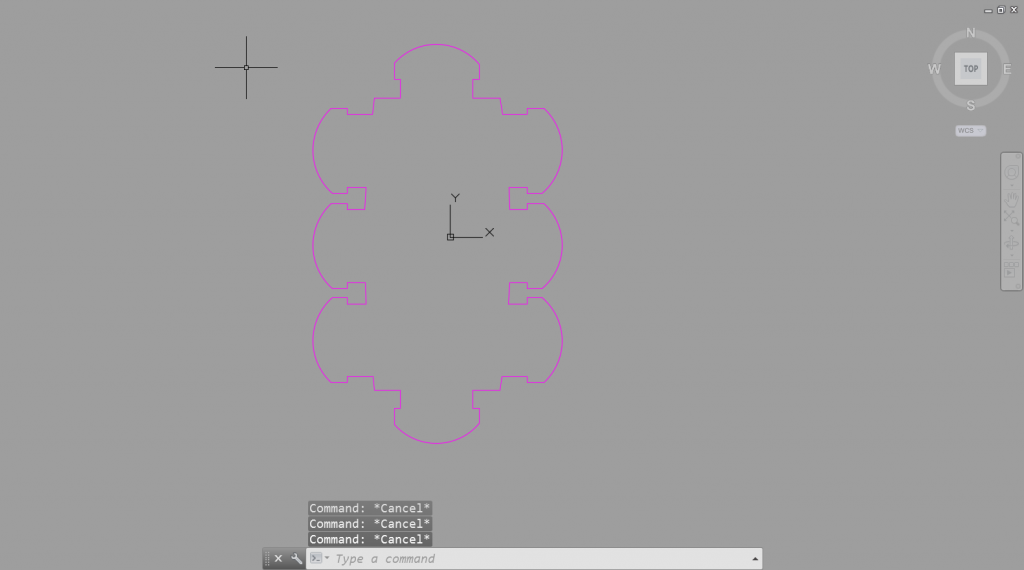

AutoCAD Training Article - Ch 4 - Screenshot 34

Apply a solid hatch to the inside of the polyline and colour this 255, 255, 255. This should appear perfectly white, and not be a noticeable off shade of white when printing.

Turn layer 0 back on, and delete the polyline you used to find the outline of the block:

AutoCAD Training Article - Ch 4 - Screenshot 35

The block should now have a background that you cannot visibly see through. If this is not the case, you may need to make sure the draw order of the hatch pattern is set to back.

Note: Using the hatch pattern to fill the background of blocks in this way is often more effective than using the wipeout tool. As wipeouts are known to contribute to problems when it comes to printing.



    FURTHER READING

HATCHING WITH SUPERHATCH: CADALYST VIDEO
HATCHING OPEN AREAS: CADGEEK ARTICLE
GENERAL HATCHING TUTORIAL: MY CAD SITE ARTICLE



    HATCHING RESOURCES

SIMPLECAD
CADHATCH
DOTSOFT

NEXT - Chapter 5 - Plotting

Introduction & Contents

Often the most frustrating aspect of AutoCAD that users find is when it comes to printing a drawing or exporting it to PDF. This chapter aims to establish how to set up a drawing successfully for plotting, using the Corner Drive project as an example.

SECTIONTIPS INCLUDED IN SECTION
Layout Views & Pages SizesTip 21 – Set Up Page Templates
Title Blocks & View PortsTip 22 – Use Fields to Auto Enter Title Block Information
Line Weights & Block StylesTip 23 – Set Line Colours using Plot Style Tables
Tip 24 – Load Plot Style Tables into Other Drawings

Layout Views & Page Sizes

When using AutoCAD, it is important to remember there are two working environments at your disposal. Including model space, and paper space. To get your drawing(s) out of AutoCAD, you are going to want to place them on a page. To do this it is recommended that you use paper space where you can set things to the defined paper size you wish to plot at.

In recent versions of AutoCAD paper space can be accessed by hovering over the window tab bar. The option of Layout 1 should already be available. An equally fitting name for Layout 1 could be Page 1, as each of the layout views you create generally represent different pages or sheets.

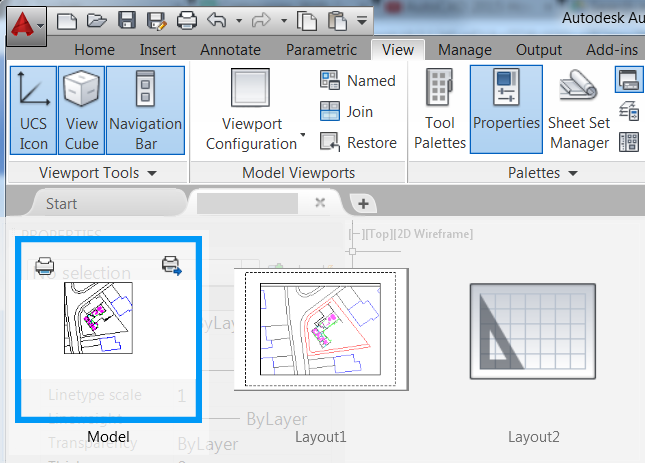

AutoCAD Training Article - Ch 5 - Screenshot 1

When you enter paper space, in this case, Layout 1, don’t worry if your drawing is not there are shown how you want it to display. The first thing you should look to do is set the paper size. To do this select Page Setup from the Layout panel of the Layout ribbon tab:

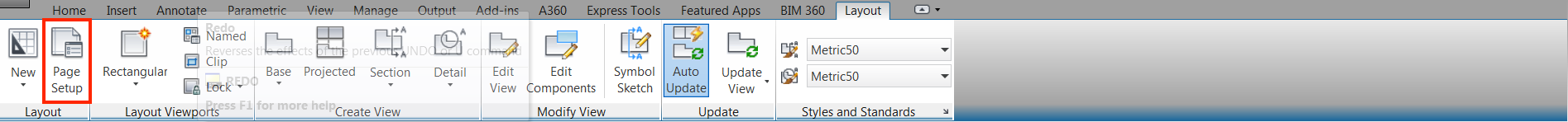

AutoCAD Training Article - Ch 5 - Screenshot 2

At this stage it is recommended that you create a new page setup. To do this click “New” within the Page Setup Manager dialogue:

AutoCAD Training Article - Ch 5 - Screenshot 3

Name the sheet as you see relevant. In this case, we are going to set up a page for print at A2 size, so we have called our page setup “A2 print”.

When you click OK, this will open the Page Set dialogue, and from here the desired paper size can be selected (A). Be sure to set the orientation to landscape or portrait depending on your requirements (B):

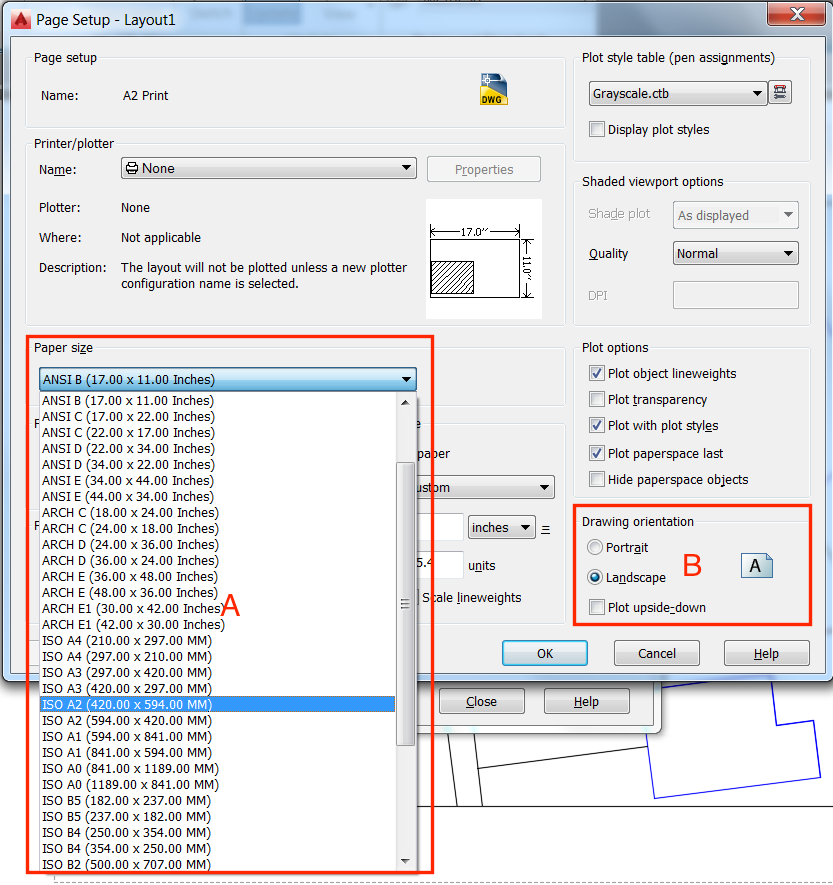

AutoCAD Training Article - Ch 5 - Screenshot 4

Once you click OK, the page the page setup will be saved and added to the Page Setup Manager Dialogue. Select your newly created page setup and click the “Set Current” option. You should notice the page size change:

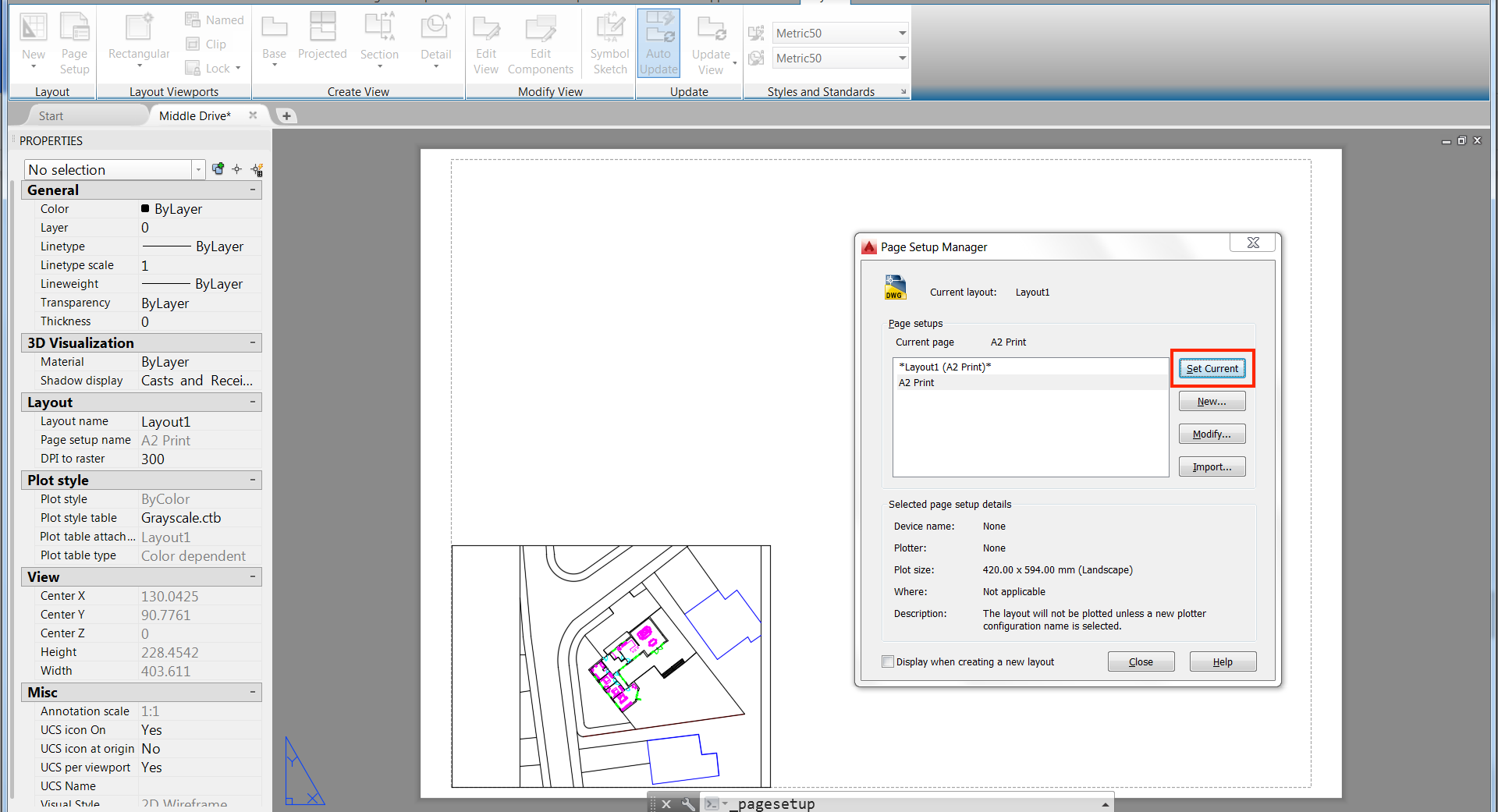

AutoCAD Training Article - Ch 5 - Screenshot 5

Tip 21 – Set up Page Templates



While you are within the Page Setup Manager, why not go ahead and create page setups for all of the printing sizes you intend to use in the future. In the AEC industry, this probably means all standard sizes from A3 to A0. Once you have created a page setup for each of them they can be quickly imported using the Import option, found within the Page Setup Manager.



FURTHER READING

GENERAL TUTORIAL MODEL SPACE AND PAPER SPACE: THAT CAD GIRL
PLOTTING TO SCALE: COURSESTUFF ARTICLE

Title Blocks & Viewports

Once you have your layout view set to the required page size, you will need to add a title block. Title blocks are essential in the AEC industry as they allow us to convey key pieces of information relating to the drawing.

To add a title block, you should have this already made within another file in .dwg format. Insert it by selecting “More options” from the Block panel of the Insert ribbon tab:

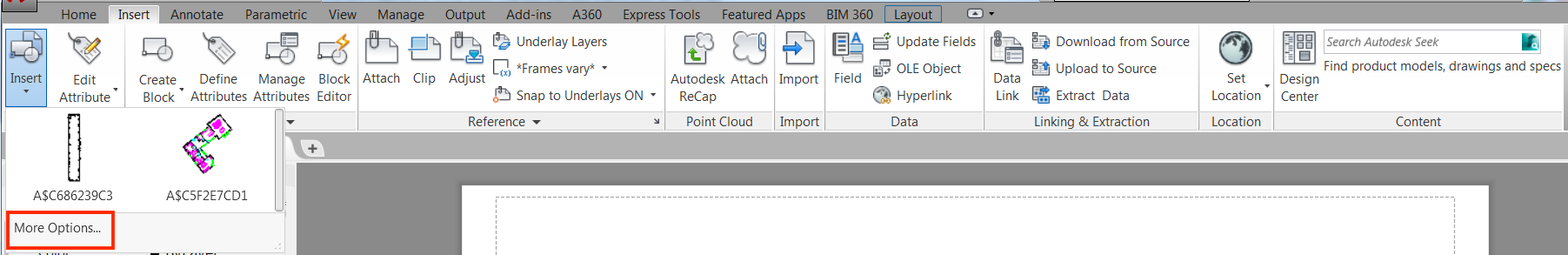

AutoCAD Training Article - Ch 5 - Screenshot 6

Alternatively enter the INSERT↵ command.

Navigate to the desired file from the resulting dialogue. You can choose to specify its insertion point within the Insert dialogue if you setup your title block ready to take this into consideration:

AutoCAD Training Article - Ch 5 - Screenshot 7

Check that your title block has been inserted correctly. Use the move, scale or stretch command as required until your title block looks just right:

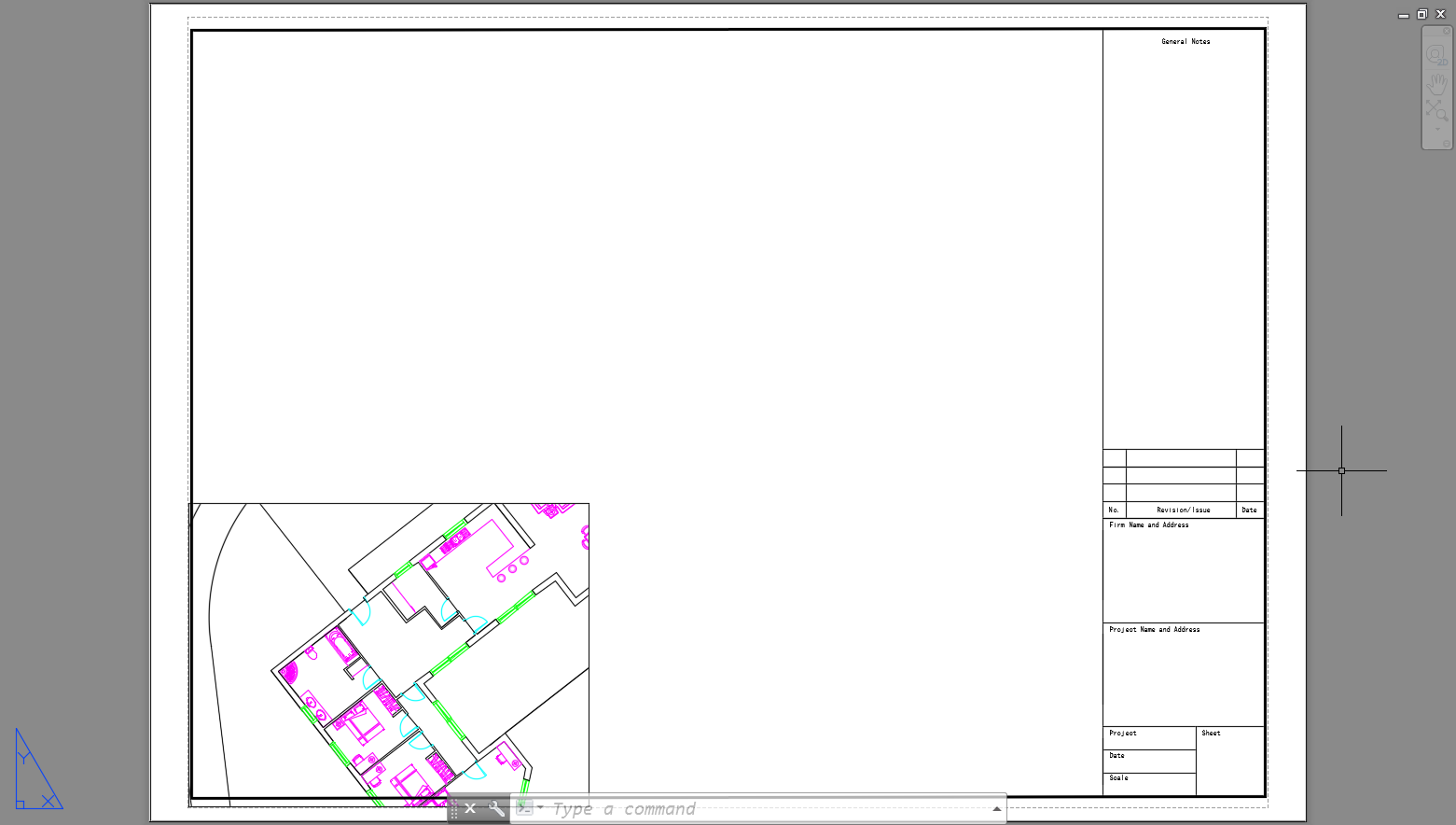

AutoCAD Training Article - Ch 5 - Screenshot 8

The next thing you are going to want to do is setup some viewports. These allow us to see into model space and place a chunk of it onto our newly created page layout. Edit the scale by double click entering the viewport and set the scale as required via the scale list:

AutoCAD Training Article - Ch 5 - Screenshot 9

Adjust the size of the viewports by stretching the nodes to the required size. In this case, we will use all of the paper space available within the title block to show the building and site of the Corner Drive project:

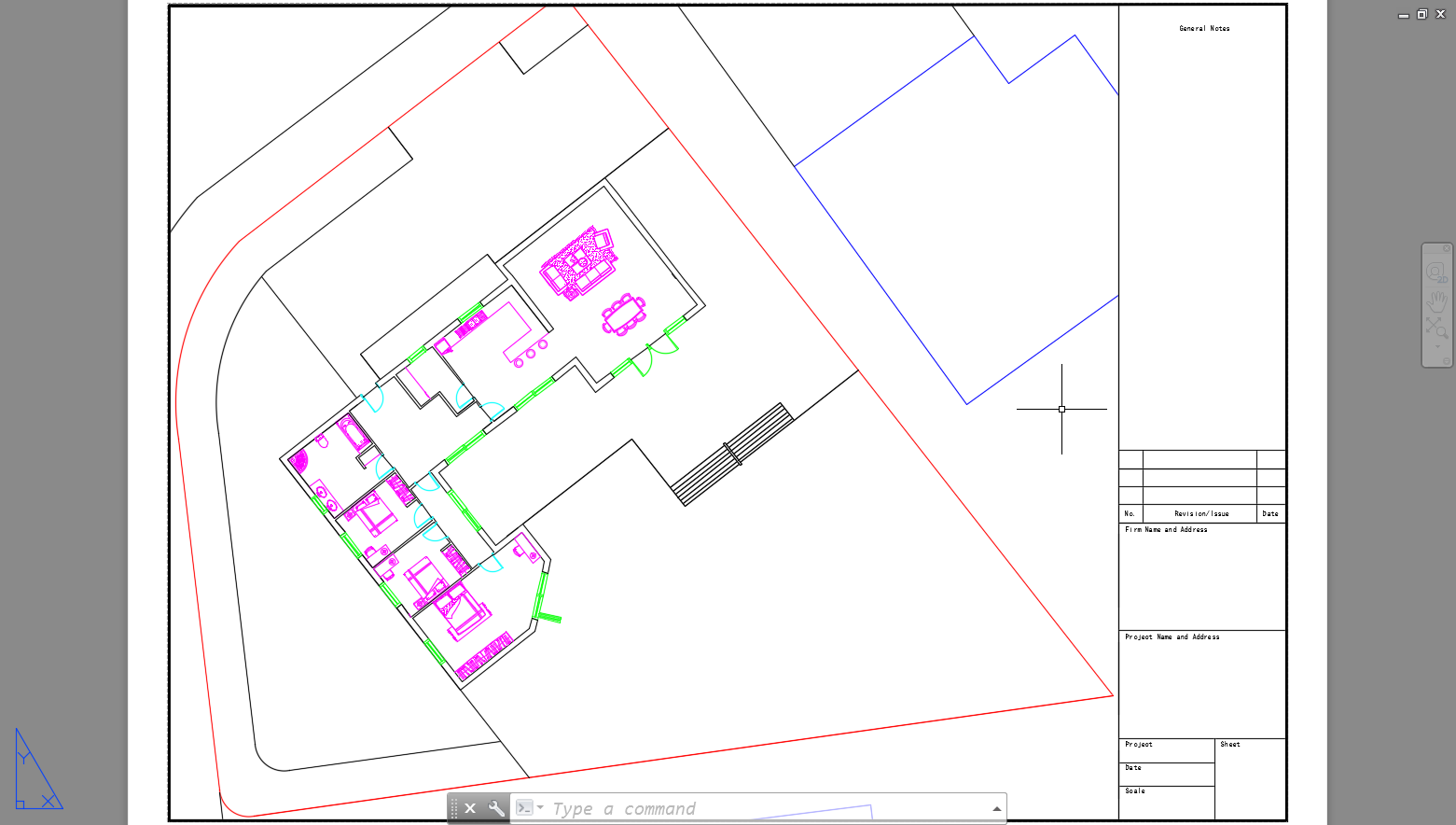

AutoCAD Training Article - Ch 5 - Screenshot 10



    Tip 22 – Use Fields to Auto Enter Title Block Information

One of the biggest chores after creating and placing the title block is entering title block information. Thankfully, and what many users may not know, is that AutoCAD can auto generate much of this information and place it accordingly for us.

Type the command FIELD↵, to explore some of the options available.



FURTHER READING

INSERTING A TITLE BLOCK: VIDEO FROM CAD INTENTIONS
CREATING A TITLE BLOCK: MICROGRAPHICS ARTICLE
CONTROLLING VIEWPORTS: ARTICLE FROM AUTOCAD ARCHITECTURE BLOG

Lineweights & Plot Styles

While you may think that once you have created a drawing and placed it nicely in a layout that you are ready to print. You would be wrong. Instead, you are going to want to start thinking about line weights if you have not already done so.

Lineweights are important in the architecture and engineering world as they can be used to make a drawing legible, and add a necessary hierarchy. They can, however, be quite a frustrating ordeal if we do not know how to set them for print.

Many users that try to set up lineweights within AutoCAD may be inclined to plumb directly for setting them up within the Properties Palette or Layer Properties Manager. Though this is not at all recommended. Instead, the most effective way to set up your line weights for print is to edit or create a plot style table.

To create a plot style table navigate to the print dialogue by entering Ctrl + P or by entering the command PRINT↵.

You have no doubt all accessed the print dialogue before, but may not have noticed in the upper right corner is the “Plot Style Table” section.

Click on the drop down menu contained within the Plot Style Table section and click “New”:

AutoCAD Training Article - Ch 5 - Screenshot 11

Alternatively, if you want to edit an existing plot style table, select the plot style you want to edit from the drop-down menu and click on the Edit button to the right of the drop down menu.

After you have clicked “New” the Add Colour Dependant Plot Style Wizard will open and present you with three options:

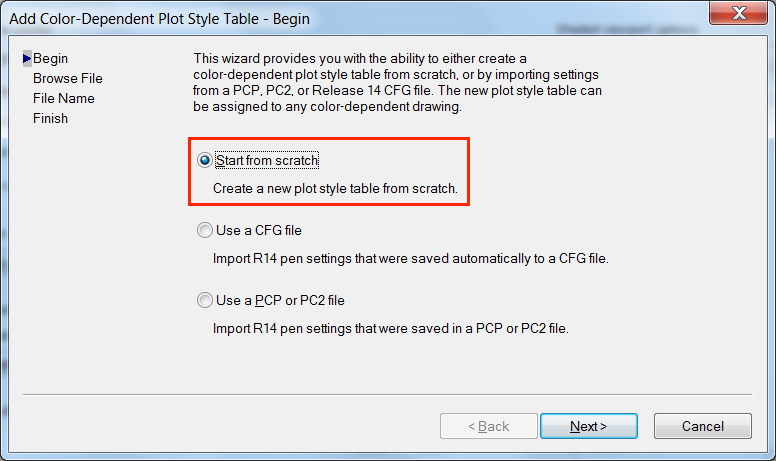

AutoCAD Training Article - Ch 5 - Screenshot 12

Click the “Start from scratch” option and give your plot style table an appropriate name as prompted on the step that follows.

In this example, we created a plot style from scratch using the file name “Architectural”. The last step of the wizard will offer you the opportunity to set your newly created plot style table as the default for future drawings or to set it as the plot style for the current drawing:

AutoCAD Training Article - Ch 5 - Screenshot 13

Note: this choice can be changed later so don’t feel the need to study the options available too much.

After clicking finished, you will have in turn created a new plot style table. Click on the Edit button to start setting the lineweights and plot style for each colour within your drawing:

AutoCAD Training Article - Ch 5 - Screenshot 14

You will notice that listed within the Plot Style Table Editor is all of the 255 standard line colours found within AutoCAD (A). You can begin changing line weights and other properties by clicking on the colour you wish to edit (B):

AutoCAD Training Article - Ch 5 - Screenshot 15

In the example project, Corner Drive, you may have noticed in previous chapters only a finite number of colours were used when setting up layers, and they ranged primarily from colours 1 to 10. This was so as to make plot styles easier to set up.

As colour 6 was used for the Furniture layer, we are probably going to want this to be a thin lightweight so as to make the finer details of the furniture objects legible. This can be done by adjusting the lineweight within the Plot Style Table Editor:

AutoCAD Training Article - Ch 5 - Screenshot 16

Note: By setting the lineweight within the Plot Style Table Editor you have overridden the object line weight as set up within the Properties Palette and Layer Properties Manager.


Tip 23 – Set Line Colours using Plot Style Tables

There is a whole host of properties that are needed when draughting with AutoCAD, but not ideal when it comes printing. These can all be overriding within the Plot Style Table Editor. For example, a property you are probably going to want to print differently to how it is displayed within AutoCAD is line colour.

AutoCAD offers the option of a Monochrome Plot Style, within the Plot Style Table section of the Print dialogue. To change line colour within one of the other standard plot style tables or a custom created plot style table, open the Style Table Editor and using the Shift key select all of the colours contained within the table (A):

AutoCAD Training Article - Ch 5 - Screenshot 17

Next, change the Colour option within the Properties section of the Plot Style Table Editor to Black (B).

This will change all of the selected plot styles to Black, when you print. Though it is likely that you may want some colour within your printed drawing. For example, standard practice dictates boundaries lines should be red.

As such consider setting colour 10 to “Red” or “Use object colour”. Remember though to make sure your boundary line layer is actually drawn using colour 10 or whichever colour you choose.

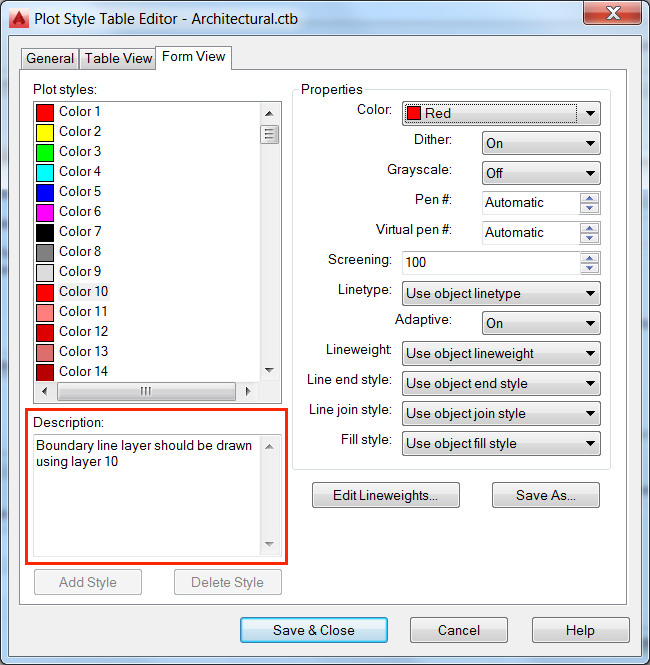

AutoCAD Training Article - Ch 5 - Screenshot 18

You may want to consider using the Description section of the Plot Style Table Editor, to remind you and others of the logic behind the Plot Style Table.

    Tip 24 – Load Plot Style Tables into Other Drawings

After you have been using AutoCAD for some time you probably will have perfected line weights and other plot styles. At this stage you may want to think about sharing them with others are want to access them quickly when working on other computers.
This becomes a straightforward task, because plot style tables are saved externally as .ctb files.

To access the .ctb file simply type the command PLOTTERMANAGER↵. This will open container folder of the “Plot Styles” folder within your local hard drive. From which you can access custom and default plot style tables:

AutoCAD Training Article - Ch 5 - Screenshot 19

Copy the .ctb file for later and add it to the Plot Styles folder of other computers you want to access it from.



FURTHER READING

GENERAL TUTORIAL ON LINE WEIGHTS AND PLOT STYLES: BEST CAD TIPS ARTICLE
AUTOCAD TUTORIAL: ABOUT LINEWEIGHTS
