Power BI: Linking Power BI to SQL Server

Microsoft Power BI as the name suggests is a Microsoft service for business analytics and data science, with interactive GUI capabilities. With Power BI, users can find useful insights from data obtained through various sources, without writing a single line of code. See here for details of our Power BI courses in London.

Power BI (all licences) supports a variety of data sources such as Blank Queries, Flat Files, SQL Server Database, OData Feed, Azure Cloud Platform etc. In this article, you will see how to connect to Power BI Desktop with SQL Server Database source, in order to import and visualize data stored in SQL Server. See this article for details on importing data into Power BI from Excel and Access.

In this article where you see text with an orange background that is a snippet of code.

Creating a Dummy Dataset

In this section, a dummy dataset will be created in SQL Server. In the next section, you will see how to connect Power BI with SQL Server and then import the dummy dataset into Power BI. We will create a simple database for a fictional book store. The name of the database will be BookStore. The following script creates our database:

CREATE DATABASE BookStore

The database will contain three tables: Books, Categories and Authors. The following script creates the Books table:

USE BookStore
CREATE TABLE Books
(
Id INT PRIMARY KEY IDENTITY(1,1),
Name VARCHAR (50) NOT NULL,
Price INT,
CategoryId INT,
AuthorId INT
)

The Books table contains four columns: Id, Name, Price CategoryId, and AuthorId.

Similarly, execute the following script to create the Categories and Authors tables:

USE BookStore
CREATE TABLE Categories
(
Id INT PRIMARY KEY,
Name VARCHAR (50) NOT NULL,
)

Let’s now insert a few dummy records in the Categories table.

INSERT INTO Categories
VALUES (1, ‘Cat-A’),
(2, ‘Cat-B’),
(3, ‘Cat-C’),
(7, ‘Cat-D’),
(8, ‘Cat-E’),
(4, ‘Cat-F’),
(10,’Cat-G’),
(12,’Cat-H’),
(6, ‘Cat-I’)

Similarly, run the following script to insert records in the Authors table.

INSERT INTO Authors
VALUES (1, ‘Author-A’),
(2, ‘Author-B’),
(3, ‘Author-C’),
(10, ‘Author-D’),
(12, ‘Author-E’)

Finally, to add dummy records in the Books table, run the following script.

Note: Since the Id column of the Books has Identity property, we do not need to specify the value for the Id column.

INSERT INTO Books
VALUES ( ‘Book-A’, 100, 1, 2),
( ‘Book-B’, 200, 2, 2),
( ‘Book-C’, 150, 3, 2),
( ‘Book-D’, 100, 3,1),
( ‘Book-E’, 200, 3,1),
( ‘Book-F’, 150, 4,1),
( ‘Book-G’, 100, 5,5),
( ‘Book-H’, 200, 5,6),
(‘Book-I’, 150, 7,8)



Connecting Power BI with SQL Server

We have created a dummy dataset; the next step is to connect Power BI with SQL Server and then import the BookStore dataset into Power BI.

Downloading and Installing Power BI

If you already have PowerBI installed on your system, you can skip this step. Else go to this link:

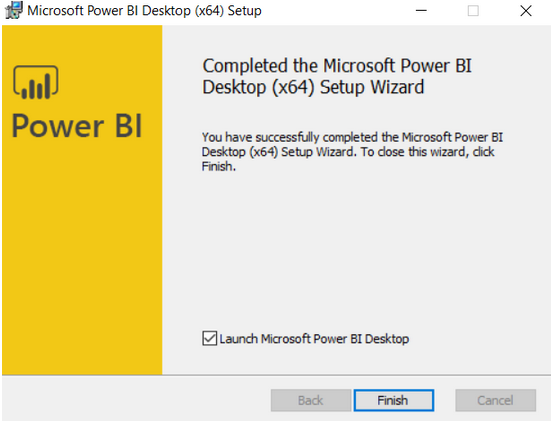

https://www.microsoft.com/en-us/download/details.aspx?id=58494 , and download executable file for Power BI according to your platform. Run the executable file to install desktop version of Power BI. The installation process extremely, you just have to click “Next” on all the dialogue boxes that appear. Once the installation is complete, you should see the following window:

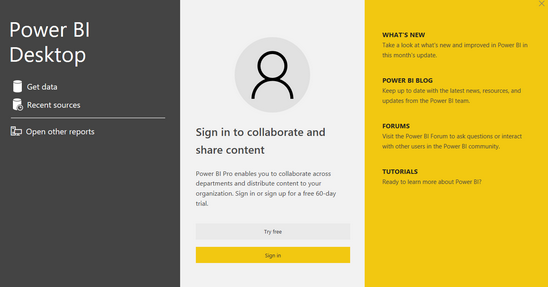

Click on the Finish button to complete the installation. Once Power BI is installed, you will need to sign in to Power BI Desktop, using your Microsoft Account.  The Sign in/ Sign up window looks like this:
Screenshot of Power BI Sign in Window

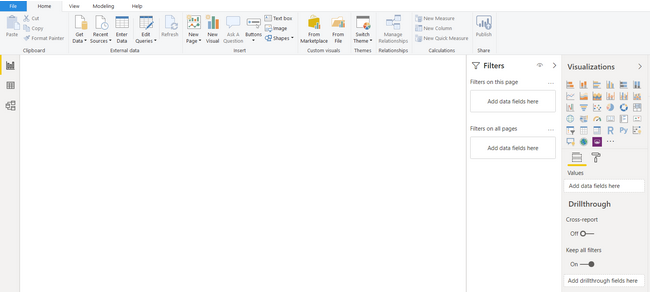

If you have not setup your Microsoft account Power BI gives you an option to signup for then Microsoft account.  Once you create your Microsoft account and login to Power BI desktop, you should see the following dashboard:

Screenshot of Power BI UI once logged in

Connecting Power BI Desktop to SQL Server

Connect Power BI to SQL Server basically refers to importing dataset from an SQL Server database to Power BI. To do so, you have to follow these steps:

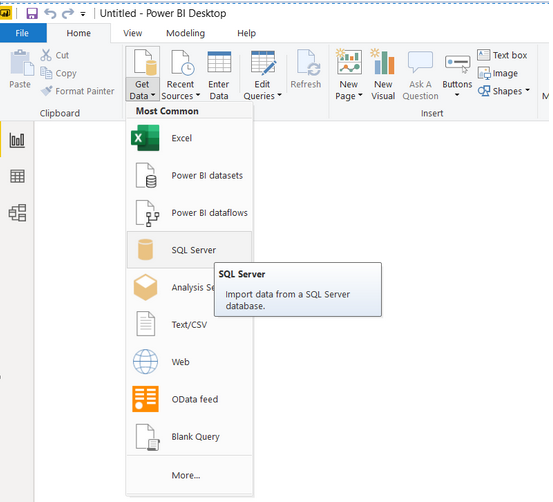

1. From the top menu, click on the “Get Data” option. A drop-down list will appear displaying all the available data sources for Power BI as shown in the following screenshot.

Screenshot of Selecting Get Data Option

From the above figure, you can see that there are lot of different options for importing datasets depending upon the data source. We want to connect to SQL Server and fetch data from a SQL Server database, therefore click on SQL Server option from the above drop-down list.

2. You should see the following dialogue box.

Login For SQL Server Connection To Power BI

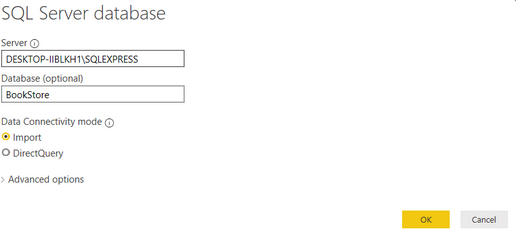

Enter the name of the Server and the Database name that you want to access. Enter your server name in the Server field and in the Database field, enter “BookStore” i.e. the dataset that we created earlier. If you do not specify the database name, all the databases on your server will be loaded. Click OK button. If the connection is established successfully, you should see the following window:

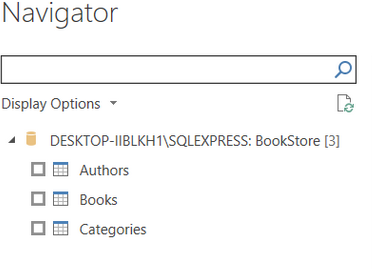

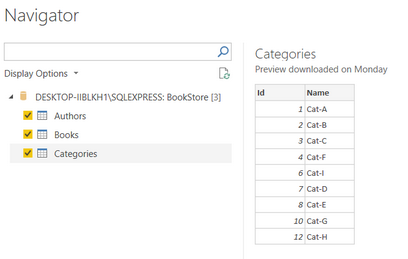

3. Here you can select and load the tables you want by simply clicking the checkboxes. Click the “Load” button to load the dataset into Power BI. Look at the following screenshot for reference.

Screenshot if SQL connection has been successful

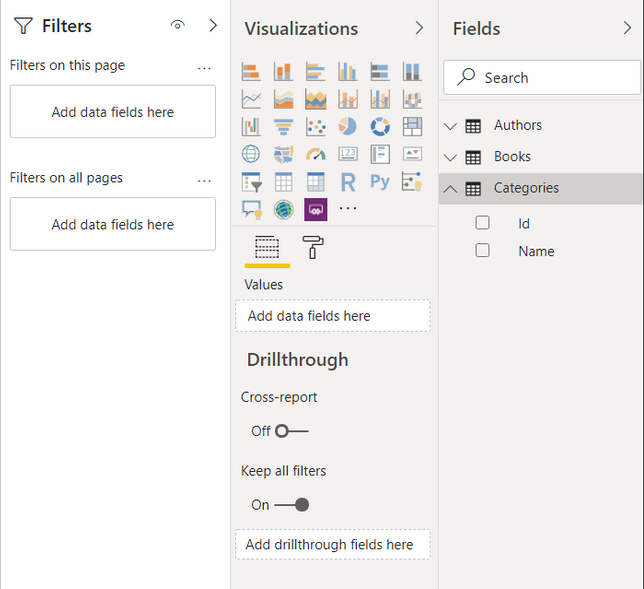

4. Once the database tables are loaded, you will be able to see them on the right-hand side of the screen. You can select any categories from table names. For instance, we select the id and name columns from the Books table as shown below:

Setting up filters for SQL data

5. Finally, from the visualization tab, you can select the type of plot that you want to plot against the selected columns of the books table. For instance, if you select the stacked column chart, you will see the following graph.

You can see the bar plot for book names against their prices.

Example Graph From SQL Data

Connecting Power BI to SQL Server Via SQL Queries

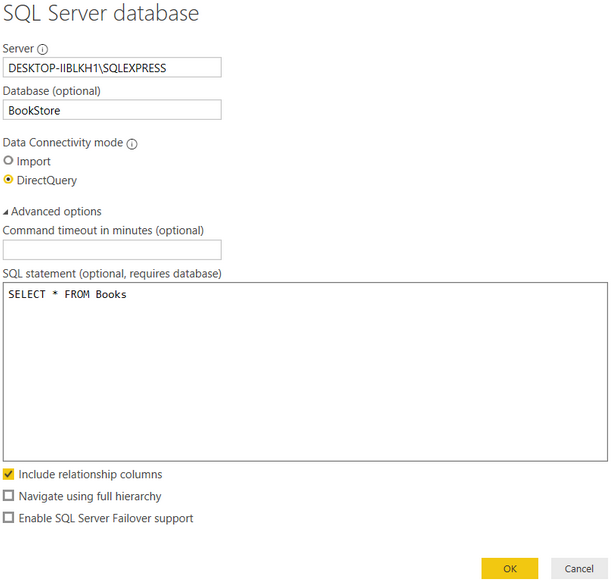

You can also execute SQL queries in Power BI to retrieve the data that you want from SQL Server databases. To do so, while connecting to SQL Server database, go to “Advanced Options” and then type your query in the query window. For instance, the following query selects all the records from the Books table of the BookStore database.

Connection to SQL Server Using SQL Queries

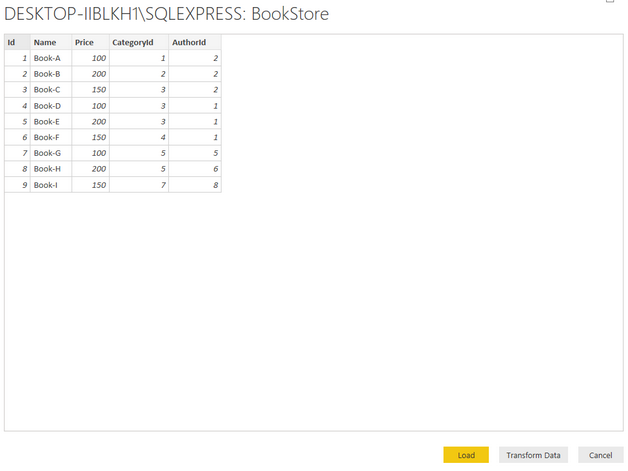

In the output, you will see all the records from the Books table as shown below.

Screenshot showing records in Books table

You can click the “Load” button to load these records into Power BI.



Conclusion

Microsoft Power BI is a data visualization and analytics tool that receive input data from various data sources such as SQL Server, Flat File, OData Feed etc. In this article, you saw how to connect Power BI with SQL Server and load data from SQL Server into Power BI. You also saw how to use SQL Queries in Power BI to retrieve filtered data.
